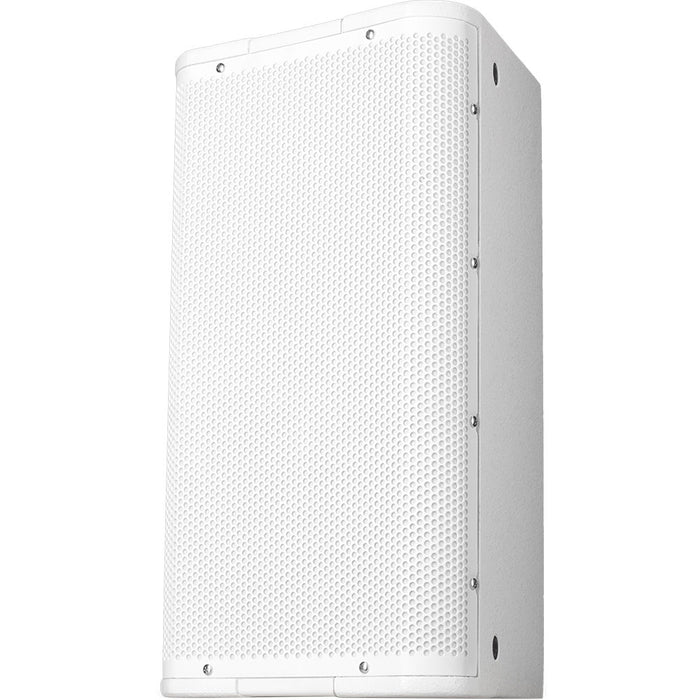

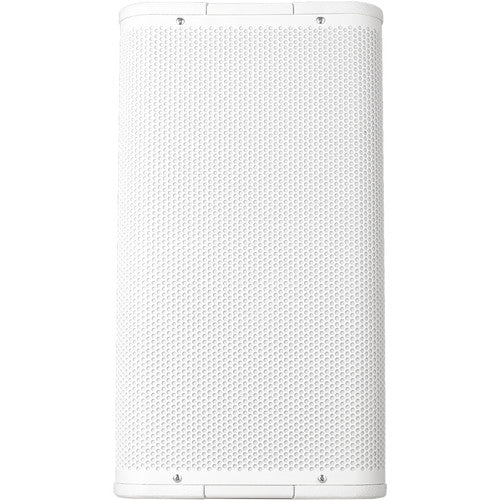

QSC AcousticPerformance AP-5102-W high-power 10-inch two-way loudspeaker with 105° conical coverage

QSC AcousticPerformance™ AP-5102-W High-Power 10-Inch Two-Way Loudspeaker

by Q-SYS
Availability:
In stock 3-5 days
$2,820.90 - $2,820.90
$2,820.90
$2,820.90 - $2,820.90
$2,820.90

SKU: AP-5102-W

The QSC AcousticPerformance™ AP-5102-W is a professional-grade, high-power, two-way loudspeaker engineered for a wide range of installed sound reinforcement applications. Featuring a 10-inch low-frequency driver and a 3-inch diaphragm compression high-frequency driver, this loudspeaker delivers exceptional full-range audio reproduction. Its sleek design and robust construction make it suitable for venues requiring both aesthetic appeal and superior sound quality.

The Key Features of the QSC AcousticPerformance™ AP-5102-W:

  • Directivity Matched Transition® (DMT): Ensures smooth, coherent power response across the listening area with a 105° conical coverage pattern.
  • High-Frequency Performance: Equipped with a 3-inch diaphragm compression driver for clear and powerful high-frequency output.
  • Flexible Deployment Options: Incorporates M10 fittings and yoke mount fittings, allowing for versatile installation configurations.
  • Robust Enclosure: Constructed from 15-ply Baltic birch plywood with a 16-gauge powder-coated steel grille, ensuring durability and longevity.
  • Bi-Amp/Passive Switchable: Offers the flexibility to operate in passive mode to minimize amplifier channel count or in bi-amplified mode for enhanced control and performance.

The Detailed Specifications for the QSC AcousticPerformance™ AP-5102-W:

  • Frequency Response (-10 dB): 60 Hz – 18 kHz
  • Rated Noise Power / Voltage: 450 watts / 54 volts RMS
  • Broadband Sensitivity: 94 dB SPL
  • Coverage Angle: 105° conical DMT™
  • Directivity Factor (Q): 4.6
  • Directivity Index (DI): 6.6
  • Recommended Crossover: 950 Hz, 48 dB/octave
  • Maximum SPL at 1 m (Passive): 121 dB continuous, 127 dB peak
  • Rated Impedance: 8Ω
  • High-Frequency Transducer: 3-inch (76 mm) voice coil compression driver; 72 W / 24 V (2 hours)
  • Low-Frequency Transducer: 10-inch (254 mm) driver with 3-inch (76 mm) voice coil; 450 W / 54 V (2 hours)

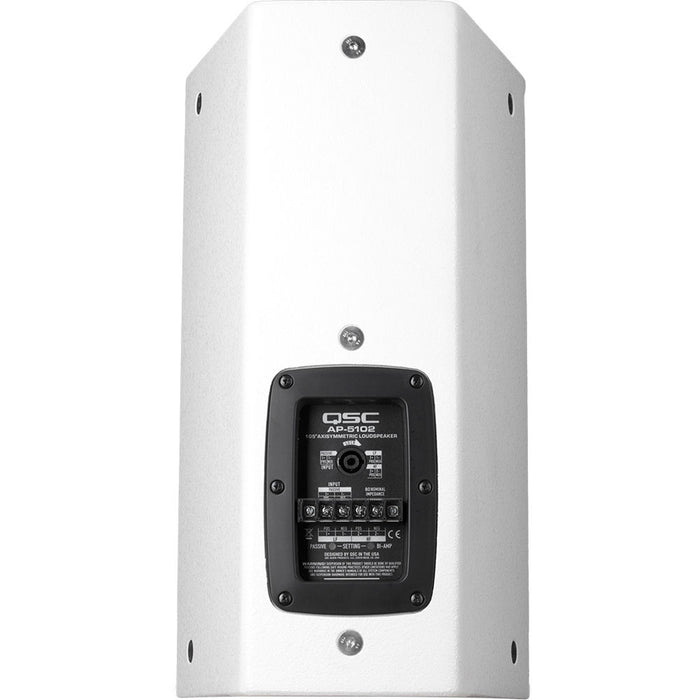

  • Input Connectors: Covered barrier strip, NL4 connector
  • Enclosure Material: 15-ply Baltic birch plywood
  • Attachment Points: Fifteen M10 threaded inserts
  • Color Options: Black (RAL 9011), White (RAL 9010)
  • Grille: 16-gauge powder-coated steel
  • Dimensions (HWD): 22 × 12 × 10.5 inches (559 × 305 × 267 mm)
  • Net Weight: 48 lb (21.7 kg)
