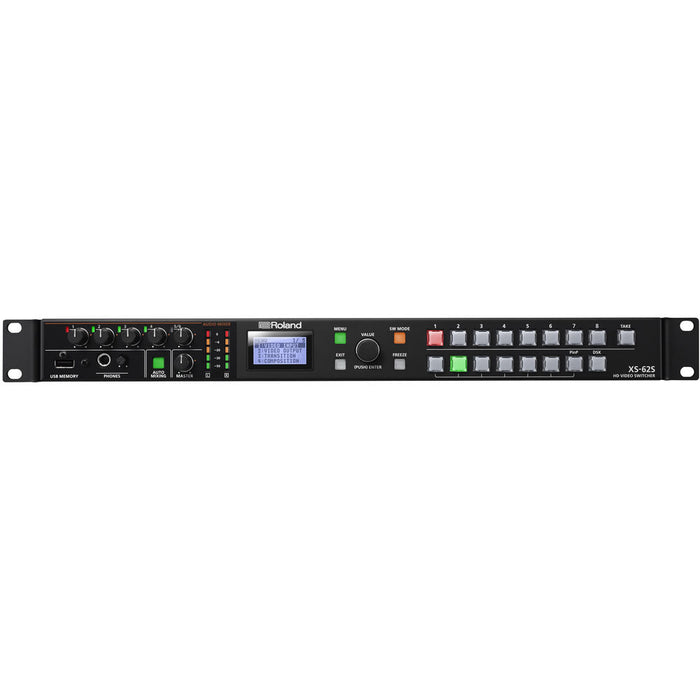

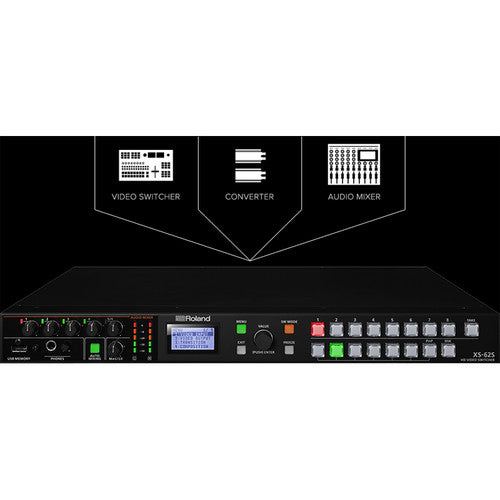

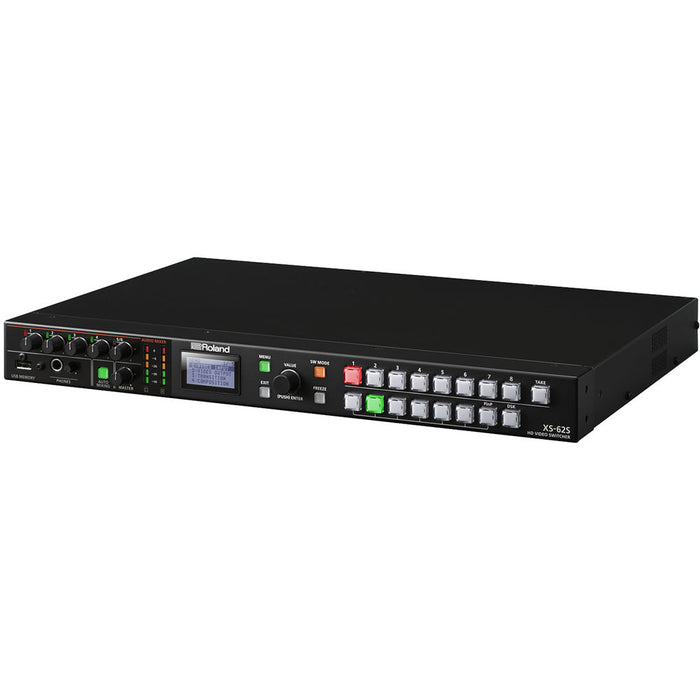

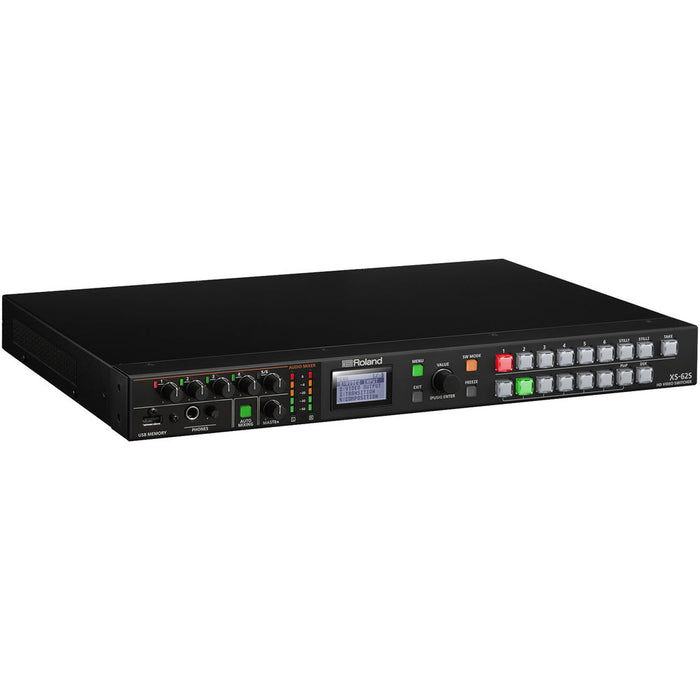

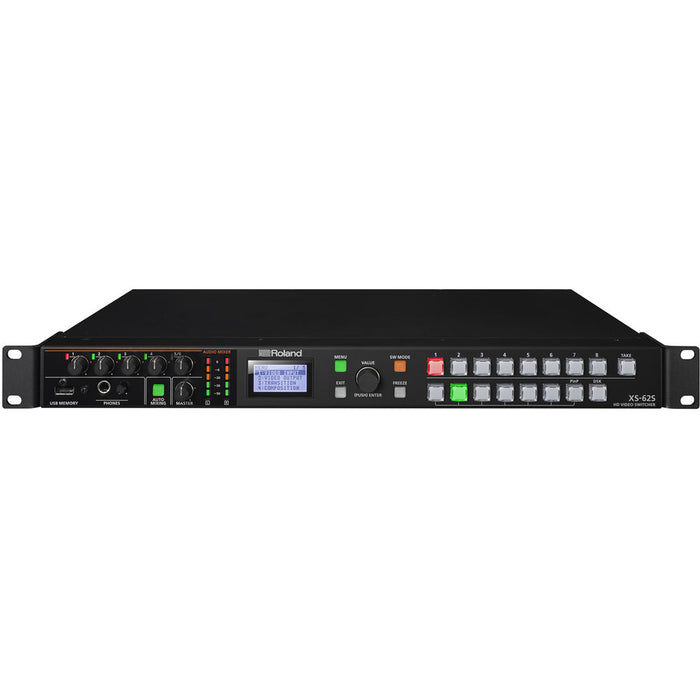

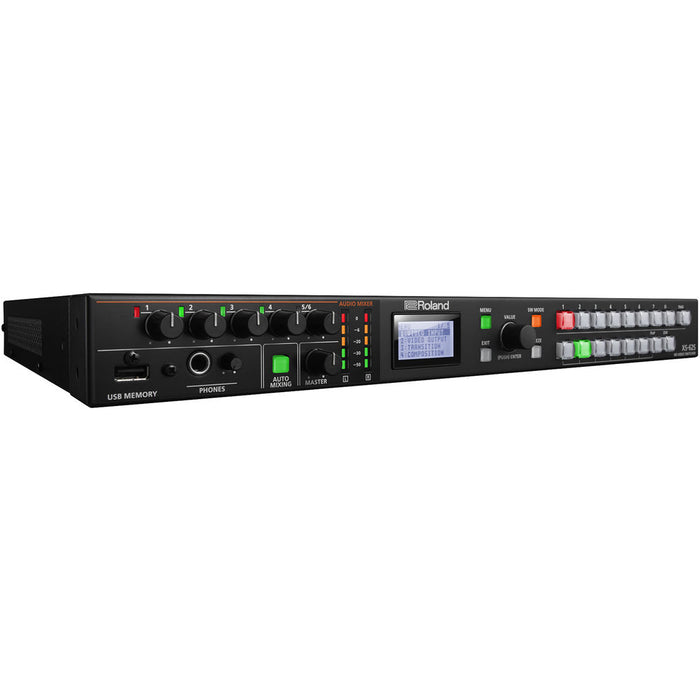

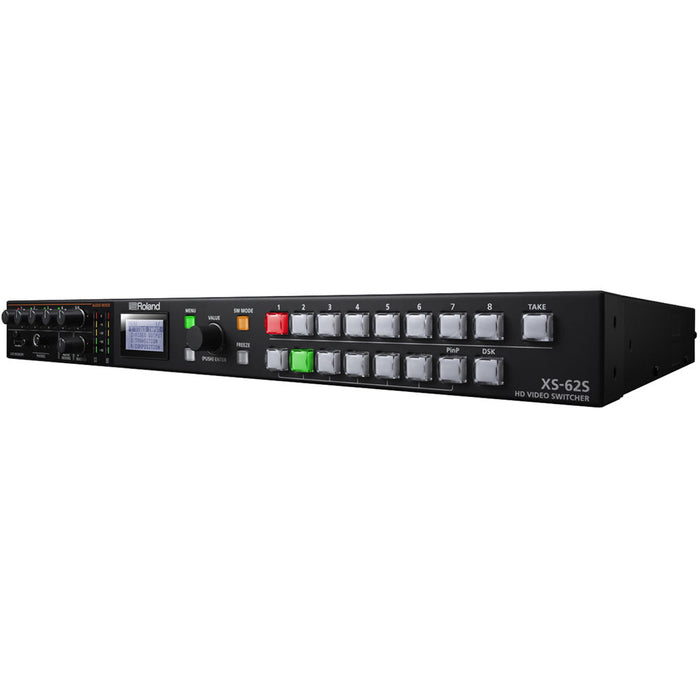

The Roland XS-62S is a professional-grade 1-rack-unit (1RU) HD video switcher designed for demanding live production and installation environments. It integrates six fully-featured video inputs (covering SDI, HDMI and analog RGB/component/composite), a high-performance 18-channel audio mixer, and built-in control for PTZ (pan/tilt/zoom) cameras. Its compact rackmount chassis and flexible connectivity make it ideal for venues such as corporate AV installations, houses of worship, e-learning studios, live event rigs and streamed productions. The front-panel interface is complemented by software control for Mac and Windows, allowing easy preset recall for camera positions, audio routing and complex video switcher modes. With support for PGM/PST, Dissolve and Matrix modes, the XS-62S adapts to a range of workflows—from single-output program switching to multi-destination feeds. Advanced audio features including auto-mixing, embedding/de-embedding of audio and full dynamics (EQ, gate, compressor) enable professional sound integration without requiring a separate audio console. Meanwhile, PTZ camera support via VISCA and LAN enables streamlined multi-camera setups with minimal staffing. Overall, the XS-62S offers an elegant, high-performance solution for live production teams seeking consolidation of video switching, audio mixing and PTZ control in a single rackmount unit.
The Key Features of the Roland XS-62S:

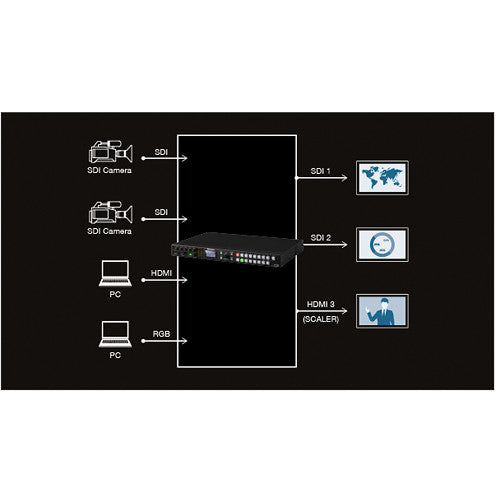

- Six video inputs supporting 4× 3G-SDI, 2× HDMI, and analog RGB/component/composite sources.
- Multiple outputs including SDI, HDMI, and a dedicated multi-view HDMI port for real-time monitoring.
- Three operational modes: PGM/PST, Dissolve, and Matrix for flexible routing and transitions.

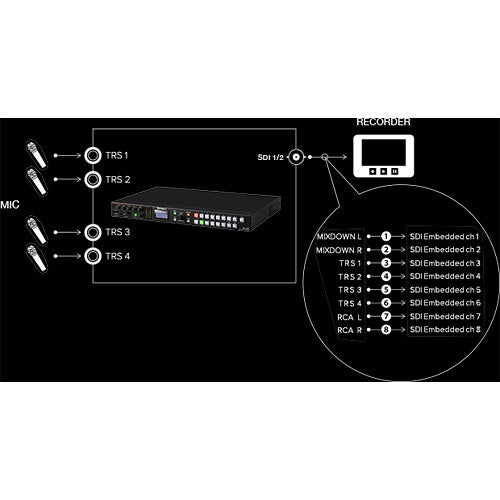

- 18-channel integrated audio mixer with mic/line, RCA, and embedded audio inputs.

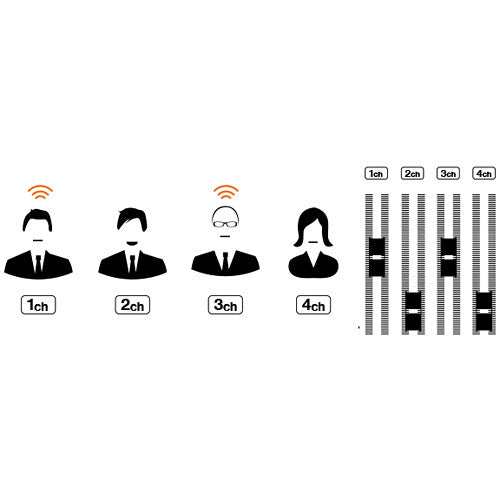

- Advanced audio processing with EQ, compressor, gate, delay, and auto-mixing functions.
- Audio-follows-video capability for synchronized sound switching.

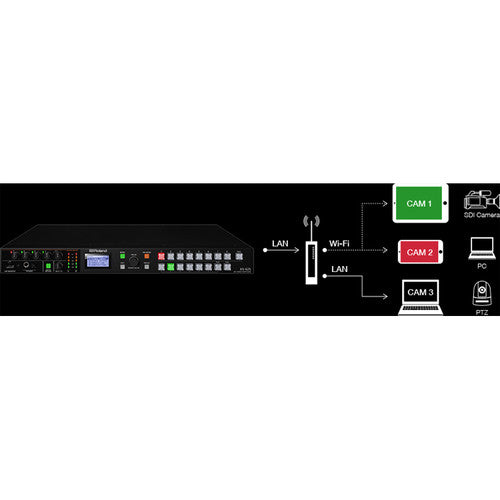

- Built-in PTZ camera control via VISCA and LAN with programmable presets.

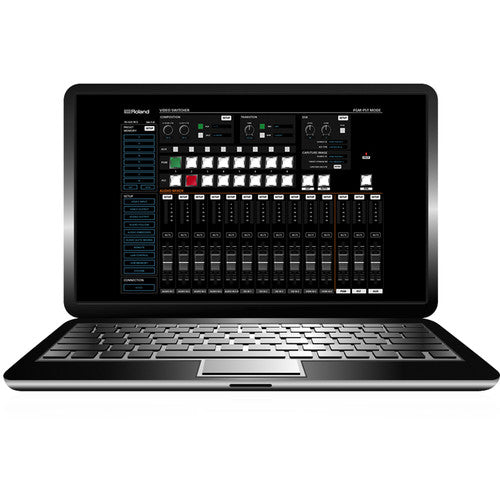

- Remote operation through LAN, RS-232, USB-MIDI, or control software for Mac and Windows.
- Compact 1RU rackmount chassis for space-efficient installation.
- Ideal for live streaming, hybrid events, corporate AV, and multi-camera productions.
The Detailed Specifications for the Roland XS-62S:
- Model: Roland XS-62S
- Form Factor: 1RU rackmount chassis

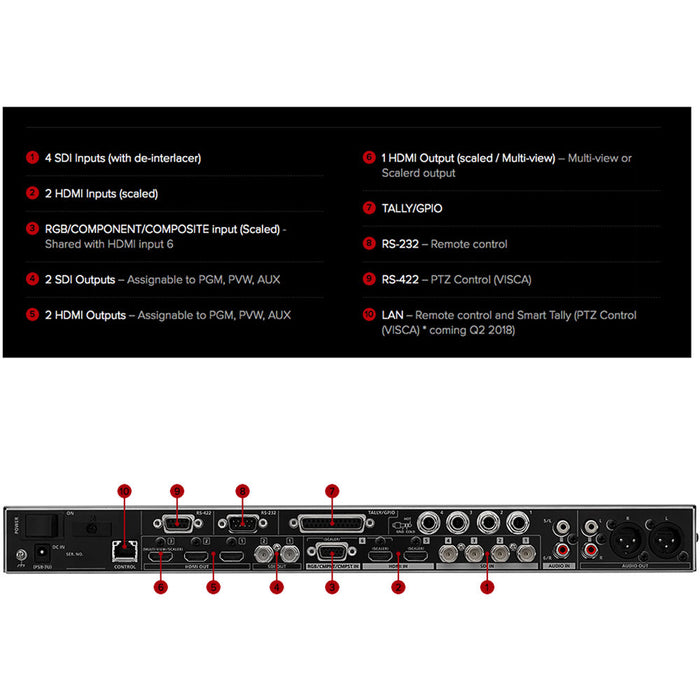

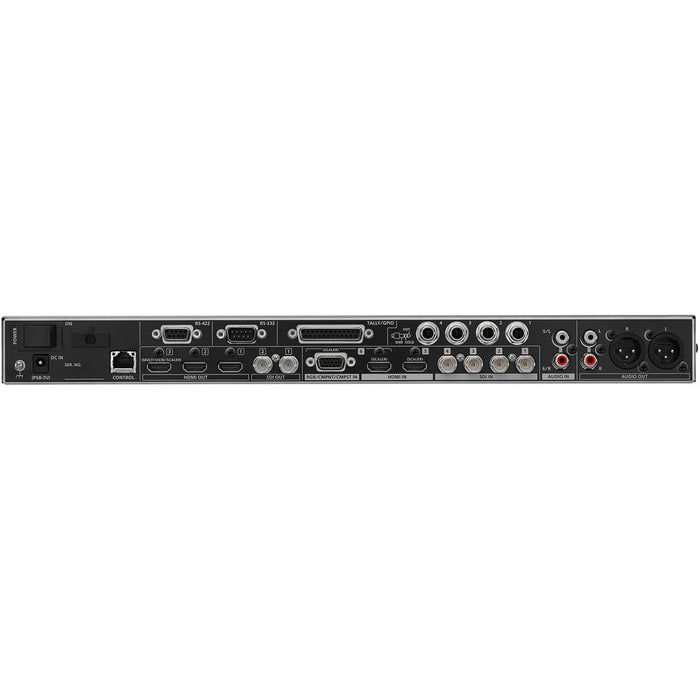

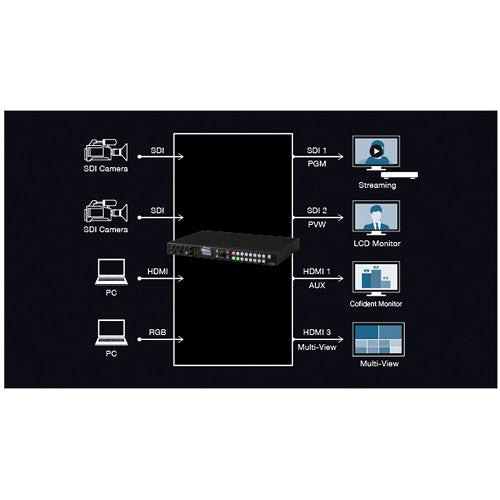

- Video Inputs: 4 × 3G-SDI, 2 × HDMI, 1 × HD DB-15 (RGB/component/composite)
- Video Outputs: 2 × SDI, 2 × HDMI, 1 × HDMI (Multi-View)
- Supported Resolutions: Up to 1080p @ 60 Hz
- Audio Mixer: 18 channels (4 × TRS mic/line, 1 × RCA stereo, embedded audio)
- Audio Processing: High-pass filter, gate, compressor, 3-band EQ, delay, auto-mixing

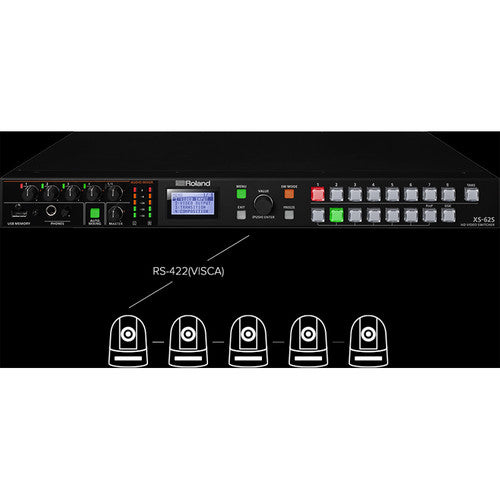

- PTZ Control: VISCA over RS-422 and LAN; supports position presets
- Control Interfaces: RS-232, LAN, USB-MIDI, and software remote control
- Switching Modes: PGM/PST, Dissolve, Matrix
- Multi-View Display: HDMI output showing all inputs, stills, and PGM/PVW
- Still Image Memory: Two internal stills
- Dimensions (W × D × H): 481 × 333 × 44 mm
- Weight: Approx. 3.6 kg
- Power Consumption: Approx. 31 W
- Operating Temperature: 0 °C – 40 °C (32 °F – 104 °F)
- Included Accessories: AC adaptor, power cord, rubber feet, owner’s manual
