Roland V-1HD HD Video Switcher – 4-Channel HDMI

by Roland
Availability:
In stock 3-5 days
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU:  V-1HD

  • Overview
  • Features
  • Specifications

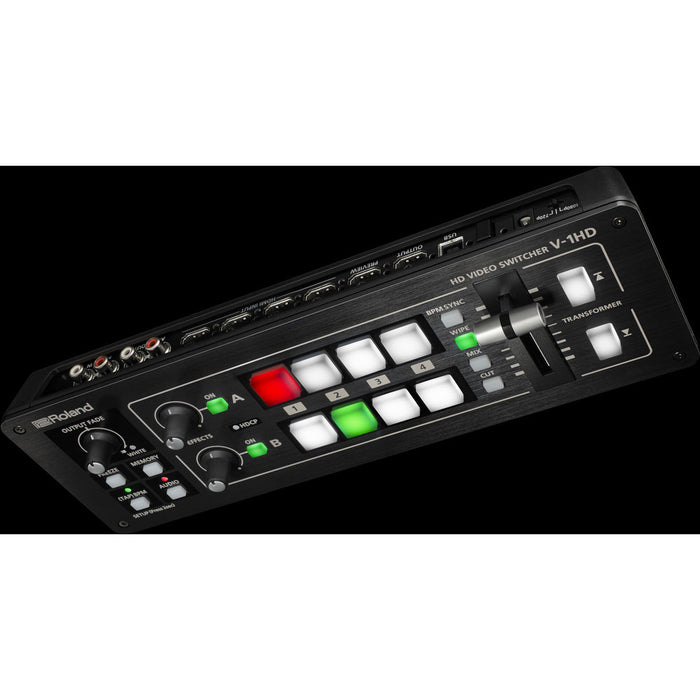

The Roland V‑1HD HD Video Switcher is a compact, professional-grade live video switcher designed to handle multiple HDMI sources with ease. Featuring four HDMI inputs, support for up to Full HD 1080p resolution, and intuitive hardware controls (buttons and T-fader), it enables seamless switching between cameras, computers, tablets, Blu-ray players and other HDMI devices. It’s ideal for live events, presentations, houses of worship, webcasting, and training setups where simplicity and reliability matter.

Beyond simply switching video inputs, the V-1HD includes a full 12-channel digital audio mixer (embedded HDMI audio plus analog sources) and a versatile effects engine that enables picture-in-picture, split-screen, keying (chroma/luminance), and transitions. With dual HDMI outputs (program and preview/multiview) and remote control via USB or MIDI, this unit offers powerful functionality in a portable form-factor. Whether you’re running a one-person show or supporting a small production team, the V-1HD delivers flexible live-video control without the complexity of large broadcast switchers.

The Key Features of the Roland V-1HD HD Video Switcher:

  • Four HDMI inputs supporting up to Full HD (1080p) sources
  • Dual HDMI outputs (Program + Preview/Multiview) for monitoring and output flexibility
  • Built-in 12-channel digital audio mixer to de-embed and re-embed HDMI audio and mix analog sources

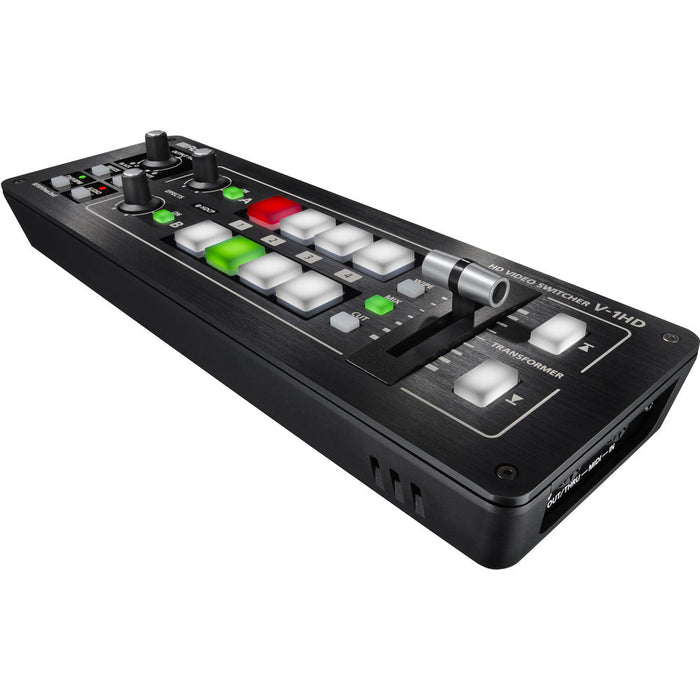

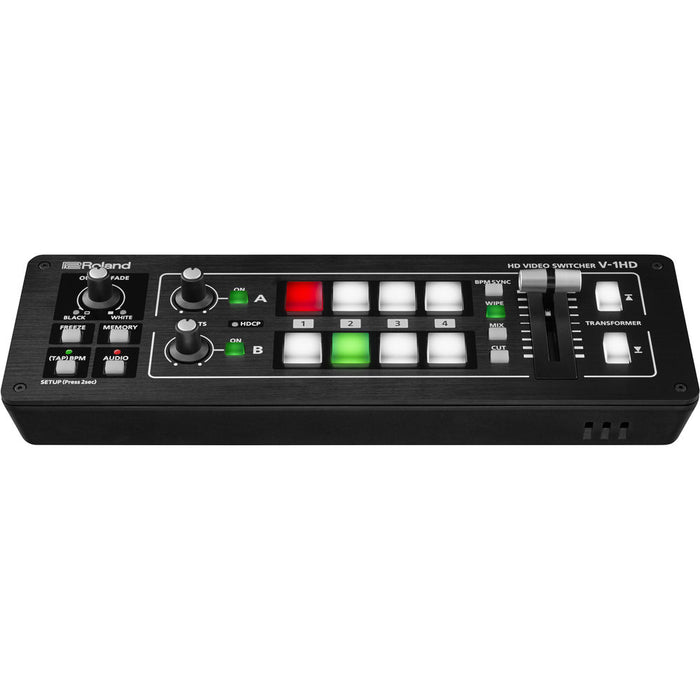

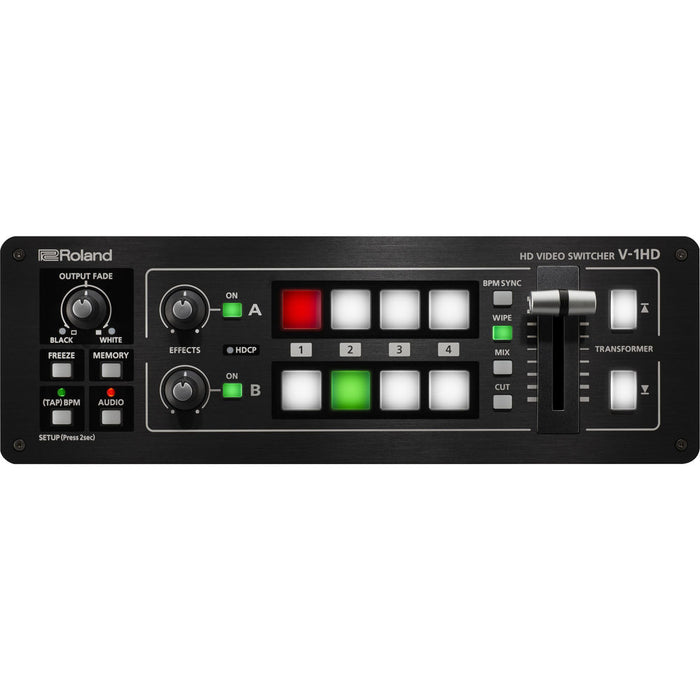

  • Intuitive hardware interface with back-lit buttons and T-fader for seamless transitions
  • Effects engine with picture-in-picture, split-screen, chroma/luminance keying and filter effects
  • Automatic switching options (Input Scan, BPM Sync) for hands-free operation

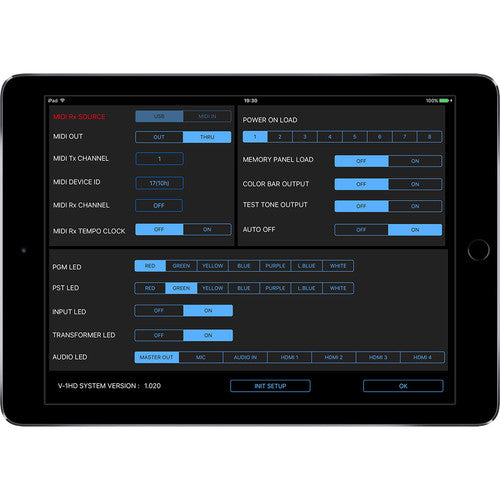

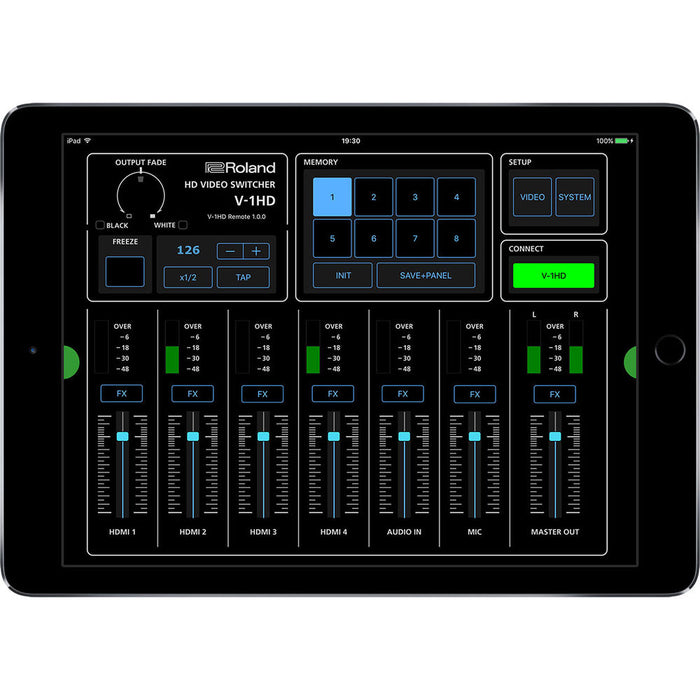

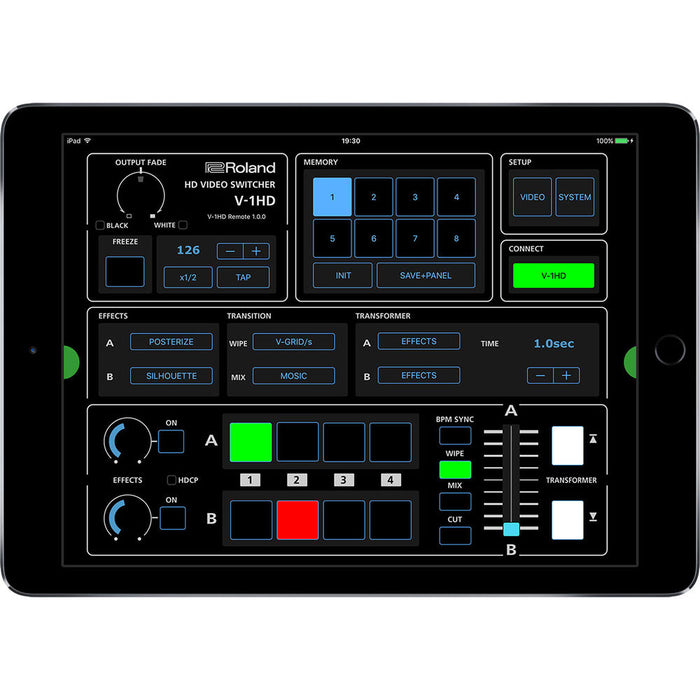

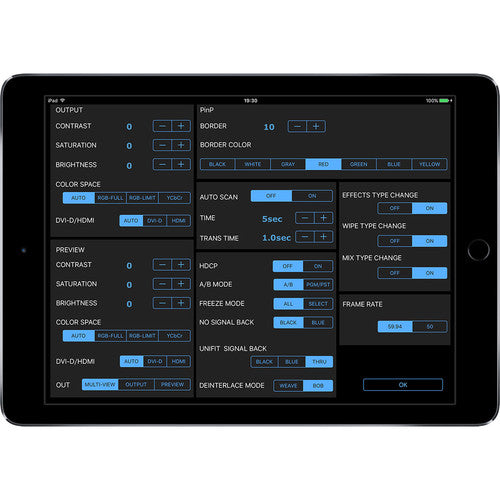

  • Remote control via USB or MIDI, and software control on Mac/PC/iPad
  • Compact, portable design ideal for mobile setups, event venues or small production rooms

The Detailed Specifications for the Roland V-1HD HD Video Switcher:

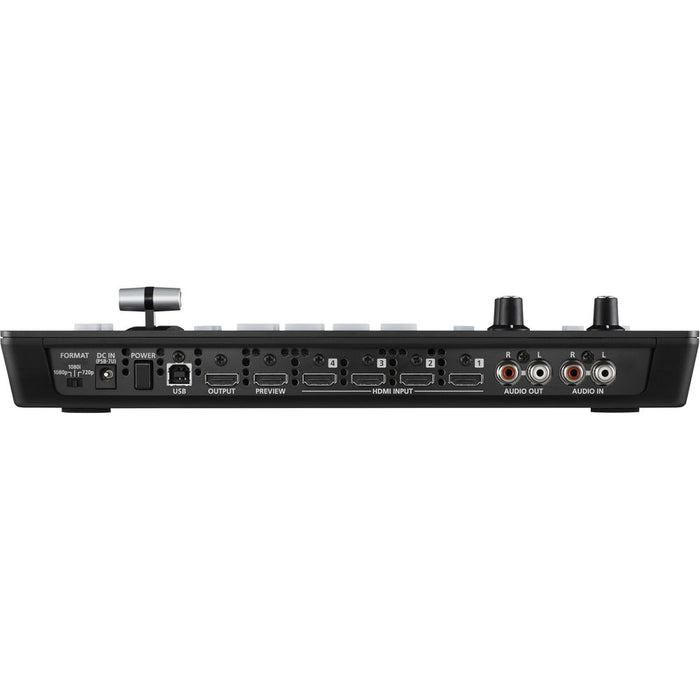

  • Video Inputs: 4 × HDMI Type A (19-pin) supporting HDCP and assorted formats (720/50p, 720/59.94p, 1080/50i, 1080/59.94i, 1080/50p, 1080/59.94p)
  • Video Outputs: HDMI Output (Program), HDMI Preview/Multiview Output
  • Video Processing: 4:2:2 8-bit, internal frame buffer/TBC allows mixing non-genlocked sources
  • Transition/Effects: CUT, MIX (Dissolve/FAM/NAM/Mosaic), WIPE (30 types); Effects engine supports Negative, Emboss, Colorize, Color Pass, Posterize, Silhouette, Find Edge, Flip, WH-LumiKey, BK-LumiKey, GR-ChromaKey, BL-ChromaKey, PinP and Split compositions

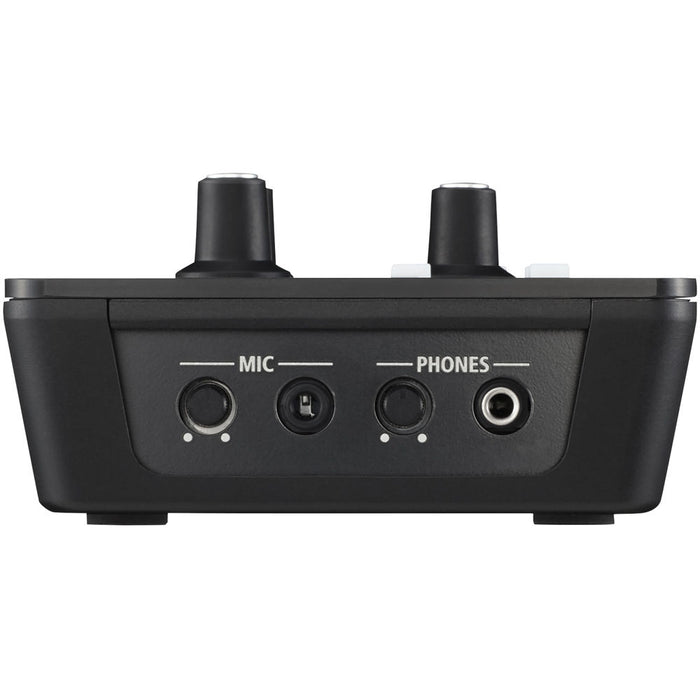

  • Audio Processing: 24-bit / 48 kHz digital audio; de-embed and mix embedded HDMI audio plus analog audio in (RCA stereo, stereo mini-mic/line input) and analog out (RCA); headphone output (stereo mini)

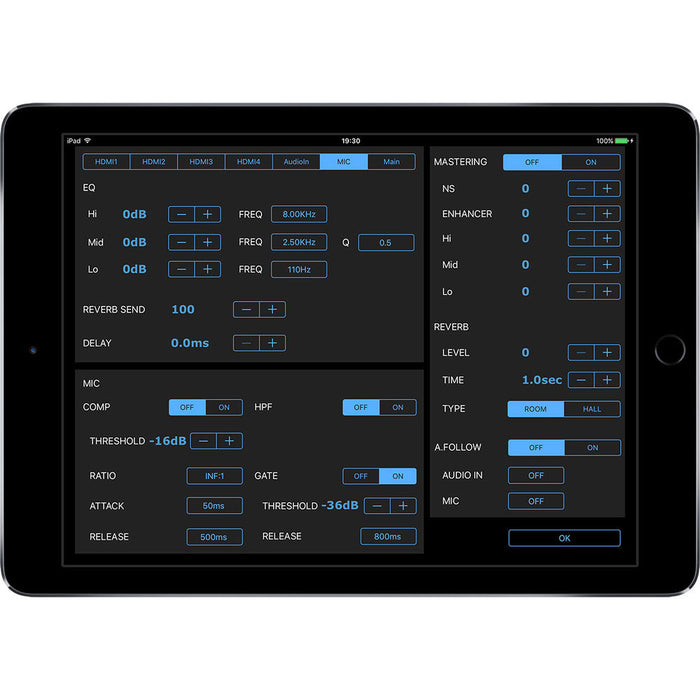

  • Audio Mixer Features: Each channel features EQ, delay, reverb, compressor, gate and mastering; Output audio level and monitors included

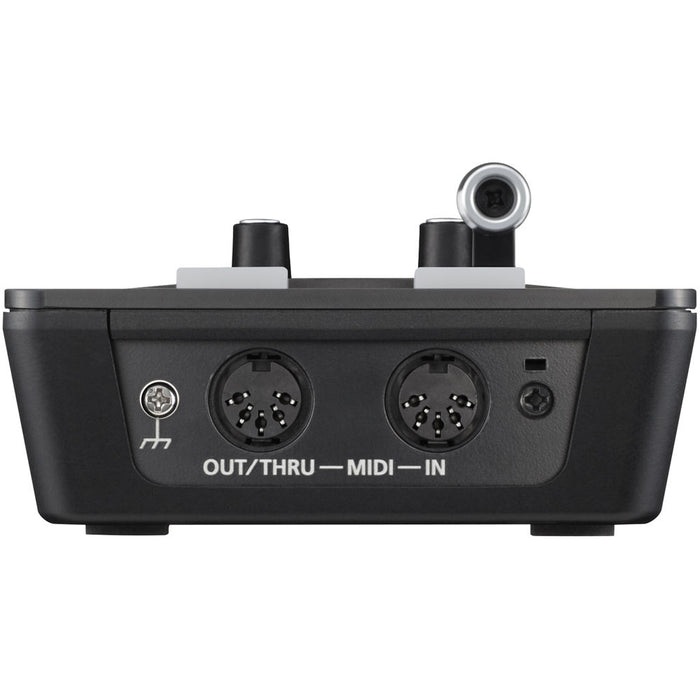

  • Control Interfaces: USB Type B (for remote software control), MIDI IN/OUT/THRU (5-pin DIN), Memory (8 presets), Freeze input video, BPM Sync, Output fade (White/Black)

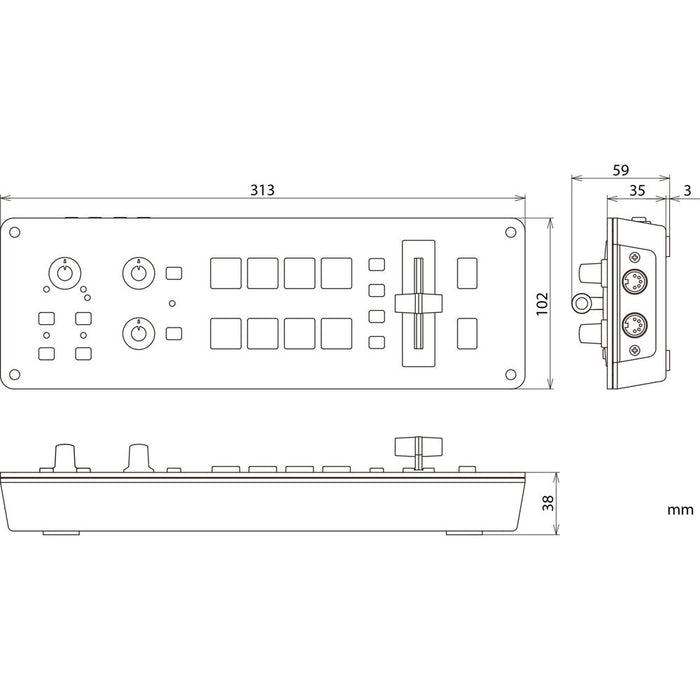

  • Physical Specifications: Approx. 313 mm (W) × 102 mm (D) × 59 mm (H) / 12-1/3″ × 4″ × 2-1/3″; Weight approx. 1.2 kg (2 lbs 10 oz) excluding AC adapter
  • Power: AC adaptor included, typical power consumption ~18 W
  • Accessories Included: Owner’s Manual, AC Adaptor, Power Cord, Cord Hook
