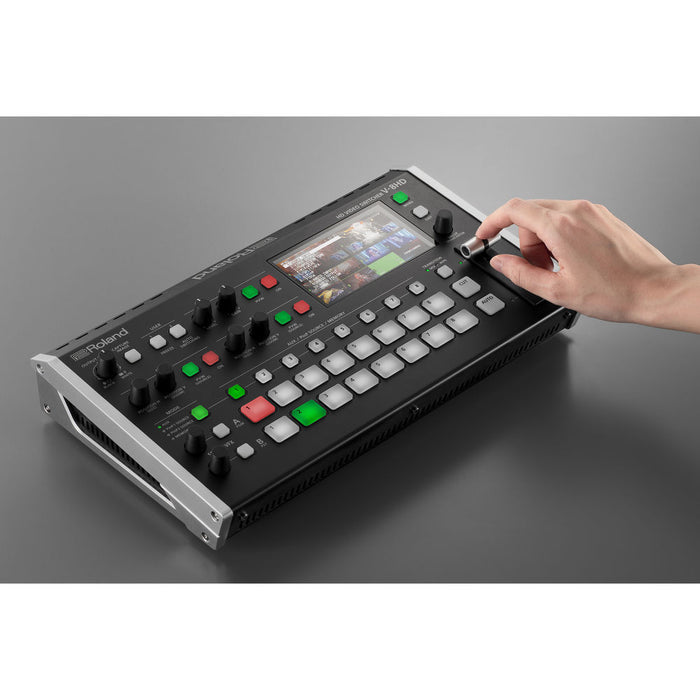

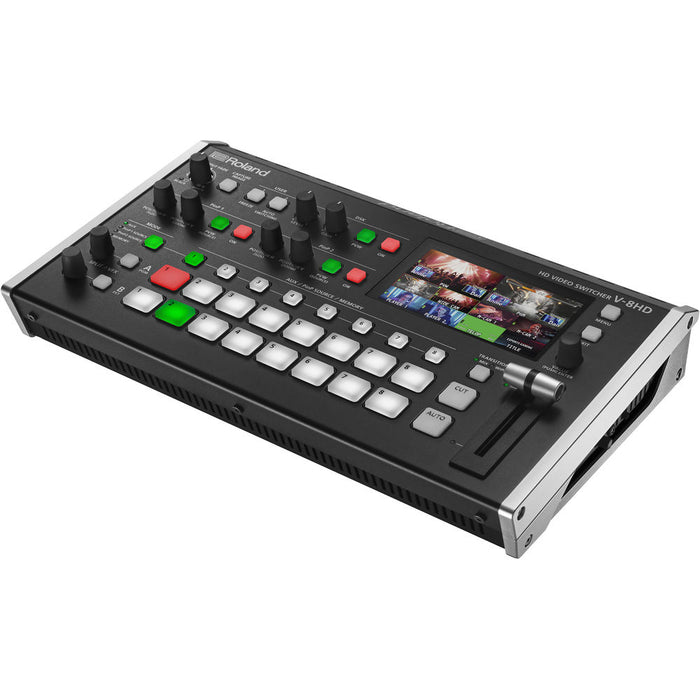

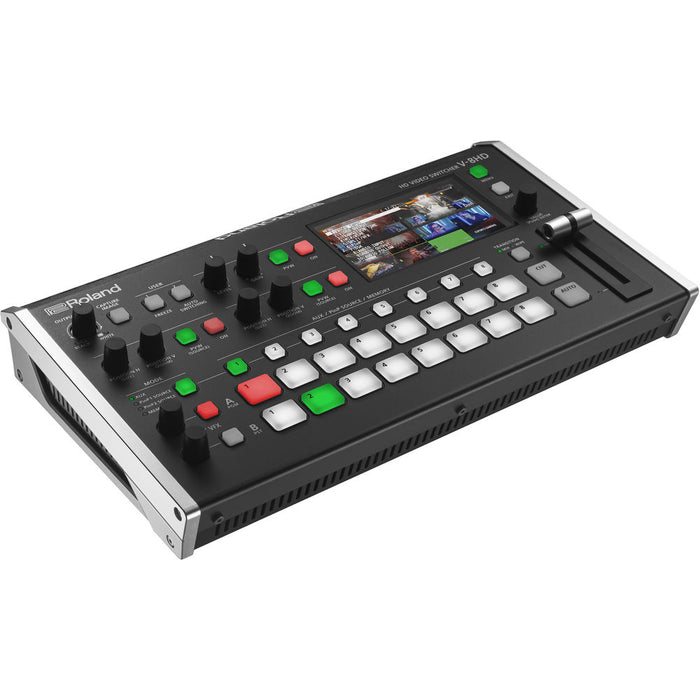

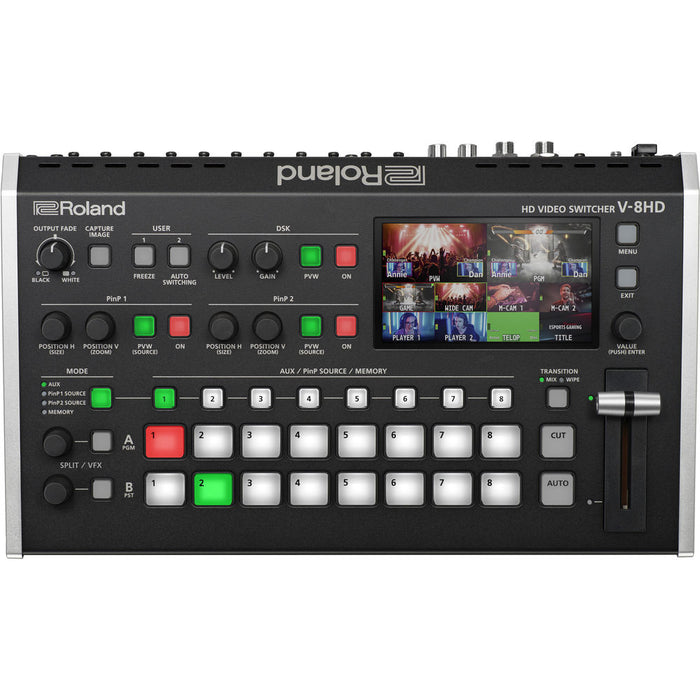

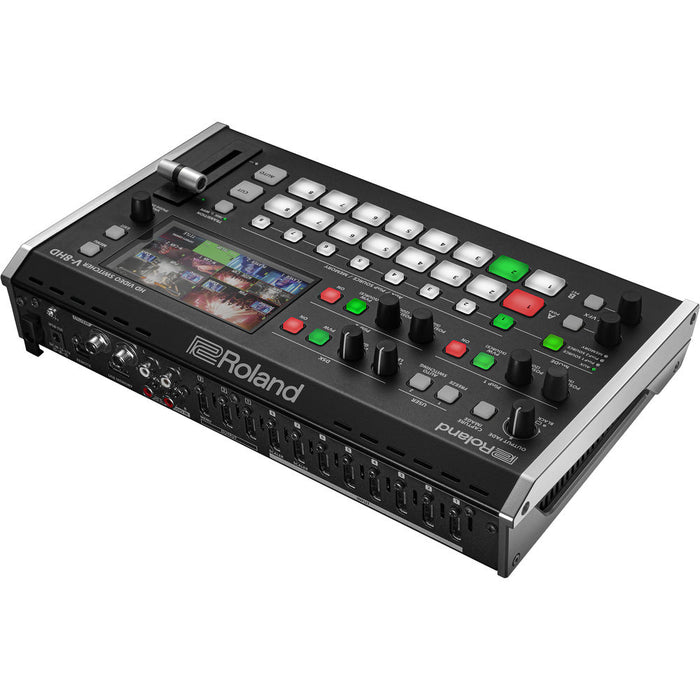

Roland V-8HD 8-Channel HD Video Switcher with HDMI inputs and T-bar

Roland V-8HD 8 Channel HD Video Switcher

by Roland
Availability:
In stock 3-5 days
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU:  V-8HD

  • Overview
  • Features
  • Specifications

The Roland V-8HD HD Video Switcher is a professional-grade, compact HDMI video switcher designed for live event production, corporate presentations, houses of worship, e-sports, streaming and other multichannel video environments. It offers eight HDMI inputs to accommodate multiple cameras, computers and media players, while providing three HDMI outputs for program and preview feeds. With built-in scaling on two inputs, the unit supports varied formats and seamlessly up-converts or handles mismatched sources. The V-8HD supports full HD up to 1080p60, processes 8-bit 4:2:2 video, and incorporates a 5-layer effects engine including picture-in-picture (PiP), keying (chroma, luminance, alpha), wipes and dissolves. On the audio side, it features an 18-channel mixer (24-bit/48 kHz) with onboard effects, and handy connectivity for analog and HDMI embedded audio. A built-in 4.3-inch multiviewer screen allows monitoring of all eight sources plus program/preview outputs from a single display. Its portable form-factor (≈ 2 kg / 4.4 lb) makes it rack-mountable or deployment-friendly in mobile setups. The V-8HD’s workflow is optimized for live switching reliability: dedicated buttons, T-bar, macros, scene memories, plus optional external footswitch or numeric keypad control. For producers wanting a reliable, versatile 8-input HDMI switcher with strong effects and audio capabilities, the Roland V-8HD delivers a professional all-in-one solution.

The Key Features of the Roland V-8HD HD Video Switcher:

  • Eight HDMI inputs and three HDMI outputs for flexible video source routing and monitoring.
  • Full HDMI workflow supporting up to 1080p60, 8-bit 4:2:2 video processing.
  • Built-in scalers on inputs 7-8 for support of computer, tablet or legacy format sources.
  • Five-layer effects engine: includes two PiP (picture-in-picture) layers, keyers (chroma, luminance, alpha), wipes, dissolves and flips.
  • Integrated 18-channel audio mixer (24-bit/48 kHz) with high-pass filter, noise gate, compressor, 3-band EQ and delay on each channel.
  • Bright 4.3″ multiviewer LCD for monitoring all video inputs plus program and preview in one display.
  • Portable and mobile-friendly design (approximately 2.0 kg / 4.4 lb) with rack-mount or carry-case compatibility.
  • Memory presets (24 types) and up to 100 macros for hands-free recall of complex scenes and transitions.
  • Auxiliary output for a separate feed (e.g., confidence monitor or livestream) independent of main program output.
  • Remote control support via USB (numeric keypad, PC/iPad app) and optional footswitch for automation in live environments.

The Detailed Specifications for the Roland V-8HD HD Video Switcher:

  • Video Processing: 8-bit 4:2:2 (Y/Pb/Pr) color space.
  • Video Input Formats (INPUT 1-6): 720p59.94/50; 1080i59.94/50; 1080p59.94/50/29.97/25/24/23.98.
  • Video Input Formats (INPUT 7-8): 480i/480p59.94; 576i/576p50; 720p59.94/50; 1080i59.94/50; 1080p59.94/50/29.97/25/24/23.98; plus computer resolutions up to WUXGA (1920×1200/60) with reduced blanking.
  • Video Output Formats (OUTPUT 1-2): 720p59.94/60/50; 1080i59.94/50; 1080p59.94/60/50/29.97/25/24/23.98.
  • Output 3: 1080p59.94/60/29.97/50/25/23.98.
  • Still Image Support: Bitmap (.bmp), PNG (.png with alpha support when applicable), JPEG (.jpg); max 1920×1080, 24-bit color; up to 8 files in internal memory; export via USB flash drive.
  • Effects: CUT, MIX (DISSOLVE, FADE), WIPE (8 types), SPLIT (2 types); Composition: PiP × 2 (square, circle, diamond), Keyer × 2 (luma key, chroma key), DSK (luma, chroma, alpha, external key, Roland FILL+KEY mode). Flip horizontal/vertical, still image capture/playback, output fade (white or black), test pattern.

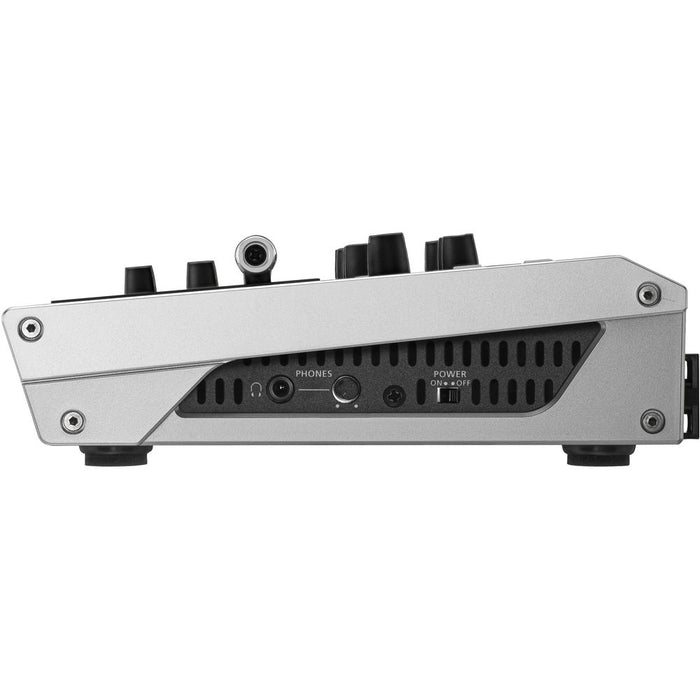

  • Audio Processing: Sample rate 24-bit, 48 kHz; 18 audio channels. Inputs: HDMI embedded (8 channels) and analog RCA (AUDIO IN); Outputs: HDMI embedded outputs and analog AUDIO OUT (RCA) plus PHONES (1/8" TRS). Audio effects: High-pass filter, noise gate, compressor, 3-band EQ, delay (channel), master reverb, 3-band EQ, multi-band compressor, limiter.

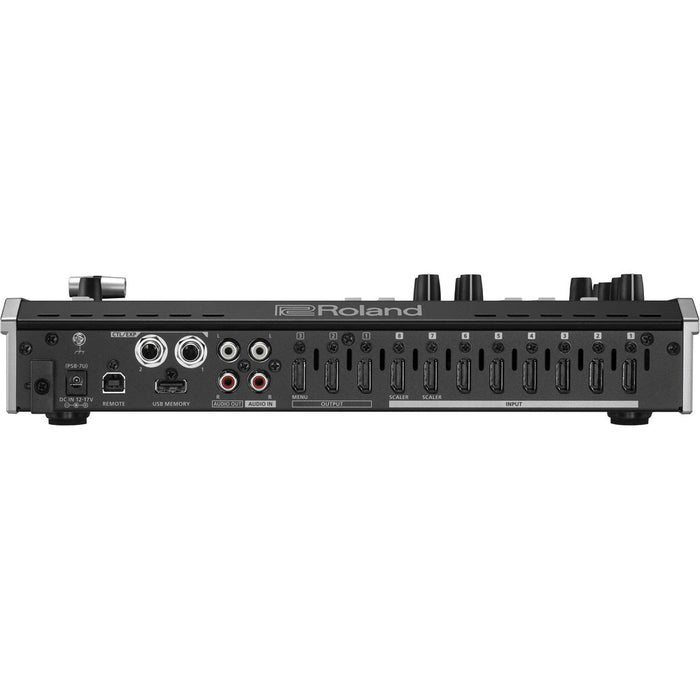

  • Connectors: Video Input: HDMI Type A × 8 (INPUT 1-6 + 7-8) with HDCP support. Video Output: HDMI Type A × 3 (OUTPUT 1-3) with HDCP support. Audio Input: RCA phono stereo analog; Audio Output: RCA phono stereo analog; Headphones: 1/8" TRS stereo. Other I/O: USB A (USB memory), USB B (remote control from PC/iPad), CTL/EXP (¼-inch TRS for footswitch/expression pedal).
  • Display: 4.3″ TFT color LCD with resolution 480 × 272 dots for multiviewer and menu functions.
  • Power Supply & Consumption: AC adaptor; current draw 3.3 A; power consumption approx. 39.6 W.
  • Operation Temperature: 0 °C to +40 °C (+32°F to +104°F).

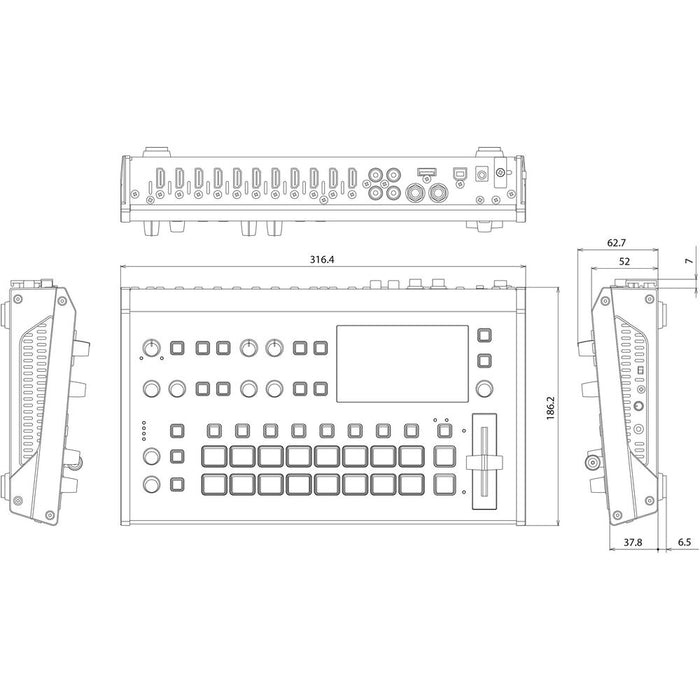

  • Dimensions (W × D × H): 317 × 193 × 70 mm (12.48″ × 7.60″ × 2.76″).
  • Weight (excluding AC adaptor): approx. 2.0 kg (4 lb 7 oz).

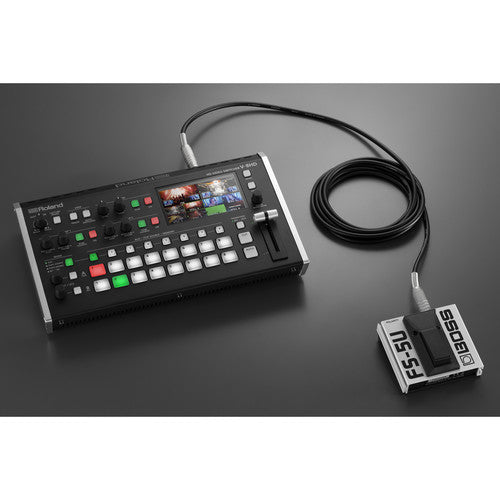

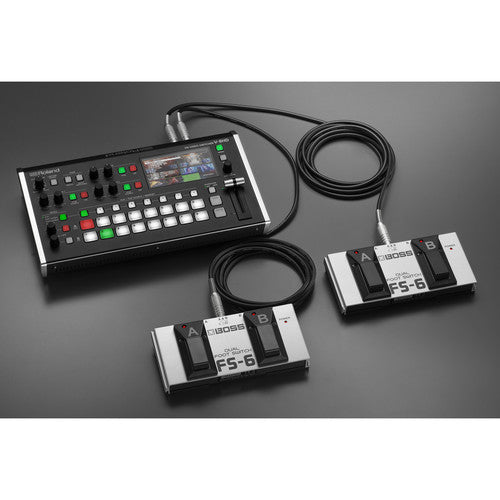

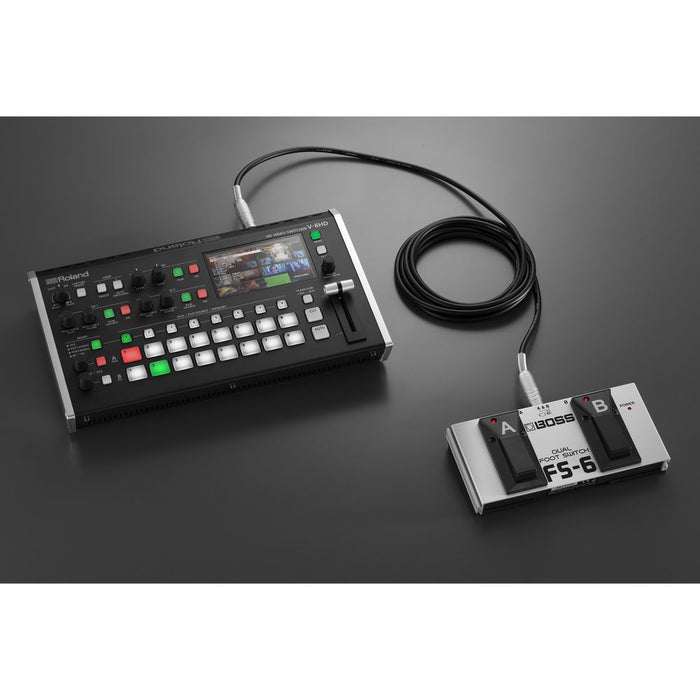

  • Accessories Included: Startup Guide, Safety Leaflet, AC adaptor. Optional: Footswitch (BOSS FS-5U, FS-6, FS-7), Expression pedal (EV-5, EV-30, BOSS FV-500L/H) sold separately.

Versatile, portable, and reliable, the Roland V-8HD HD Video Switcher brings a world of creative options to live event switching.
