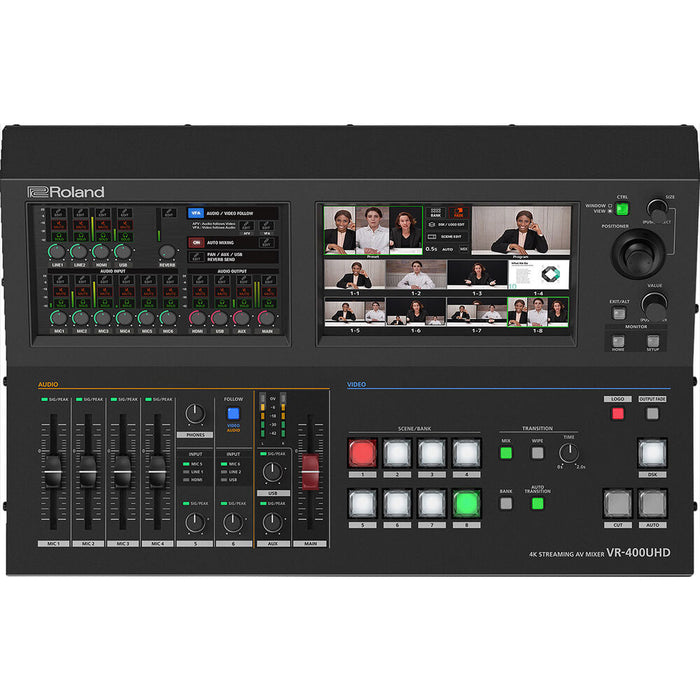

Roland VR-400UHD 4K Streaming AV Mixer front panel showing dual touchscreens and input/output ports

Roland VR-400UHD 4K Streaming AV Mixer

by Roland
Availability:
In stock 3-5 days
Do you have questions about pricing?
📞 416-690-1690
✉️ info@videolink.ca
Trusted by broadcasters, venues, and production teams across Canada.

SKU:  VR-400UHD

  • Overview
  • Features
  • Specifications

The Roland VR-400UHD 4K Streaming AV Mixer is a next-generation, all-in-one production system designed for professional live streaming, hybrid events, and AV installations. It integrates advanced 4K/60p video switching, professional audio mixing, and live streaming in one compact console.

Featuring dual 7-inch touchscreens, the VR-400UHD allows operators to preview, switch, and control scenes effortlessly. It supports multiple 4K HDMI inputs with built-in scaling, region-of-interest cropping, and layered compositions for multi-camera or virtual studio setups.

The 14-channel audio mixer combines analog inputs with embedded digital audio for complete sound control. With USB-C output supporting 4K streaming, scene memory recall, and intuitive touch control, the VR-400UHD is a powerful solution for corporate events, education, worship broadcasts, and live performances.

The Key Features of the Roland VR-400UHD 4K Streaming AV Mixer:

  • Dual 7-inch color touchscreens for live preview, switching, and scene control.
  • Up to seven HDMI inputs (four active simultaneously) supporting 4K/60p video.
  • Three HDMI outputs with independent scaling and resolution control.
  • USB-C streaming output supporting up to 4K/30p webcam or encoder connection.
  • 14-channel professional audio mixer with mic, line, and embedded inputs.
  • Region of Interest (ROI) feature enables multiple shots from a single 4K camera.
  • Scene memory system with up to 64 presets for fast recall of complex layouts.
  • Built-in keying, picture-in-picture, and background composition functions.
  • Compact, rack-mountable design ideal for portable or fixed AV setups.

The Detailed Specifications for the Roland VR-400UHD 4K Streaming AV Mixer:

  • Displays: Dual 7" color LCD touchscreens (800×480 resolution each).
  • Video Inputs: 7 × HDMI (Type A), 4 usable simultaneously, up to 4K/60p.
  • Video Outputs: 3 × HDMI with independent scaling up to 4K.
  • USB Output: 1 × USB-C (USB 3.2 Gen 2), up to 4K/30p for streaming/webcam.
  • Audio Inputs: 4 × XLR/TRS combo jacks, 2 × TRS mic inputs, 2 × stereo RCA inputs.
  • Audio Outputs: Main L/R, Aux L/R, Phones output (90 mW + 90 mW at 32Ω).
  • Audio Mixer: 14-channel digital audio mixer with EQ and compressor per channel.
  • Scene Memory: 64 total (8 scenes × 8 banks) with compositing layers.
  • Supported Media: BMP, JPEG, PNG still images via USB (PNG supports alpha).
  • ROI Function: Crop and assign multiple angles from one 4K camera feed.
  • Residual Noise Level: -87 dBu typical.
  • Power Supply: AC 115–240 V, 50/60 Hz; Power consumption 115 W.
  • Dimensions (W × D × H): 436 × 279 × 137 mm (17.17" × 11" × 5.39").
  • Weight: 6.8 kg (15 lbs) excluding accessories.
  • Operating Temperature: +5°C to +40°C (41°F to 104°F).
  • User Interface Languages: English, Japanese.

The Roland VR-400UHD 4K Streaming AV Mixer allows operators to easily take control of complex streaming tasks for in-person and livestream events. In this video, you will learn about the all-in-one video switcher and audio mixer’s features and capabilities for producing flawless presentations.
