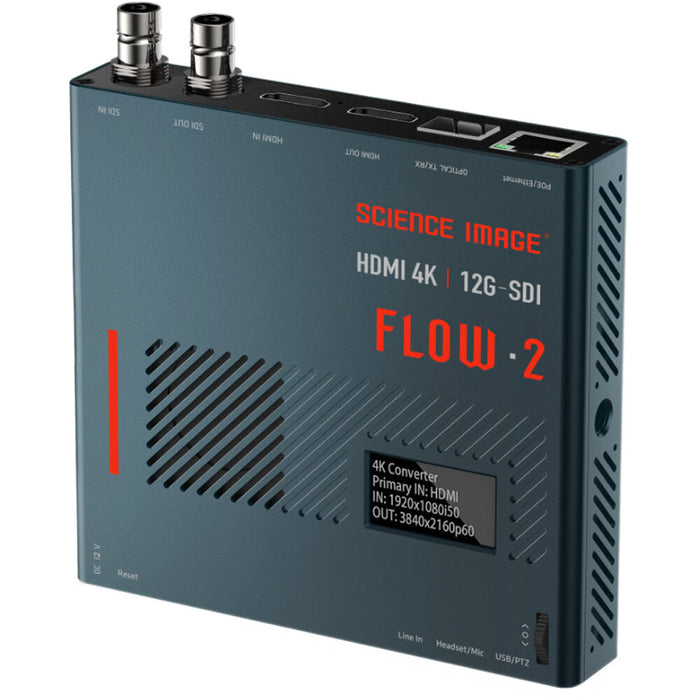

Science Image FLOW 2 - 4K SDI/HDMI UpDownCross Converter and Fiber Transmitter/Receiver
Availability:
In stock 3-5 days
Original price
$995.00
-
Original price
$995.00
Original price
$995.00
$995.00
-
$995.00
Current price
$995.00
| /
The Science Image FLOW 2 is a high-performance 4K SDI/HDMI UpDownCross Converter integrated with a fiber transmitter and receiver for advanced signal routing in professional AV and broadcast environments. Designed for ultimate flexibility, the FLOW 2 supports simultaneous conversion between SDI and HDMI formats while enabling long-distance transmission over fiber. It offers intelligent scaling, frame rate conversion, and robust signal synchronization, making it an essential tool for live production, OB vans, studios, and post-production workflows.
Compact yet powerful, the FLOW 2 ensures seamless interoperability between different video systems and infrastructure, whether you’re bridging legacy SDI setups or working with ultra-high-definition HDMI sources. Its rugged build and intuitive design make it a versatile solution for critical media operations that demand uncompromising video quality and signal reliability.
The Key Features of the Science Image Flow 2:
- Supports 4K60 12G-SDI and HDMI 2.0 signal conversion
- Bidirectional fiber optic transmitter and receiver built-in
- Real-time UpDownCross conversion with scaling and frame rate adjustment
- Auto signal detection and format matching
- SDI reclocking for jitter-free transmission
- Loop-through output for both SDI and HDMI
- Compact metal enclosure for durability and portability
- Supports embedded audio and audio de-embedding
- Ideal for live production, broadcast, and AV integration
- Universal power input with locking connector
The Detailed Specifications for the Science Image Flow 2:
- Video Input: 1x 12G/6G/3G/HD/SD-SDI, 1x HDMI 2.0 Type-A
- Video Output: 1x 12G-SDI, 1x HDMI 2.0 Type-A, 1x Fiber TX (SFP)
- Video Input Formats: Up to 4Kp60 4:2:2 (10-bit)
- Video Output Formats: Selectable via menu or auto-matching
- Audio Support: 16-channel embedded SDI audio, 8-channel HDMI audio
- Conversion Modes: Up, Down, and Cross-conversion
- Sync: Reference input with genlock support
- Control: On-device menu, USB for firmware updates
- Fiber Optic: Dual SFP cages, supports single-mode and multi-mode modules
- Power: 12V DC input with lockable connector, 8W typical consumption
- Dimensions: 140mm x 90mm x 28mm
- Weight: 420g
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Mounting: Optional bracket kit available
