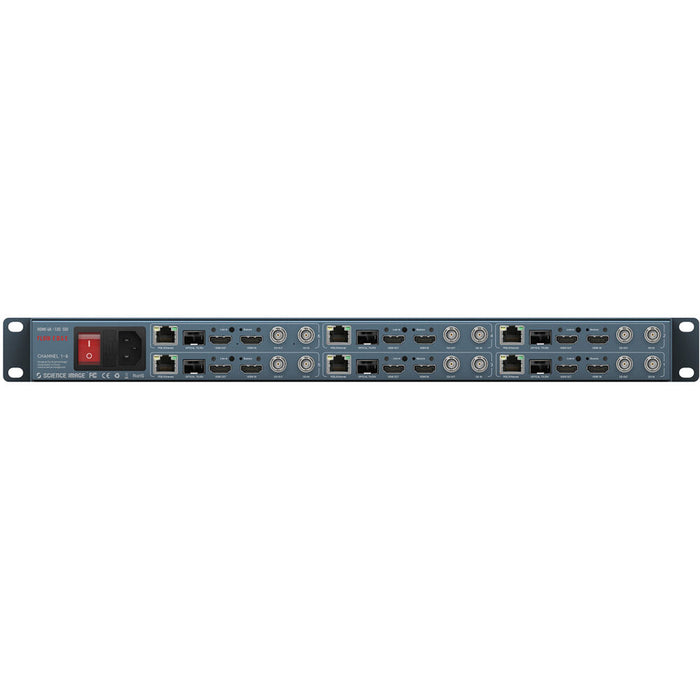

Science Image Flow Edge 6CH - 6-Channel 1U Rack-mount 4K Up/Down/Cross Converter
Availability:
In stock 3-5 days
Original price
$6,450.00
-
Original price
$6,450.00
Original price
$6,450.00
$6,450.00
-
$6,450.00
Current price
$6,450.00
| /
The Science Image Flow Edge 6CH is a high-performance 1U rack-mount 4K up/down/cross converter designed for mission-critical broadcast, post-production, and professional AV environments. With support for six independent 12G/6G/3G/HD/SD-SDI channels, this powerhouse delivers uncompromising video processing quality across a broad range of formats. Its advanced FPGA-based engine ensures ultra-low latency conversion and pristine image integrity, even during complex cross-format workflows. The Edge 6CH combines rugged industrial design with cutting-edge features to provide a reliable, scalable solution for high-density video signal conversion in any professional environment.
The Key Specifications of the Science Image Flow Edge 6CH:
- Six independent 4K-capable SDI channels for simultaneous processing
- Supports 12G/6G/3G/HD/SD-SDI video formats
- Real-time up/down/cross conversion with ultra-low latency
- 1U rack-mount chassis for efficient space management
- Advanced FPGA architecture for reliable performance
- High-quality image scaling and deinterlacing
- Redundant power supply support for critical uptime
- Intuitive web-based UI for remote control and monitoring
- Customizable channel routing and format presets
- Multi-format support: 4K UHD, 1080p/i, 720p, and SD
The Detailed Specifications for the Science Image Flow Edge 6CH:
- Channels: 6 independent video processing channels
- Video Inputs: 6x 12G/6G/3G/HD/SD-SDI BNC connectors
- Video Outputs: 6x SDI mirrored loop outputs
- Supported Resolutions: Up to 4096x2160p at 60fps
- Conversion Modes: Up-conversion, down-conversion, cross-conversion
- Latency: Sub-frame latency (<1ms typical)
- Audio Support: Embedded 16-channel SDI audio pass-through
- Chassis: 1U 19-inch rack-mountable metal enclosure
- Cooling: Smart active cooling with temperature monitoring
- Power: Dual redundant hot-swappable PSU, 100–240V AC
- Control Interface: Web-based GUI, REST API, and front-panel buttons
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Dimensions: 19” x 1.75” x 10” (W x H x D)
- Weight: Approx. 8 lbs (3.6 kg)
