Science Image NDI MINI HD Bidirectional 3G-SDI/HDMI Encoder/Decoder
Availability:
In stock 3-5 days
Original price
$549.00
-
Original price
$549.00
Original price
$549.00
$549.00
-
$549.00
Current price
$549.00
| /
The Science Image NDI Mini HD Bidirectional 3G-SDI/HDMI Encoder/Decoder is a compact, high-performance video processing solution designed for live production, broadcasting, and AV integration. With support for both encoding and decoding functions, it allows seamless signal conversion between HDMI and 3G-SDI formats and NDI IP-based workflows. Its bidirectional functionality enables efficient signal routing, making it ideal for studios, field production, and live events. The unit is engineered for low-latency video transmission and supports resolutions up to 1080p60, ensuring high-quality streaming and monitoring. Its compact size makes it easy to integrate into any workflow, whether mounted in tight spaces or used on the go.
The Key Features of the Science Image NDI Mini HD:
- Bidirectional NDI encoder and decoder functionality
- Supports both 3G-SDI and HDMI video interfaces
- Up to 1080p60 resolution for high-definition video quality
- Low-latency video encoding and decoding
- Compact and portable design for versatile deployment
- Seamless integration into IP-based NDI workflows
- Web-based management interface for remote configuration
- Power over Ethernet (PoE) support for simplified power delivery
- Loop-through output for real-time local monitoring
The Detailed Specifications for the Science Image NDI Mini HD:

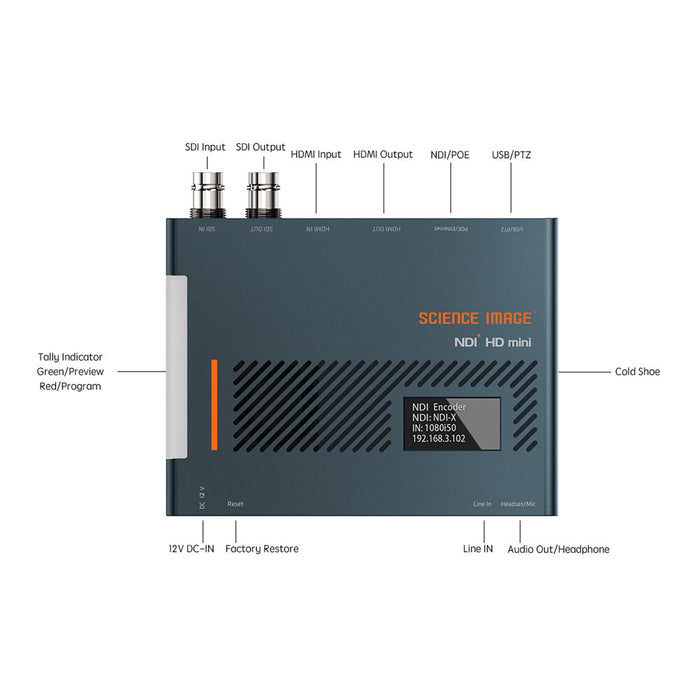

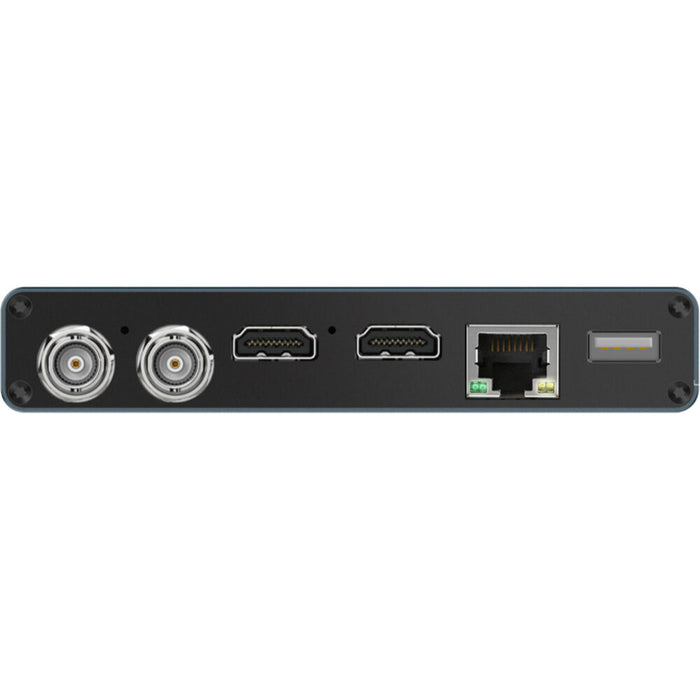

- Video Inputs: 1x HDMI Type-A, 1x 3G-SDI (BNC)
- Video Outputs: 1x HDMI Type-A, 1x 3G-SDI (BNC)
- Video Formats: 1080p60, 1080p59.94, 1080i, 720p
- NDI Support: Full NDI and NDI|HX
- Audio Support: Embedded audio via HDMI/SDI
- Network Interface: 1x RJ-45 (10/100/1000 Mbps Ethernet)
- Power: PoE (IEEE 802.3af) or DC 12V input
- Control Interface: Web UI via browser
- Dimensions: 115 x 85 x 25 mm (4.5 x 3.3 x 1 inches)
- Weight: 280g (0.62 lbs)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
