Science Image Studio 2 – Bi-Directional 4K SDI / HDMI Full NDI Encoder/Decoder
Availability:
In stock 3-5 days
Original price
$1,099.00
-
Original price
$1,099.00
Original price
$1,099.00
$1,099.00
-
$1,099.00
Current price
$1,099.00
| /
The Science Image Studio 2 is a professional-grade, bi-directional 4K video encoder and decoder designed for seamless integration into any advanced broadcast or production workflow. With native support for both HDMI and SDI inputs and outputs, as well as full bandwidth NDI (Network Device Interface), this compact unit allows for ultra-low latency video streaming, conversion, and routing across IP-based networks. Whether you're encoding live video from a camera or decoding streams for display, the Studio 2 offers unmatched flexibility, performance, and reliability for studio, field, and remote applications.
The Key Features of the Science Image Studio 2:
- Bi-directional 4K video encoding and decoding with Full NDI support
- Dual input/output with HDMI and 12G-SDI connectivity
- Low-latency, high-quality video streaming over IP networks
- Compact, fanless design ideal for portable and rack-mounted setups
- Web-based control interface for easy configuration and monitoring
- PTZ camera control over IP with integrated NDI support
- Supports tally, NDI discovery server, and multicast workflows
- High-efficiency H.265/H.264 compression options
- Compatible with all major NDI-based production systems
The Detailed Specifications for the Science Image Studio 2:

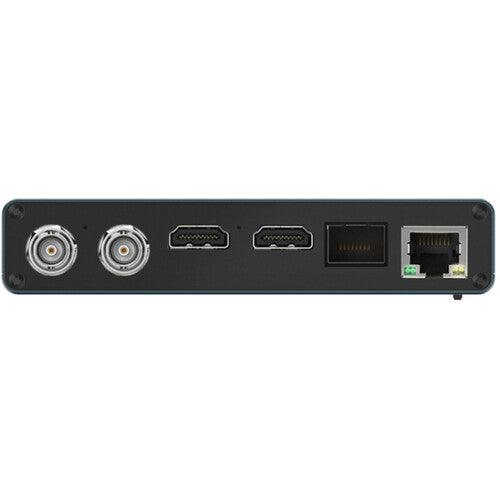

- Video Input: 1 x 12G-SDI, 1 x HDMI 2.0
- Video Output: 1 x 12G-SDI, 1 x HDMI 2.0
- NDI Support: Full bandwidth NDI (not NDI|HX)
- Max Resolution: 4Kp60
- Audio: Embedded SDI/HDMI, analog stereo input/output via 3.5mm jack
- Compression: H.265, H.264 (Main/High/Baseline Profile)
- Network: 1 x RJ-45 Gigabit Ethernet, PoE supported
- PTZ Control: Integrated NDI PTZ control, VISCA over IP
- Control Interface: Web UI, Telnet, HTTP API
- Power: 12V DC input or PoE (802.3af)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions: 142mm x 105mm x 28mm
- Weight: 0.6 kg (1.32 lbs)
