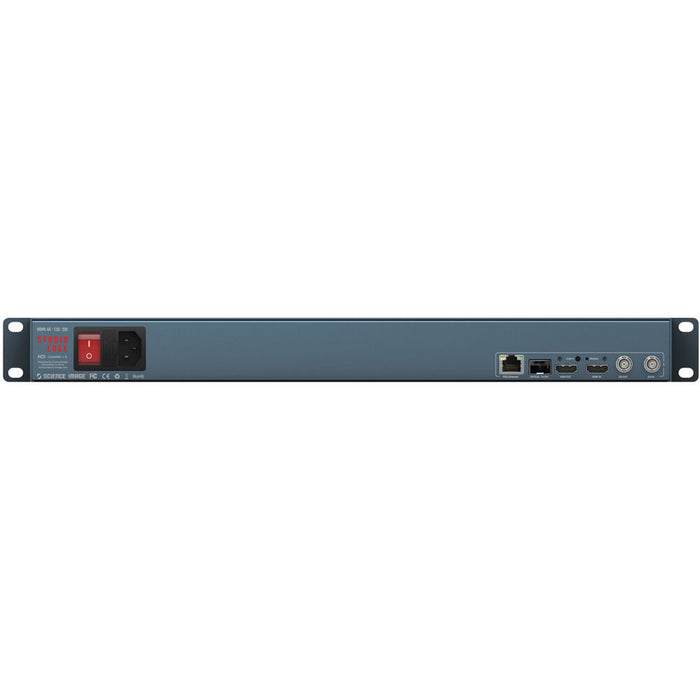

Science Image Studio Edge 1CH - 1-Channel 1U Rack-Mount Bi-Directional 4K SDI / HDMI Full NDI Converter
Availability:
In stock 3-5 days
Original price
$1,850.00
-
Original price
$1,850.00
Original price
$1,850.00
$1,850.00
-
$1,850.00
Current price
$1,850.00
| /
The Science Image Studio Edge 1CH is a professional-grade, 1-channel Full NDI converter housed in a compact 1U rack-mount design. Engineered for high-performance video environments, it supports bi-directional 4K SDI and HDMI conversion with full NDI encoding and decoding. Designed for studios, live production setups, and remote workflows, the Studio Edge 1CH delivers seamless real-time video over IP with ultra-low latency and lossless quality. With an intuitive web-based UI, redundant power support, and multi-protocol compatibility, it's the ideal tool for modern broadcast, streaming, and AV installations.
The Key Features of the Science Image Studio Edge 1CH:
- 1-channel bi-directional 4K SDI / HDMI to Full NDI conversion
- 1U rack-mount form factor for professional studio installations
- Supports Full NDI, NDI|HX, SRT, RTMP, RTSP, and HLS protocols
- Ultra-low latency and visually lossless 4K video transmission
- Web-based user interface for configuration and control
- Dual power input for redundant power supply support
- Loop-through SDI and HDMI output for flexible signal routing
- Integrated tally and PTZ control support
- Supports embedded and analog audio input/output
- Ideal for live production, broadcast studios, and remote workflows
The Detailed Specifications for the Science Image Studio Edge 1CH:
- Video Input: 1 x 12G-SDI / 3G-SDI / HD-SDI, 1 x HDMI 2.0
- Video Output: 1 x SDI loop, 1 x HDMI loop, Full NDI output over Ethernet
- Video Resolution: Up to 4Kp60 (SDI and HDMI)
- NDI Support: Full NDI (high bandwidth), NDI|HX (selectable)
- Network Interface: 1 x RJ45 Gigabit Ethernet, supports PoE
- Audio Input/Output: Embedded audio + 3.5mm analog audio I/O
- Protocols Supported: NDI, NDI|HX, SRT, RTMP, RTSP, HLS, ONVIF
- Power: Dual DC inputs (12V), supports redundant power
- Control Interface: Web UI, tally, serial PTZ control (VISCA over IP)
- Mounting: 1U rack-mount chassis, standard 19-inch rack compatible
- Dimensions: 482mm x 44mm x 160mm
- Weight: 2.3 kg
- Operating Temperature: 0°C to 40°C
