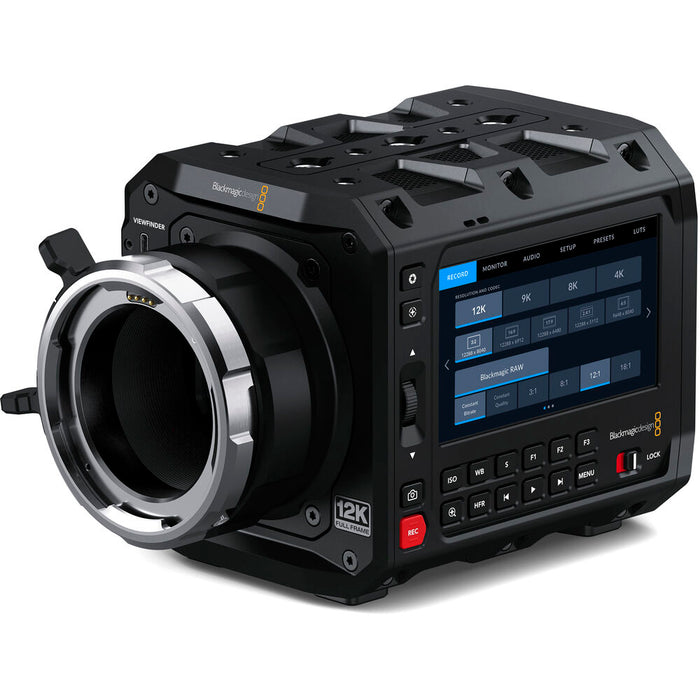

Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL)
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
The Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL) is an advanced digital film production camera built for creative freedom and cinematic quality. With a large full-frame RGBW sensor (36 × 24 mm) capable of resolutions up to 12,288 × 8,040, it delivers exceptional detail, rich skin tones and wide dynamic range. Designed with a rugged, modular body and professional connections, it supports dual CFexpress media slots, high-speed Ethernet, USB-C, and a built-in optical low-pass filter for optimal image fidelity. The fixed PL-mount version lets you utilize industry-grade cinema lenses, making this camera ideal for feature films, high-end commercial work and creative rigs on gimbals, drones or studio setups. With the flexibility to record high-resolution open-gate formats and multiple aspect ratios, the PYXIS 12K is positioned to handle demanding workflows and deliver a cinematic look from capture through post-production.
The Key Features of the Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL):
- Full-frame RGBW sensor (36 × 24 mm) with up to 12,288 × 8,040 resolution
- Up to 16 stops of dynamic range for rich highlight and shadow detail
- Professional PL mount for cinema-grade lenses
- Built-in optical low-pass filter (OLPF) to optimise detail and reduce aliasing
- Dual CFexpress Type B media slots for high-speed internal recording
- Supports 12-bit Blackmagic RAW and simultaneous H.264 proxies for efficient workflows
- Multiple aspect ratio support including open-gate 3:2, 16:9, 17:9, 2.4:1, 6:5 anamorphic
- High frame-rate capability — e.g., 12K up to ~40 fps and 8K/4K up to ~112 fps depending on format
- USB-C and 10 GbE Ethernet connectivity for file transfer, streaming and network workflows
- Modular chassis with multiple ¼″-20 and 3/8″-16 threaded mounting points and accessory side-plates
- 4″ HDR touchscreen display with HFR button and configurable function buttons for fast on-set control
The Detailed Specifications for the Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL):
- Sensor type: RGBW CMOS, full-frame, 36 × 24 mm (35.64 × 23.32 mm effective)
- Maximum resolution: 12,288 × 8,040 (3:2 open-gate) with other formats down to 4K listed
- Dynamic range: Up to 16 stops
- Native ISO: Optimised at ISO 800 (range approx. ISO 200-3,200, max ~25,600)
- Lens mount: Fixed PL mount with electronic communication for lens metadata
- Media: Dual CFexpress Type B slots (internal); Proxy files stored simultaneously in H.264)
- Connectivity: USB-C, 12G-SDI output, 10 GbE Ethernet (10G HDBase-T), timecode in/out, LEMO power
- Display: 4″ HDR touchscreen (1920×1080) with brightness ~1500 nits
- High frame rates: 12K up to approx. 40 fps (3:2 open gate); 8K/4K up to 112 fps depending on format
- Body: CNC-machined aerospace-grade aluminum chassis with multiple mounting threads (¼″-20 and 3/8″-16) and accessory side plates
- Audio: Built-in stereo microphone, mini-XLR and 3.5 mm audio inputs
- Power: Compatible with Sony BP-U series batteries; chassis accepts rigged configurations (top handle, baseplate, etc.)
- Operating temperature: 0–40 °C (typical production environment)
- Included software: Full version of DaVinci Resolve Studio for editing, colour grading and post production
