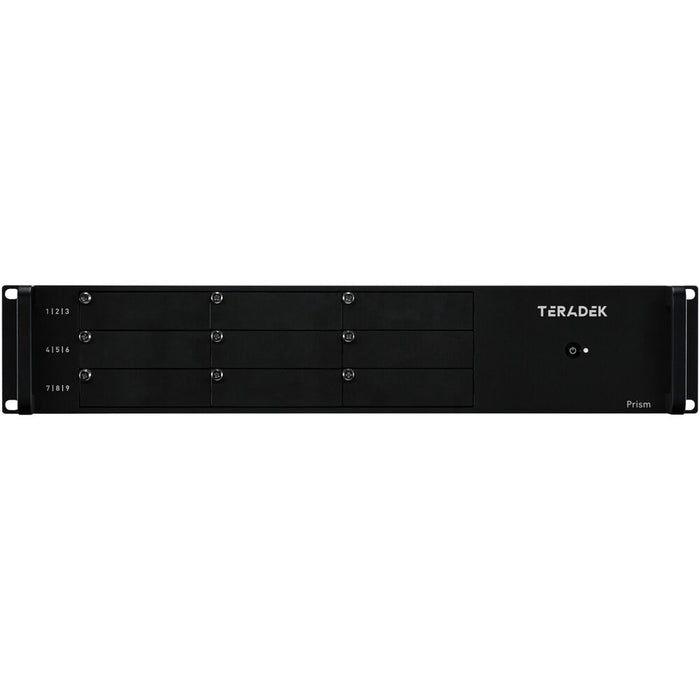

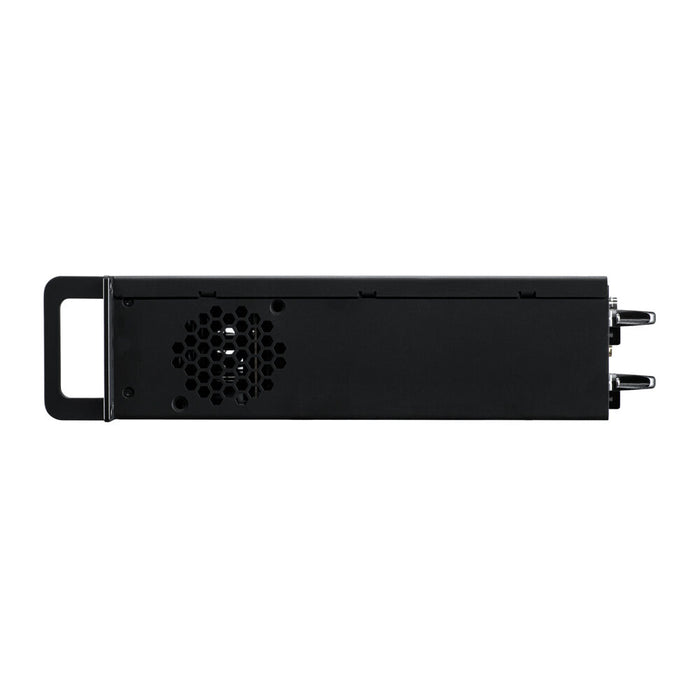

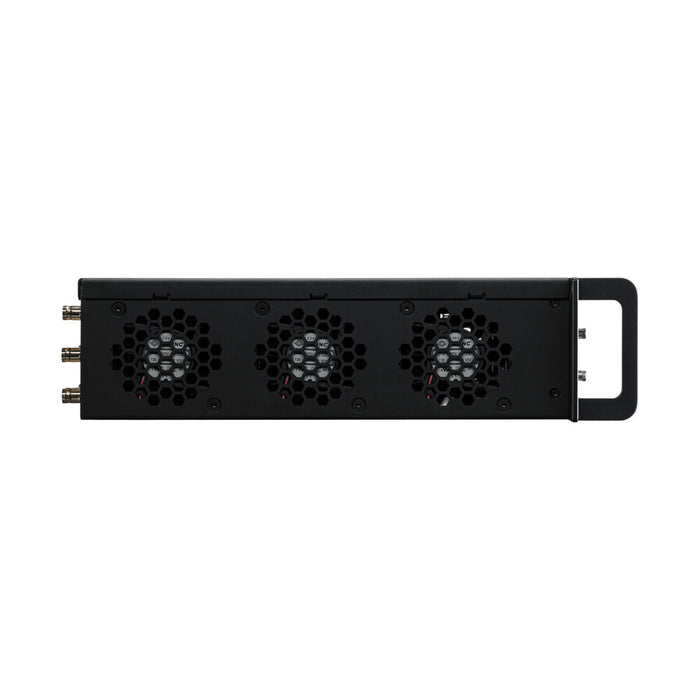

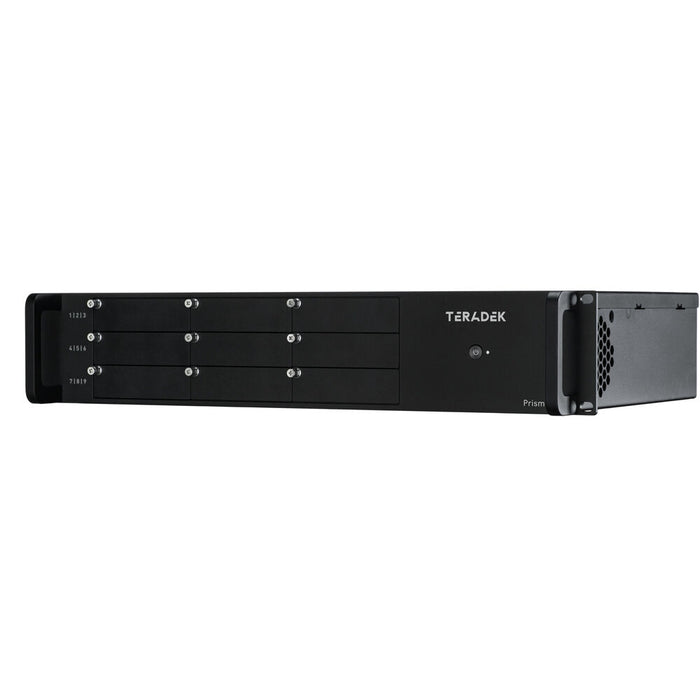

Teradek Prism 802 Base Rack System 2U (10-2802)
Original price
$3,490.00
-
Original price
$3,490.00
Original price
$3,490.00
$3,490.00
-
$3,490.00
Current price
$3,490.00
| /
The Teradek Prism 802 Base Rack System 2U (10-2802) is a cutting-edge, high-performance video encoding platform engineered for broadcast professionals, live event production teams, and remote contribution workflows. Built on Teradek’s powerful Prism architecture, the 802 Base Rack System offers support for up to eight modular Prism encoder cards, delivering ultra-low latency, pristine 4K and HD video encoding over IP with maximum reliability. With native 12G-SDI support, HEVC/H.265 and AVC/H.264 encoding capabilities, and flexible input/output configurations, this 2U rackmount chassis is a scalable and future-proof solution for high-demand video applications. It supports robust network protocols such as SRT, Zixi, and RTMP(S), and is designed for seamless integration into broadcast studios and centralized video infrastructure.
The Key Features of the Teradek Prism 802 Base Rack System 2U (10-2802):
- 2U rackmount chassis with support for up to 8 Prism encoder modules
- HEVC (H.265) and AVC (H.264) compression for efficient, high-quality video
- Compatible with 4Kp60 and HD video formats via 12G-SDI inputs
- Flexible I/O and modular design for customizable workflows
- Advanced network streaming support including SRT, Zixi, MPEG-TS, and RTMP(S)
- Redundant power supply support for mission-critical reliability
- Web-based UI for real-time configuration and monitoring
- Seamless integration with Teradek Core cloud platform for remote management
The Detailed Specifications for the Teradek Prism 802 Base Rack System 2U (10-2802):
- Product Model: 10-2802
- Form Factor: 2U rackmount chassis
- Encoder Capacity: Up to 8 Prism encoder cards (sold separately)
- Supported Video Formats: 4Kp60, 1080p60, 720p, NTSC/PAL
- Video Inputs: 12G/6G/3G/HD/SD-SDI (dependent on encoder module)
- Video Compression: HEVC (H.265) and AVC (H.264)
- Audio Support: Embedded SDI audio, AES/EBU, and analog audio options (via modules)
- Streaming Protocols: SRT, Zixi, MPEG-TS, RTMP, RTSP, RIST, HLS
- Network Interfaces: Dual Gigabit Ethernet (RJ45), optional 10GbE via expansion
- Power Supply: Dual redundant hot-swappable power supplies (100-240V AC)
- Management Interface: Web UI, REST API, Teradek Core integration
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions: 19” x 3.5” x 14.5” (W x H x D)
- Weight: Approx. 15 lbs without encoder cards
