Teradek Prism 853 4K 10bit HEVC/AVC 12G SDI Encoder Card (10-2853)
Original price
$2,790.00
-
Original price
$2,790.00
Original price
$2,790.00
$2,790.00
-
$2,790.00
Current price
$2,790.00
| /

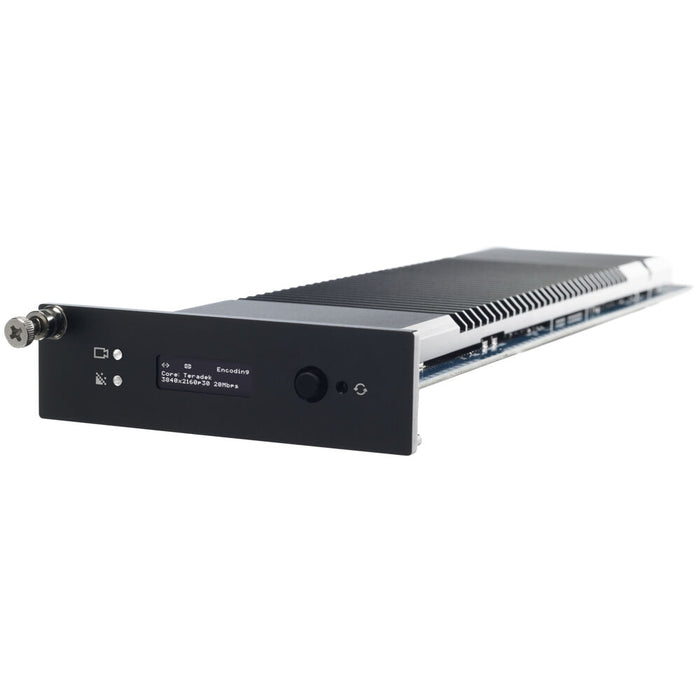

The Teradek Prism 853 4K 10bit HEVC/AVC 12G SDI Encoder Card (10-2853) is a high-performance 4K HEVC/AVC encoder designed for mission-critical broadcast and streaming workflows. Engineered to deliver ultra-low latency and broadcast-grade image quality, this modular encoder supports 10-bit 4:2:2 encoding over 12G-SDI, enabling real-time IP video delivery over public or private networks. Designed for rack-mount Prism systems, the 853 card integrates seamlessly into complex production environments, offering high-efficiency compression, secure streaming, and robust remote management. Ideal for newsrooms, sports, and remote production, the Prism 853 ensures uncompromised quality and flexibility for professional video transmission.
The Key Features of the Teradek Prism 853 4K 10bit HEVC/AVC 12G SDI Encoder Card (10-2853):
- Broadcast-grade 4Kp60 10-bit 4:2:2 HEVC/AVC encoding
- 12G-SDI input for single-cable 4K video capture
- Ultra-low latency streaming for real-time workflows
- Modular card design compatible with Teradek Prism rack chassis
- Supports multiple streaming protocols including SRT, RTMP, RTP/RTSP
- High-security streaming with encryption and authentication features
- Remote management and monitoring via Prism web UI or Core Cloud
- Redundant network support with dual GbE connections
- Ideal for broadcast, live events, and IP video contribution
The Detailed Specifications for the Teradek Prism 853 4K 10bit HEVC/AVC 12G SDI Encoder Card (10-2853):
- Model Number: 10-2853

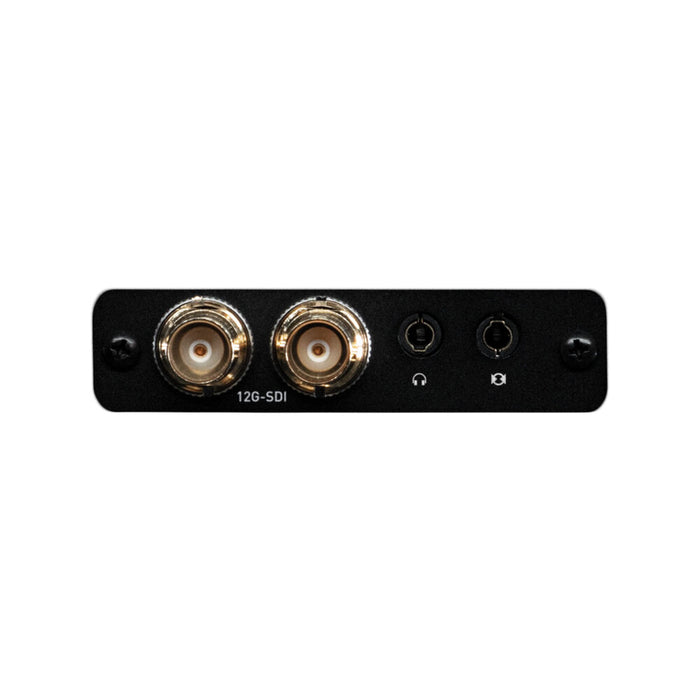

- Video Input: 1x 12G-SDI (BNC)
- Encoding Formats: HEVC (H.265), AVC (H.264)
- Resolution Support: Up to 4Kp60
- Color Depth: 10-bit, 4:2:2 chroma subsampling
- Audio Support: Embedded SDI, 2-channel AAC or PCM
- Streaming Protocols: SRT, RTMP, RTP, RTSP, MPEG-TS
- Network Interface: Dual Gigabit Ethernet ports
- Redundancy: Stream failover and bonding options
- Security: Stream encryption and user authentication
- Control Interface: Web UI, API, or integration with Teradek Core
- Form Factor: Encoder card for Prism Rack system
- Power: Supplied by Prism rack chassis
- Operating Temperature: 0–40°C (32–104°F)
- Use Case: Broadcast, remote production, live events, IP contribution
