Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless TX/RX - No Mount (10-2541)
Original price
$5,990.00
-
Original price
$5,990.00
Original price
$5,990.00
$5,990.00
-
$5,990.00
Current price
$5,990.00
| /

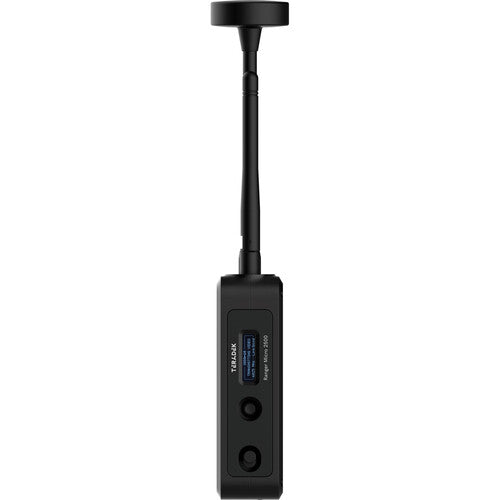

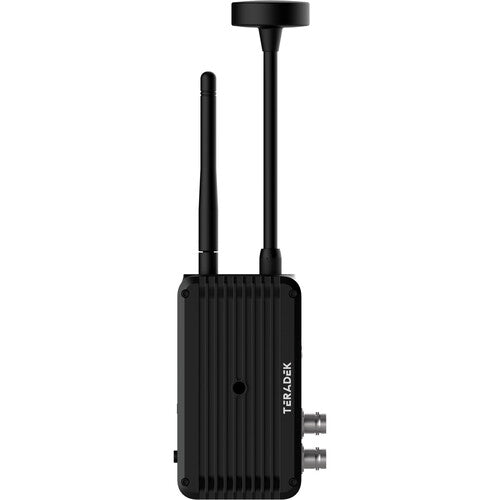

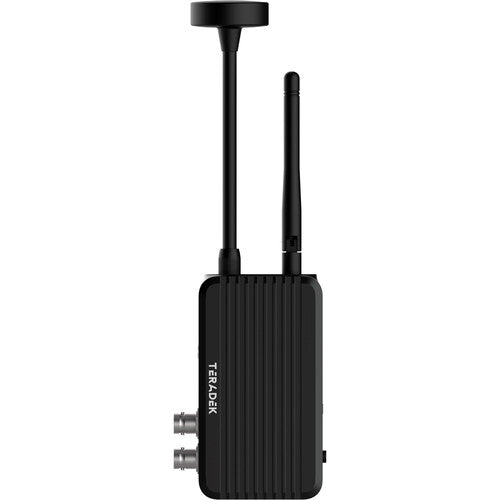

The Teradek Ranger Micro 25003G SDI/HDMI Wireless TX No Mount (10-2541) is a high-performance wireless video transmitter designed for the most demanding broadcast and cinema environments. Delivering uncompressed 1080p60 video with ultra-low latency, the Ranger Micro 2500 transmits video signals up to 2500 feet line-of-sight with maximum reliability. Its compact, fanless design ensures silent operation, making it ideal for handheld rigs and stealth shooting. Supporting both 3G-SDI and HDMI inputs, the unit is compatible with a wide range of professional cameras. The rugged aluminum chassis and advanced RF technology ensure rock-solid performance even in congested wireless environments.
The Key Features of the Teradek Ranger Micro 25003G SDI/HDMI Wireless TX No Mount (10-2541):
- Zero-delay (< 1 ms) wireless video transmission
- Up to 2500 feet line-of-sight range
- Supports both 3G-SDI and HDMI inputs
- Compact, lightweight form factor ideal for mobile setups
- Unlicensed 5GHz spectrum operation
- High-fidelity 10-bit 4:2:2 image quality support
- AES-256 encryption for secure transmission
- Compatible with Ranger RX receivers
- Low power consumption and efficient heat dissipation
- Perfect for use with drones, gimbals, or handheld cameras
The Detailed Specifications for the Teradek Ranger Micro 25003G SDI/HDMI Wireless TX No Mount (10-2541):

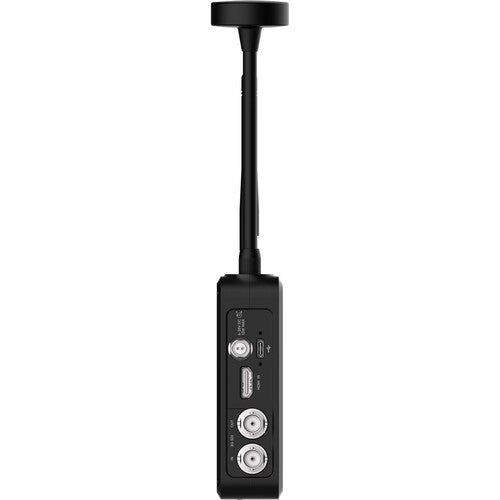

- Video Inputs: 1x HDMI Type-A, 1x 3G-SDI BNC
- Video Resolutions: Up to 1080p60 (HDMI & SDI)
- Latency: Less than 1 millisecond
- Range: Up to 2500 feet (762 meters) line-of-sight
- Frequency Band: 5 GHz (unlicensed)
- Encryption: AES-256 with RSA 1024 Key Exchange
- Power Input: 2-Pin LEMO (6-28V DC)
- Mounting: No mount included (mounting accessories sold separately)
- Construction: Lightweight aluminum chassis
- Dimensions: Approx. 3.1 x 2.4 x 0.9 inches (78 x 60 x 24 mm)
- Weight: Approx. 0.4 lbs (181 g)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
