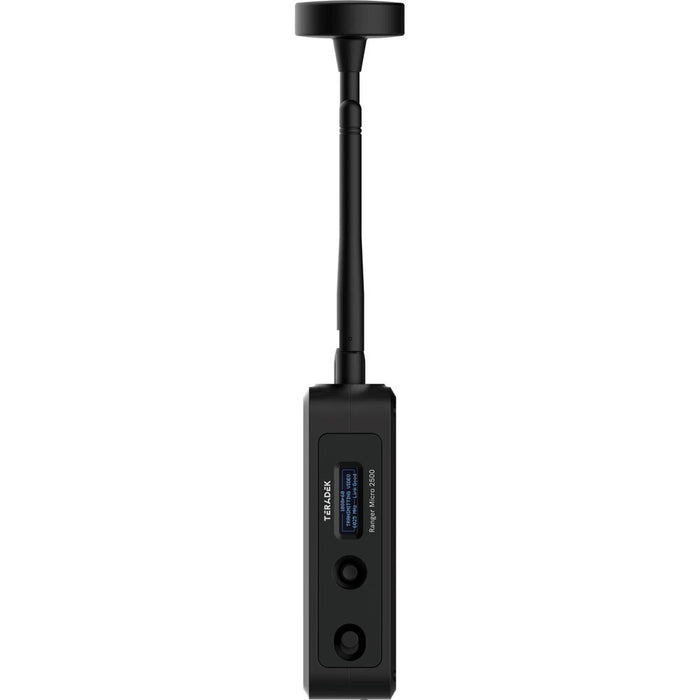

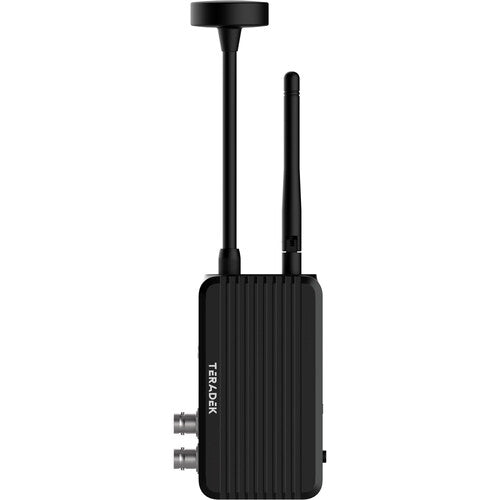

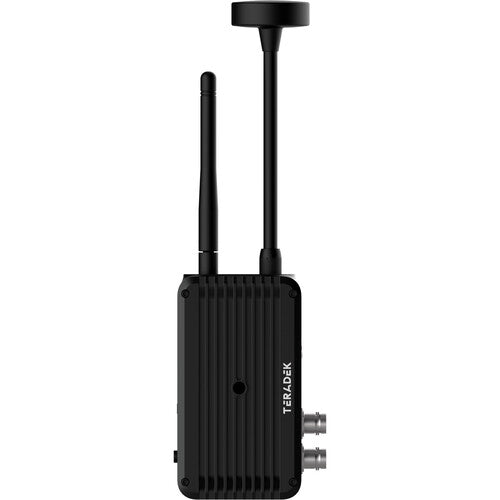

Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless TX No Mount (10-2556)
Original price
$8,990.00
-
Original price
$8,990.00
Original price
$8,990.00
$8,990.00
-
$8,990.00
Current price
$8,990.00
| /
The Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless TX No Mount (10-2556) delivers reliable, uncompressed, zero-delay video transmission for professional broadcast, film, and live production environments. Engineered for extreme performance in compact setups, the Ranger Micro operates on a license-free 5GHz frequency, achieving line-of-sight transmission up to 5,000 feet. Designed with dual video inputs (3G-SDI and HDMI), it offers versatility and rock-solid connectivity in even the most RF-congested environments. The rugged build and fanless design ensure dependable operation with minimal noise, making it ideal for use in dynamic production settings.
The Key Features of the Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless TX No Mount (10-2556):
- Zero-delay wireless video transmission up to 5,000 feet line-of-sight
- Dual input: 3G-SDI and HDMI for maximum flexibility
- Operates on license-free 5GHz frequency band
- Compact, lightweight, and rugged form factor
- Compatible with all Ranger series receivers
- Fanless design for silent operation
- Ideal for handheld rigs, gimbals, and drones
- Uncompressed 10-bit 4:2:2 video transmission
The Detailed Specifications for the Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless TX No Mount (10-2556):
- Model: 10-2556
- Video Inputs: 1 x 3G-SDI, 1 x HDMI 2.0
- Video Format Support: Up to 1080p60 (SDI and HDMI)
- Transmission Range: Up to 5,000 ft (1,524 m) line-of-sight
- Latency: <1 ms (zero-delay)
- Frequency: 5GHz ISM Band (license-free)
- Compatibility: Works with all Teradek Ranger receivers
- Mount: No mount included (optional mounting accessories sold separately)
- Power Input: 2-Pin LEMO (DC 6-28V)
- Dimensions: 2.8” x 4.2” x 0.9” (71 x 107 x 23 mm)
- Weight: 6.4 oz (181 g)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
