Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless TX/RX Deluxe Kit - V Mount (10-2555-V)
Original price
$14,900.00
-
Original price
$14,900.00
Original price
$14,900.00
$14,900.00
-
$14,900.00
Current price
$14,900.00
| /
The Teradek Ranger Micro 5000 3G-SDI/HDMI - Wireless TX/RX Deluxe Kit V Mount (10-2555-V) is a compact, high-performance wireless video system designed for professional film and broadcast applications. Delivering zero-delay, uncompressed 1080p60 video over an ultra-long range of up to 5,000 feet line-of-sight, this kit includes both transmitter and receiver units supporting 3G-SDI and HDMI inputs/outputs. The Ranger Micro 5000 operates on the license-free 5GHz frequency band and features AES-256 encryption to ensure secure and reliable transmission even in the most challenging RF environments. This deluxe V-Mount kit includes power accessories and mounting hardware, making it a complete solution for on-set or remote production use.
The Key Features of the Teradek Ranger Micro 5000 3G-SDI/HDMI - Wireless TX/RX Deluxe Kit V Mount (10-2555-V):
- Supports uncompressed 1080p60 video transmission up to 5,000 feet (1.5 km) line-of-sight
- Dual 3G-SDI and HDMI inputs and outputs for versatile compatibility
- Zero-delay (<1 ms latency) transmission for real-time monitoring
- Robust AES-256 encryption with RSA 1024 key exchange for secure video
- Operates in the 5GHz frequency band with dynamic channel selection
- Compact, lightweight design for use with gimbals, drones, and handheld rigs
- V-Mount battery plate included for integrated power solution
- OLED display for easy status monitoring and setup
- Durable metal chassis built for rugged production environments
The Detailed Specifications for the Teradek Ranger Micro 5000 3G-SDI/HDMI - Wireless TX/RX Deluxe Kit V Mount (10-2555-V):
- Video Input/Output: 3G-SDI (BNC), HDMI Type A
- Video Format Support: Up to 1080p60, 10-bit 4:2:2
- Transmission Range: Up to 5,000 ft / 1.5 km (line-of-sight)
- Latency: Less than 1 ms (zero-delay)
- Encryption: AES-256 with RSA 1024 key exchange
- Frequency Range: 5.1–5.8 GHz (DFS compliant)
- Mounting: V-Mount battery plate (TX & RX units)
- Display: Integrated OLED for system status and configuration
- Power Input: 6-28V DC via 2-pin connector or V-Mount
- Dimensions (TX/RX): Approx. 4.2 x 3.1 x 1.1 in (106 x 79 x 28 mm)
- Weight (TX/RX): Approx. 10 oz (284 g) each
- Operating Temperature: 0°C to 50°C (32°F to 122°F)

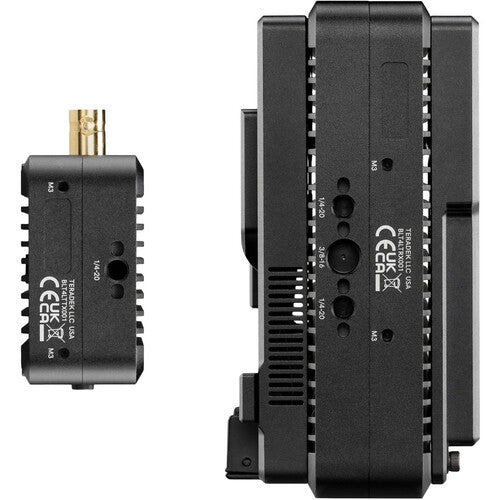

- Mounting Options: 1/4"-20 and 3/8"-16 threaded holes, cold shoe adapter
