Teradek Ranger Micro 750 3G-SDI/HDMI Wireless TX/RX Set – V-Mount (10-2530-V)
Original price
$4,990.00
-
Original price
$4,990.00
Original price
$4,990.00
$4,990.00
-
$4,990.00
Current price
$4,990.00
| /

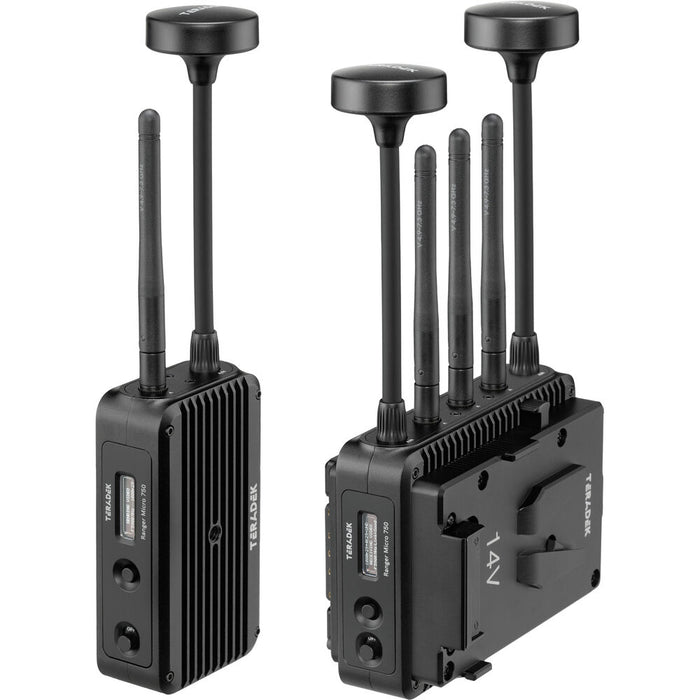

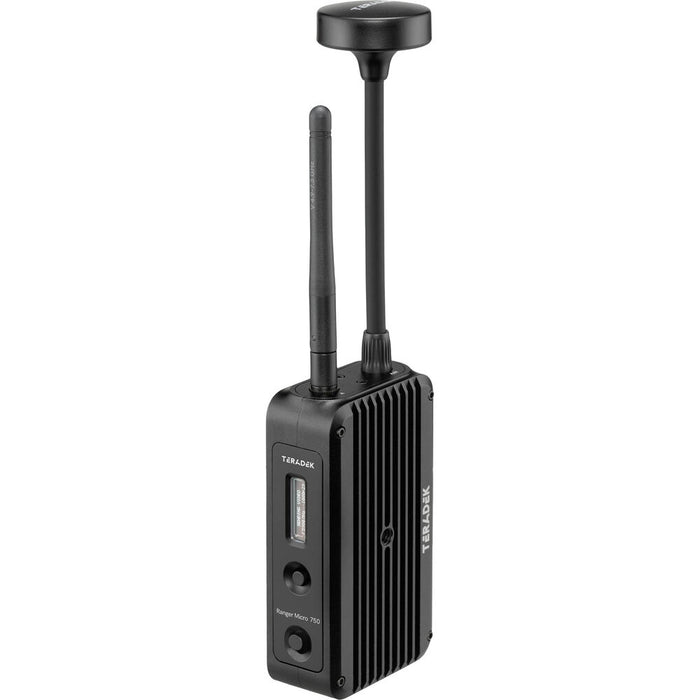

The Teradek Ranger Micro 750 Wireless TX/RX Set with V-Mount (10-2530-V) is a compact, zero-delay wireless video solution designed for professional broadcast and film applications. With a range of up to 750 feet and support for both 3G-SDI and HDMI connections, the Ranger Micro delivers high-quality, uncompressed video transmission in real-time. Engineered for demanding production environments, it operates on the license-free 5GHz band with superior interference resistance, making it ideal for live events, multi-cam shoots, and dynamic on-set monitoring. Its ultra-lightweight form factor and integrated V-Mount battery plate make it a flexible, camera-friendly solution for any workflow.
The Key Features of the Teradek Ranger Micro 750 Wireless TX/RX Set with V-Mount (10-2530-V):
- Zero-delay wireless video transmission up to 750 feet (228 meters)
- Dual 3G-SDI and HDMI input/output for versatile connectivity
- Uncompressed, 10-bit 4:2:2 video quality
- Operates in license-free 5GHz spectrum with adaptive frequency hopping
- Ultra-compact design optimized for handheld and gimbal-mounted cameras
- Integrated V-Mount battery plate for mobile power solutions
- Robust encryption and channel bonding for signal reliability
- Compatible with Teradek Ranger ecosystem for scalable deployment
The Detailed Specifications for the Teradek Ranger Micro 750 Wireless TX/RX Set with V-Mount (10-2530-V):
- Video Inputs: 1 x 3G-SDI, 1 x HDMI (TX)
- Video Outputs: 1 x 3G-SDI, 1 x HDMI (RX)
- Resolution Support: Up to 1080p60
- Transmission Range: Up to 750 feet line-of-sight
- Latency: Less than 1 millisecond (zero-delay)
- Frequency Band: 5GHz ISM (U-NII-1 to U-NII-4)
- Encryption: AES-128 for secure video transmission

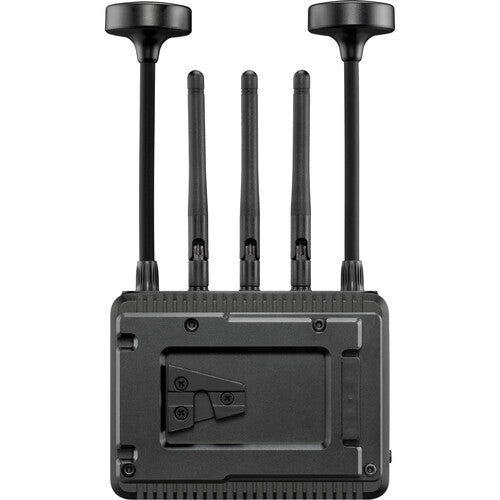

- Mount Type: V-Mount battery plate on both TX and RX
- Power Input: 6-28V DC (2-Pin LEMO)
- Dimensions (TX): 3.1 x 2.4 x 1.2 inches (78.7 x 61 x 30.5 mm)
- Dimensions (RX): 3.5 x 2.6 x 1.2 inches (88.9 x 66 x 30.5 mm)
- Weight: 6.6 oz (TX), 7.4 oz (RX)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
