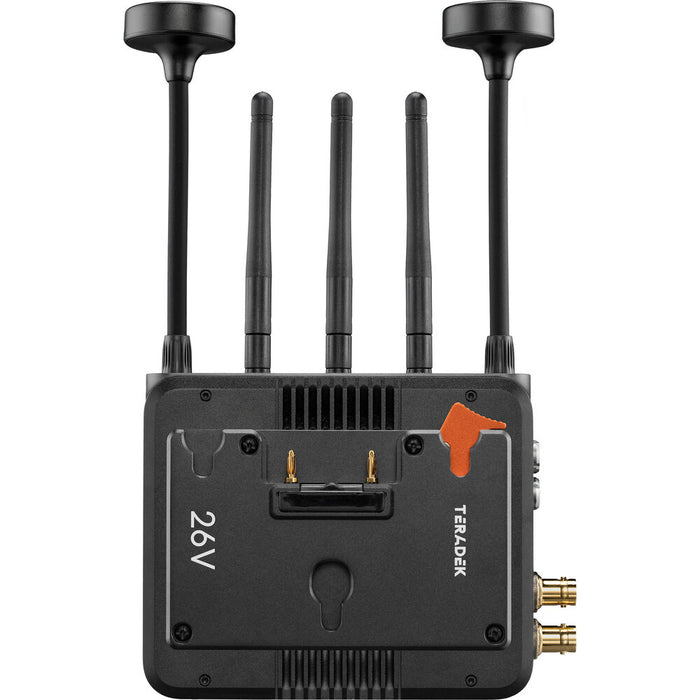

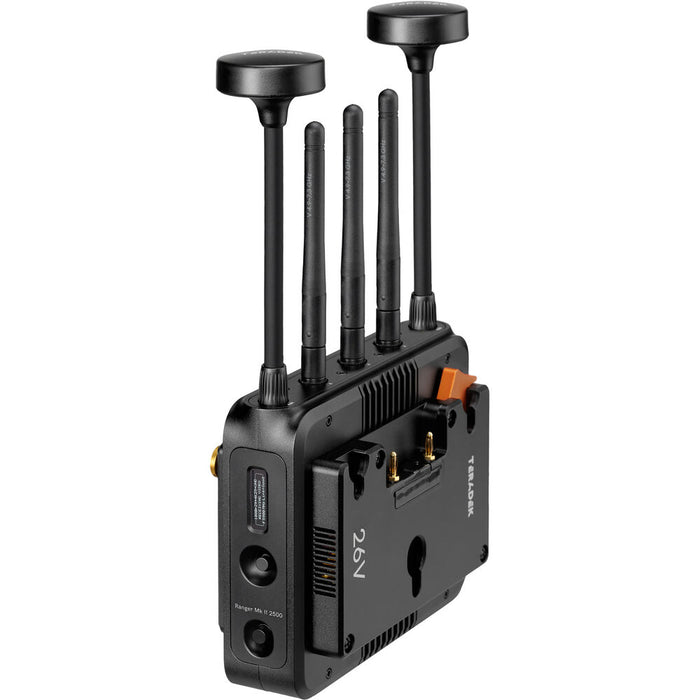

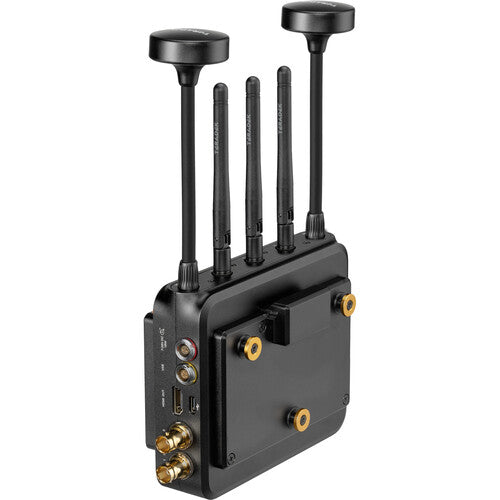

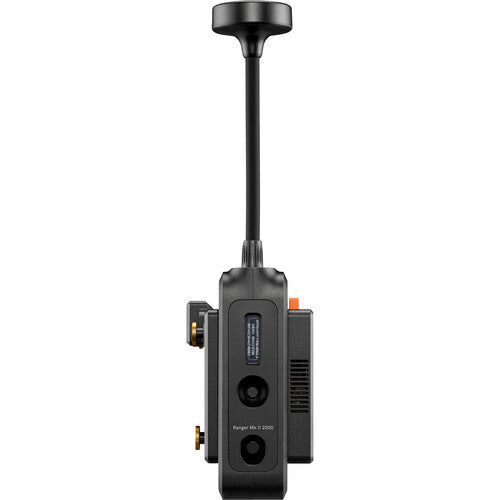

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless RX 26V Gold Mount (10-2592-G26)
Original price
$5,990.00
-
Original price
$5,990.00
Original price
$5,990.00
$5,990.00
-
$5,990.00
Current price
$5,990.00
| /
The Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless RX 26V Gold Mount (10-2592-G26) is built for high-end broadcast and cinema applications, delivering zero-delay wireless video up to 2500 feet line of sight. Featuring 12G-SDI and HDMI outputs, this receiver is compatible with a wide range of professional equipment. Its robust design supports 26V power via a Gold Mount battery plate, making it ideal for field use on large-scale productions. The MK II version enhances reliability and RF performance, ensuring crystal-clear transmission even in challenging environments.
The Key Features of the Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless RX 26V Gold Mount (10-2592-G26):
- Supports up to 4Kp60 via 12G-SDI and HDMI outputs
- Long-range transmission up to 2500 ft (line of sight)
- Zero-delay (sub-1 ms) wireless video for real-time monitoring
- Gold Mount plate for 26V power compatibility
- Low-SWaP design for energy efficiency and compact deployment
- Reliable connectivity in crowded RF environments with DFS support
- Encrypted transmission for secure video delivery
- Compatible with all Teradek Ranger MK II series transmitters
The Detailed Specifications for the Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless RX 26V Gold Mount (10-2592-G26):

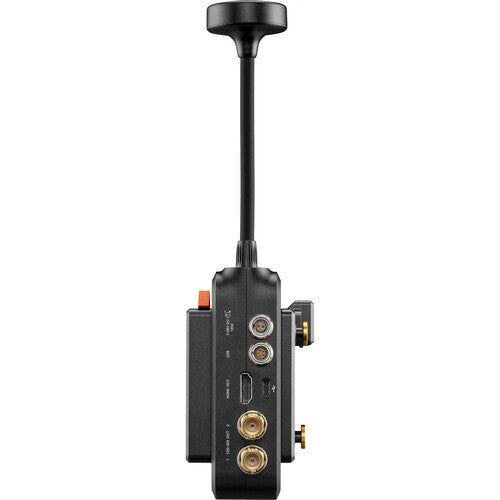

- Video Outputs: 1 x 12G-SDI (BNC), 1 x HDMI 2.0
- Supported Video Resolutions: Up to 4Kp60 (4:2:2 10-bit)
- Latency: <1 ms (zero-delay)
- Transmission Range: Up to 2500 ft (762 m) line of sight
- Frequency Bands: 5 GHz DFS and non-DFS compliant
- Mounting: Gold Mount battery plate (26V compatible)
- Power Input: 2-pin LEMO (DC 6-34V)
- Build: Aircraft-grade aluminum chassis
- Compatibility: Ranger MK II series transmitters only
- Dimensions: Approx. 5.1” x 3.0” x 1.3” (without antennas)
- Weight: Approx. 1.5 lbs (excluding battery)
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
