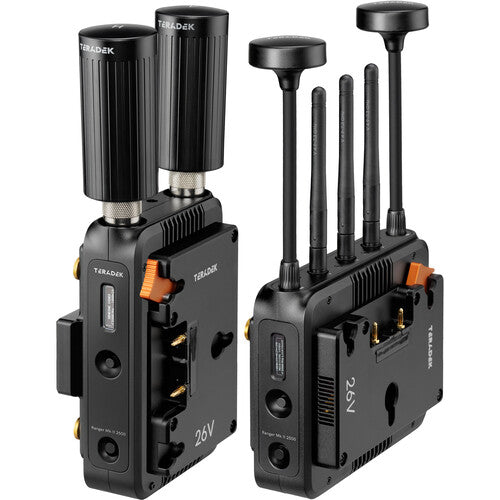

The Teradek Ranger MK II 2500 12G SDI/HDMI Wireless TX/RX Deluxe Kit 26V Gold Mount (10-2590-G26) is a premium, high-performance wireless video transmission system engineered for professional film and broadcast productions. Designed to deliver uncompressed, zero-delay 4K HDR video over 12G-SDI or HDMI up to 2500 feet line-of-sight, this kit ensures reliable and interference-free communication with DFS-compliant frequencies. The kit includes both a transmitter and receiver housed in rugged, weather-resistant enclosures and features a 26V Gold Mount battery plate for extended field operation. Built for demanding sets, the Ranger MK II 2500 offers AES-256 encryption, seamless integration with industry tools, and real-time monitoring capabilities, making it a trusted choice for DITs, camera operators, and directors alike.
The Key Features of the Teradek Ranger MK II 2500 12G SDI/HDMI Wireless TX/RX Deluxe Kit 26V Gold Mount (10-2590-G26):
- 2500 feet of line-of-sight 4K wireless video transmission
- Supports uncompressed 4Kp60 video via 12G-SDI and HDMI
- Ultra-low latency (<1ms) for real-time monitoring and control
- Integrated AES-256 encryption for secure video feeds
- Rugged design with weather-resistant enclosures
- Dual-band 5GHz operation with DFS-compliant frequency scanning
- 26V Gold Mount battery compatibility for extended runtime
- Built-in Spectrum Analyzer and Wireless Manager software support
- Timecode and metadata pass-through for seamless post-production
- Includes transmitter and receiver with accessories in Deluxe Kit
The Detailed Specifications for the Teradek Ranger MK II 2500 12G SDI/HDMI Wireless TX/RX Deluxe Kit 26V Gold Mount (10-2590-G26):
- Video Input: 1 x 12G-SDI, 1 x HDMI 2.0
- Video Output: 1 x 12G-SDI loop-through (TX), 2 x 12G-SDI, 1 x HDMI 2.0 (RX)
- Max Video Resolution: Up to DCI 4Kp60
- Latency: <1ms (zero-delay)
- Range: Up to 2500 feet (line-of-sight)
- Encryption: AES-256 with RSA 1024 key pairing
- RF Spectrum: 4.9GHz – 6.0GHz, DFS compliant
- Power Input: 2-pin LEMO, 6-28V DC; 26V Gold Mount battery plate
- Mounting: 1/4"-20 and ARRI-style mounting points
- Dimensions: TX: 5.7 x 3.1 x 1.2 in; RX: 6.1 x 4.3 x 1.4 in
- Weight: TX: 1.1 lb; RX: 1.5 lb
- Operating Temperature: -20°C to 50°C
- Kit Includes: Transmitter, Receiver, Antennas, Power Cables, Carry Case
