Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless TX V Mount (10-2591-V)
Original price
$7,990.00
-
Original price
$7,990.00
Original price
$7,990.00
$7,990.00
-
$7,990.00
Current price
$7,990.00
| /
The Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless TX V Mount (10-2591-V) is engineered for mission-critical video transmission on high-end productions. Delivering ultra-low latency and zero-delay 4K HDR wireless video, this transmitter supports a robust 12G-SDI and HDMI interface. Designed for field reliability and broadcast-grade performance, the Ranger MK II offers a remarkable line-of-sight range of up to 2500 feet and operates over the license-free 5GHz and 6GHz frequencies. It’s housed in a rugged chassis and includes an integrated V-Mount battery plate for seamless on-camera power solutions, making it ideal for demanding live events, film sets, and remote broadcast environments.
The Key Features of the Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless TX V Mount (10-2591-V):
- Zero-delay 4K HDR wireless video transmission
- Supports both 12G-SDI and HDMI inputs
- Line-of-sight range up to 2500 feet
- Operates over license-free 5GHz and 6GHz bands

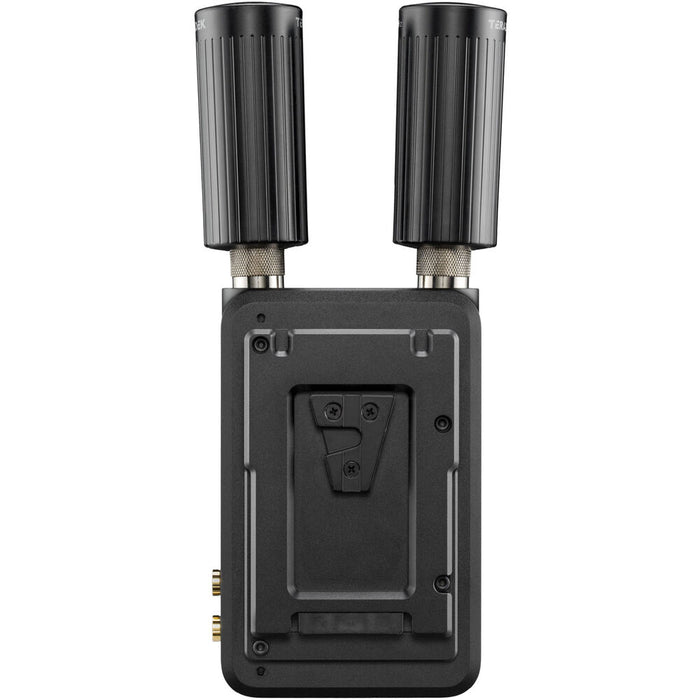

- Integrated V-Mount battery plate for camera power
- Robust design optimized for field and studio use
- Compatible with Teradek Ranger receivers
- Ideal for live production, film, and broadcast workflows
The Detailed Specifications for the Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless TX V Mount (10-2591-V):

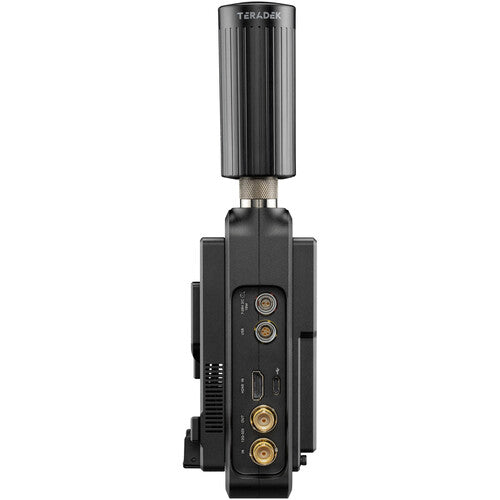

- Video Input: 1 x 12G-SDI, 1 x HDMI 2.0
- Video Format Support: Up to 4Kp60 (SDI and HDMI)
- Wireless Range: Up to 2500 ft (762 m) line-of-sight
- Wireless Frequency: 5GHz and 6GHz (U-NII-5)
- Latency: < 1 ms (zero-delay)
- Power Input: V-Mount battery plate, 6-28V DC
- Mounting: 1/4"-20 and 3/8"-16 mounting points
- Dimensions: Approx. 6.0 x 4.5 x 1.5 inches
- Weight: Approx. 1.5 lbs (without battery)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
