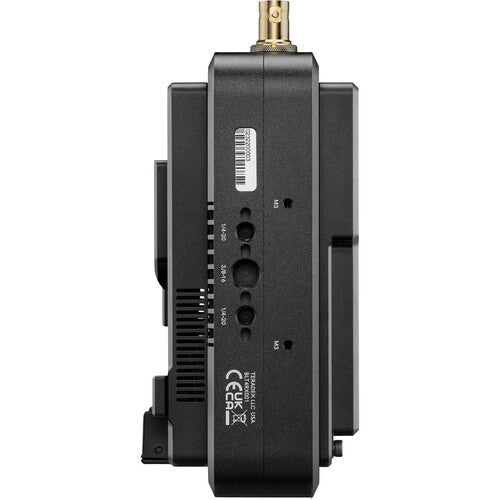

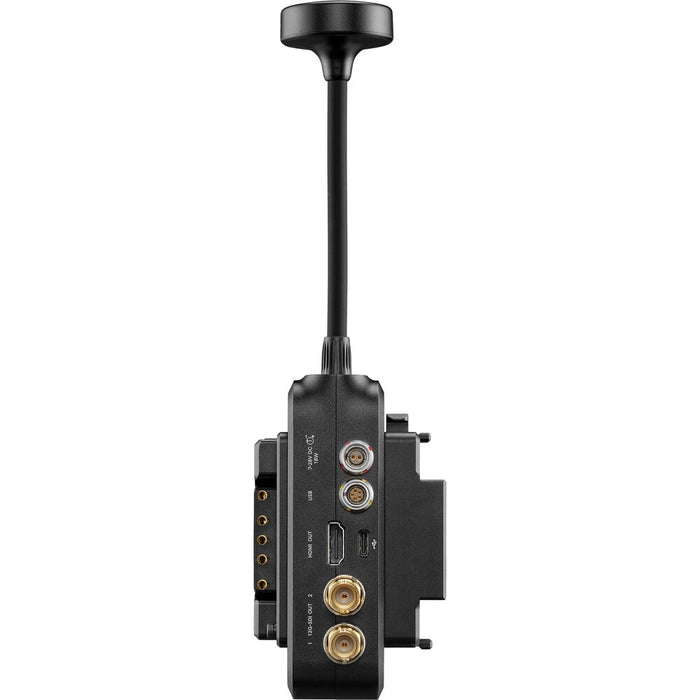

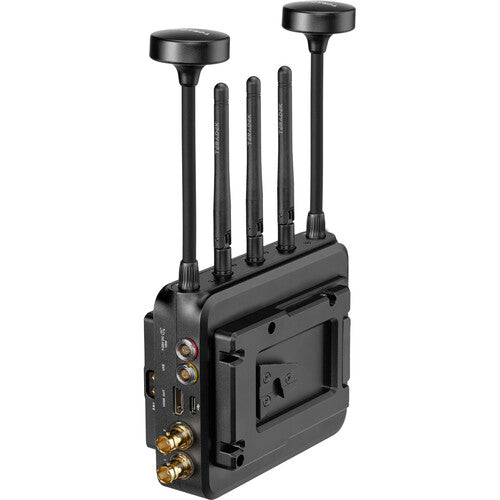

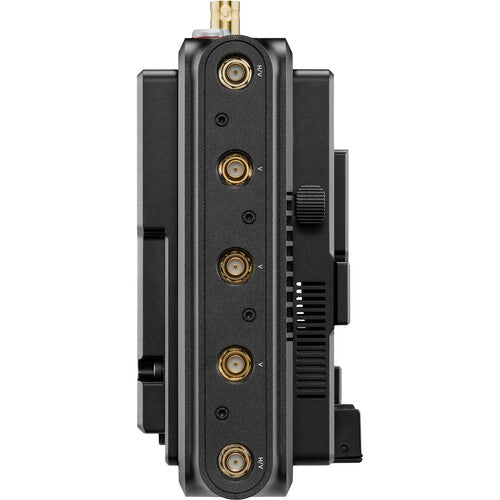

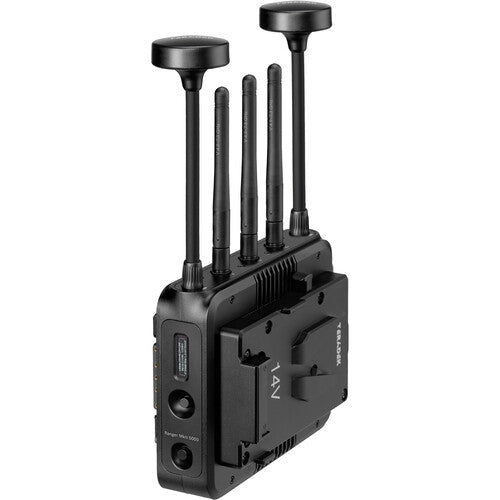

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless RX V Mount (10-2597-V)
Original price
$6,990.00
-
Original price
$6,990.00
Original price
$6,990.00
$6,990.00
-
$6,990.00
Current price
$6,990.00
| /
The Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless RX V-Mount (10-2597-V) delivers unmatched zero-delay wireless video reception in stunning 4K HDR quality. Engineered for the most demanding broadcast and cinema applications, the Ranger MK II 5000 RX is optimized for ultra-long-range reliability up to 5,000 feet line-of-sight. Featuring support for both 12G-SDI and HDMI outputs, it ensures compatibility across professional workflows, while operating over the secure and interference-resistant 5GHz and 6GHz bands. Its rugged V-Mount battery plate allows seamless integration into production setups. The Ranger MK II also includes AES-256 encryption for secure transmission, ideal for high-end productions where image fidelity and security are critical.
The Key Features of the Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless RX V-Mount (10-2597-V):
- Zero-delay wireless video transmission (less than 1ms latency)
- Supports up to 4Kp60 HDR via 12G-SDI and HDMI outputs
- Operational range up to 5,000 feet (1.5 km) line-of-sight
- Dual-band operation over 5GHz and 6GHz (where supported)
- V-Mount battery plate for field-ready power integration
- High-efficiency RF design with improved video link stability
- 128-bit AES and 256-bit encryption for secure video streams
- Intuitive OLED display and control interface
- Rugged, compact aluminum chassis for professional durability
- Compatible with Ranger MK II transmitters
The Detailed Specifications for the Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless RX V-Mount (10-2597-V):
- Model Number: 10-2597-V
- Video Outputs: 1x 12G-SDI BNC, 1x HDMI 2.0
- Supported Resolutions: Up to 4Kp60 (12G-SDI), 1080p60 (HDMI)
- Wireless Range: Up to 5,000 ft (1.5 km) line-of-sight
- RF Bands: 5GHz and 6GHz (UNII-5 / UNII-7 where permitted)
- Latency: Less than 1 millisecond
- Encryption: AES-128, AES-256
- Mount Type: Integrated V-Mount battery plate
- Power Input: 2-pin LEMO (6-28V DC)
- Dimensions: 3.4” x 5.4” x 1.3” (86mm x 137mm x 33mm)
- Weight: Approx. 1.2 lbs (544g)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
