Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless TX/RX Deluxe Kit 26V Gold Mount (10-2595-G26)
Original price
$16,490.00
-
Original price
$16,490.00
Original price
$16,490.00
$16,490.00
-
$16,490.00
Current price
$16,490.00
| /

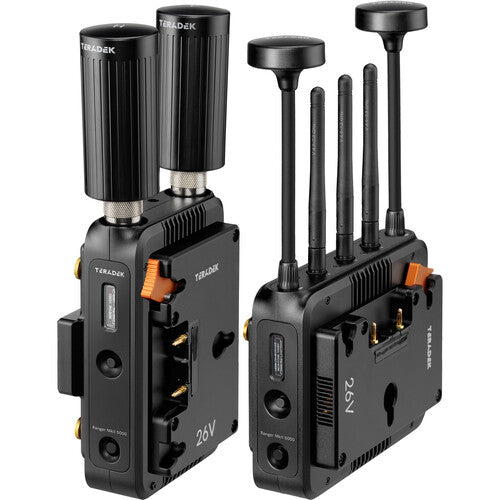

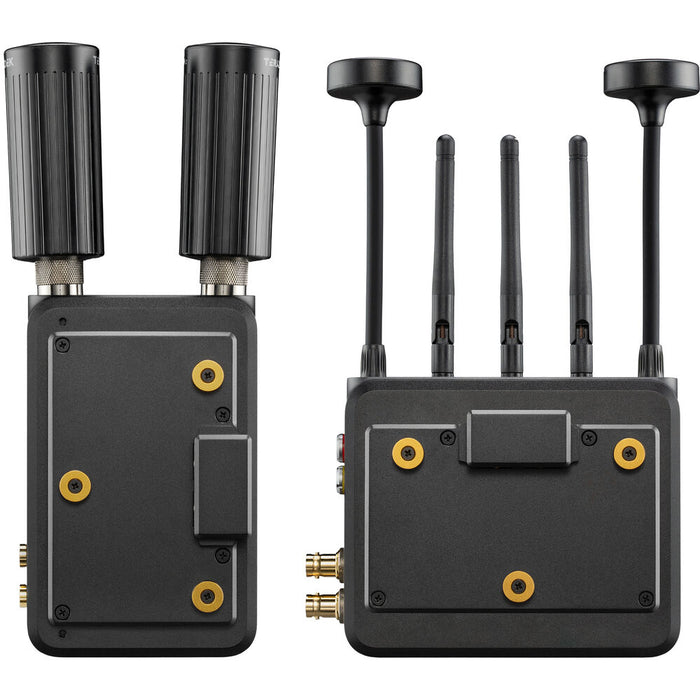

The Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless TX/RX Deluxe Kit 26V Gold Mount (10-2595-G26) is designed for professionals seeking uncompromised wireless video performance in high-end cinema, broadcast, and live production. Capable of transmitting uncompressed, zero-delay video up to 5,000 feet line-of-sight, the Ranger MK II ensures reliable, high-fidelity signal integrity over the 5GHz and 6GHz UNII-5 bands (where supported). With 12G-SDI and HDMI inputs and outputs, this system is perfect for workflows requiring ultra-high definition video up to 4Kp60. Integrated Gold Mount battery plates support 26V power systems, ideal for power-hungry camera builds. Built for rugged field use, the Ranger MK II features AES-256 encryption, smart channel scanning, and intuitive user controls through the onboard interface or the Teradek app.
The Key Features of the Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless TX/RX Deluxe Kit 26V Gold Mount (10-2595-G26):
- Uncompressed zero-delay wireless video up to 5,000 feet line-of-sight
- 12G-SDI and HDMI inputs/outputs support up to 4Kp60 resolution
- Operates on 5GHz and 6GHz (UNII-5) frequency bands
- AES-256 encryption and RSA 1024 key exchange for secure transmissions

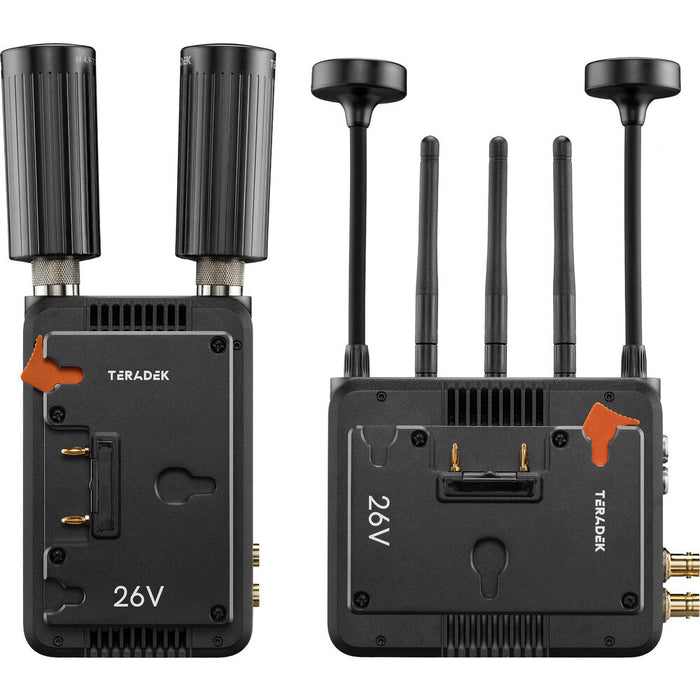

- Gold Mount battery plates support 26V for high-power workflows
- Robust build quality for demanding on-set environments
- Low power consumption with high-efficiency performance
- Real-time spectrum analysis and dynamic frequency selection
- Control and monitoring via Teradek app or integrated display
The Detailed Specifications for the Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless TX/RX Deluxe Kit 26V Gold Mount (10-2595-G26):
- Transmission Distance: Up to 5,000 ft (line-of-sight)

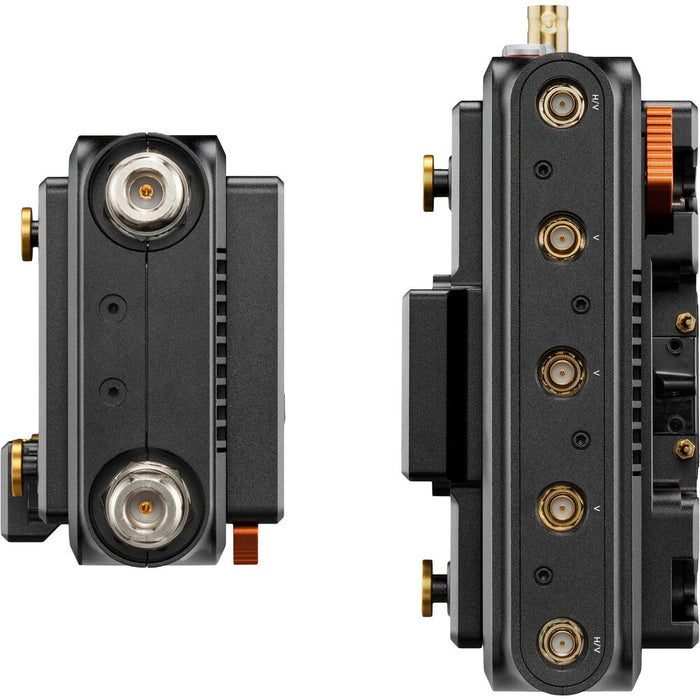

- Video Input: 1x 12G-SDI, 1x HDMI 2.0 (TX unit)
- Video Output: 2x 12G-SDI, 1x HDMI 2.0 (RX unit)
- Supported Resolutions: Up to 4Kp60 (4096x2160)
- Latency: <1 millisecond (zero-delay)
- Encryption: AES-256 with RSA 1024 key exchange
- Wireless Frequencies: 5GHz and 6GHz (where available)
- RF Power: Adjustable up to 23 dBm
- Mount Type: 26V Gold Mount battery plates

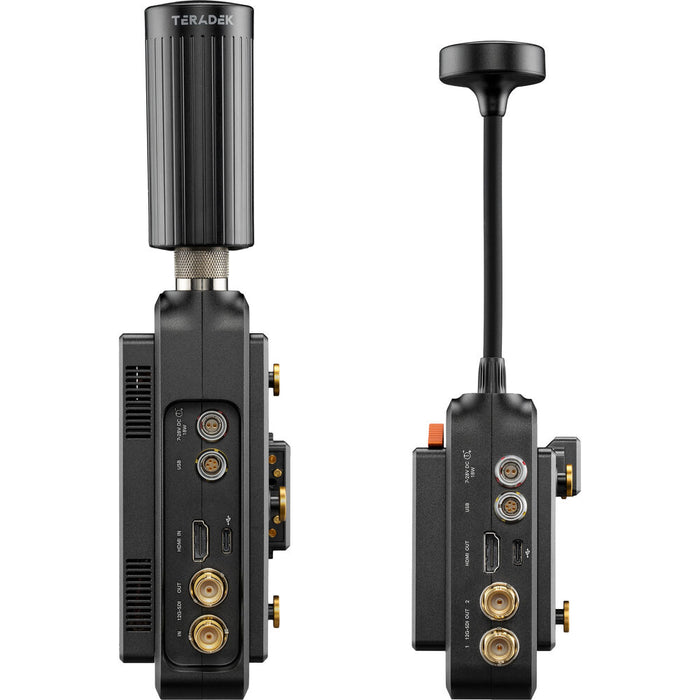

- Power Input: 6-28V DC via 2-pin LEMO
- Power Consumption: Approx. 10W (TX), 9W (RX)
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Construction: Anodized aluminum enclosure
- Control Options: Onboard UI, Bluetooth, or Teradek App (iOS/Android)
- Dimensions (TX): 4.9” x 3.1” x 1.2”
- Dimensions (RX): 5.3” x 3.3” x 1.4”
- Weight: TX - 1.1 lbs; RX - 1.3 lbs
