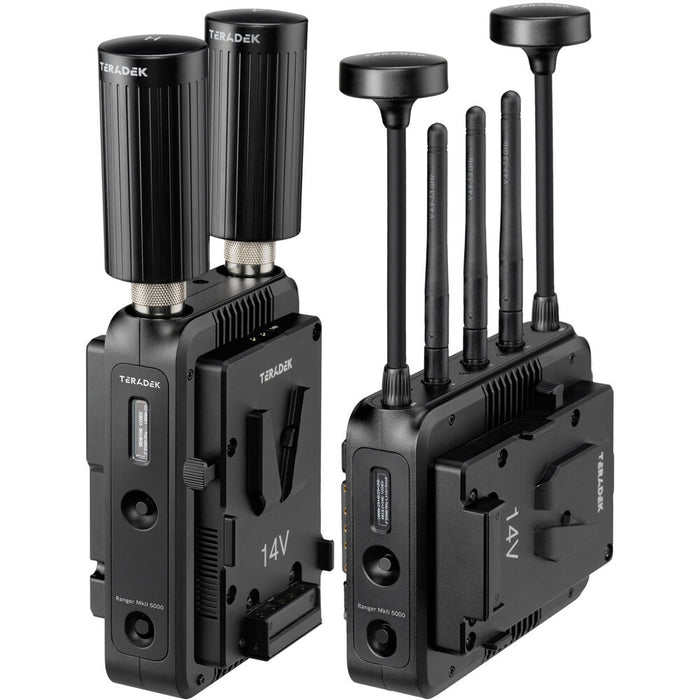

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless TX/RX Deluxe Kit V Mount (10-2595-V)
Original price
$16,490.00
-
Original price
$16,490.00
Original price
$16,490.00
$16,490.00
-
$16,490.00
Current price
$16,490.00
| /
The Teradek Ranger MK II 5000 12G SDI/HDMI Wireless TX/RX Deluxe Kit V Mount (10-2595-V) is a cutting-edge wireless video transmission solution built for high-end cinematic and broadcast applications. Designed for uncompromised image quality, this kit includes both a transmitter and receiver with support for 12G-SDI and HDMI connectivity, enabling real-time transmission of uncompressed 4K HDR video over distances up to 5000 feet line of sight. Engineered with Teradek’s patented zero-delay RF technology, it ensures rock-solid performance and reliability even in the most demanding RF environments. The V-Mount battery plate offers convenient powering in the field, making it ideal for professional on-set workflows.
The Key Features of the Teradek Ranger MK II 5000 12G SDI/HDMI Wireless TX/RX Deluxe Kit V Mount (10-2595-V):
- Zero-delay wireless transmission up to 5000 ft line of sight
- Supports uncompressed 4Kp60 HDR video over 12G-SDI and HDMI
- 12G-SDI input/output with cross-conversion to HDMI
- Advanced 5GHz and 6GHz frequency support with DFS compatibility
- Built-in spectrum analyzer and signal quality tools
- Low power consumption with active and passive cooling
- Secure AES-256 encryption and RSA 1024 key pairing
- Durable aluminum chassis with V-Mount battery plate
- Multicast support to unlimited receivers with Ranger RX
- Intuitive front panel with OLED display for quick setup
The Detailed Specifications for the Teradek Ranger MK II 5000 12G SDI/HDMI Wireless TX/RX Deluxe Kit V Mount (10-2595-V):
- Video Inputs: 1 x 12G-SDI, 1 x HDMI 2.0 (TX)
- Video Outputs: 2 x 12G-SDI, 1 x HDMI 2.0 (RX)
- Resolution Support: Up to 4Kp60, 10-bit 4:2:2 HDR
- Latency: Less than 1 ms
- Wireless Range: Up to 5000 ft line of sight
- Frequencies: 5GHz / 6GHz (including DFS channels)
- Encryption: AES-256 with RSA 1024 key exchange
- Multicast Capability: Up to unlimited RX (with Ranger RX)
- Power Input: 2-pin LEMO, V-Mount battery plate
- Mounting: 1/4"-20 and 3/8"-16 threads on both TX and RX
- Dimensions (TX): 6.38 x 3.19 x 1.43 in
- Dimensions (RX): 7.15 x 4.68 x 1.34 in
- Weight (TX): 1.6 lbs / (RX): 2.1 lbs
- Construction: Milled aluminum chassis
