Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless TX V Mount (10-2596-V)
Original price
$9,990.00
-
Original price
$9,990.00
Original price
$9,990.00
$9,990.00
-
$9,990.00
Current price
$9,990.00
| /
The Teradek Ranger MK II 5000 12G SDI/HDMI Wireless TX V Mount (10-2596-V) is a cutting-edge, zero-delay wireless video transmitter designed for high-end professional productions. Supporting up to 4Kp60 via 12G-SDI and HDMI, the Ranger MK II 5000 delivers uncompressed, real-time video transmission at distances up to 5,000 feet line-of-sight. Built with robust RF resiliency and military-grade AES-256 encryption, it ensures secure and interference-free transmission in the most challenging environments. The rugged chassis and integrated V Mount plate make it ideal for on-the-go use in large-scale broadcast and film operations.
The Key Features of the Teradek Ranger MK II 5000 12G SDI/HDMI Wireless TX V Mount (10-2596-V):
- Uncompressed zero-delay video transmission up to 5,000 ft (1,524 m)
- 12G-SDI and HDMI inputs supporting up to 4Kp60 video
- Compatible with Ranger MK II receivers
- Integrated V Mount battery plate for mobile power solutions
- AES-256 encryption and RSA 1024 key exchange for secure video transmission
- Robust RF design for superior performance in interference-heavy environments
- Operates in the 5GHz and UNII-5 (6GHz) frequency bands
- Low-profile, lightweight aluminum housing built for field durability
The Detailed Specifications for the Teradek Ranger MK II 5000 12G SDI/HDMI Wireless TX V Mount (10-2596-V):
- Video Input: 1x 12G-SDI, 1x HDMI 2.0
- Supported Resolutions: Up to 4Kp60
- Latency: < 1 ms (zero-delay)
- Wireless Range: Up to 5,000 ft (1,524 m) line-of-sight
- Encryption: AES-256 with RSA 1024 key exchange

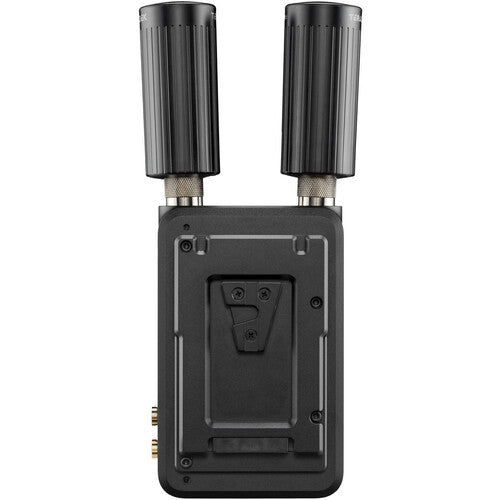

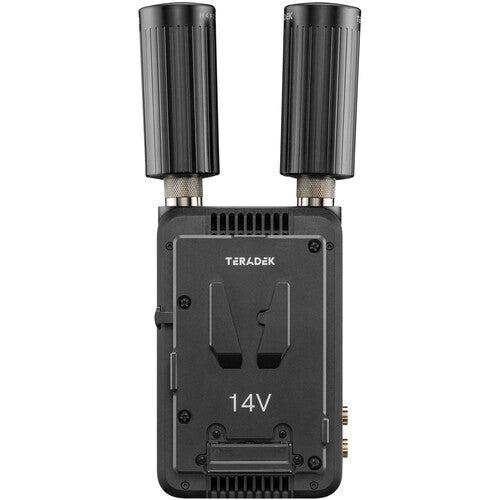

- Mount Type: V Mount battery plate
- Frequency Bands: 5GHz, UNII-5 (6GHz)
- Construction: Rugged aluminum chassis
- Dimensions: Approx. 5.0 x 3.1 x 1.0 in (127 x 78.7 x 25.4 mm)
- Weight: Approx. 1.2 lbs (544 g)
- Power Input: 6-28V DC via 2-pin LEMO or battery plate
- Compatibility: Works with Ranger MK II RX models
