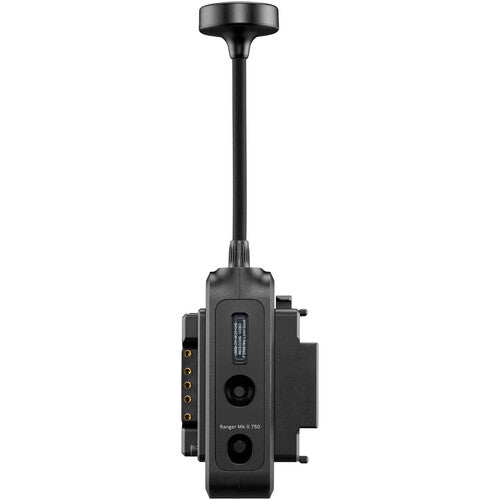

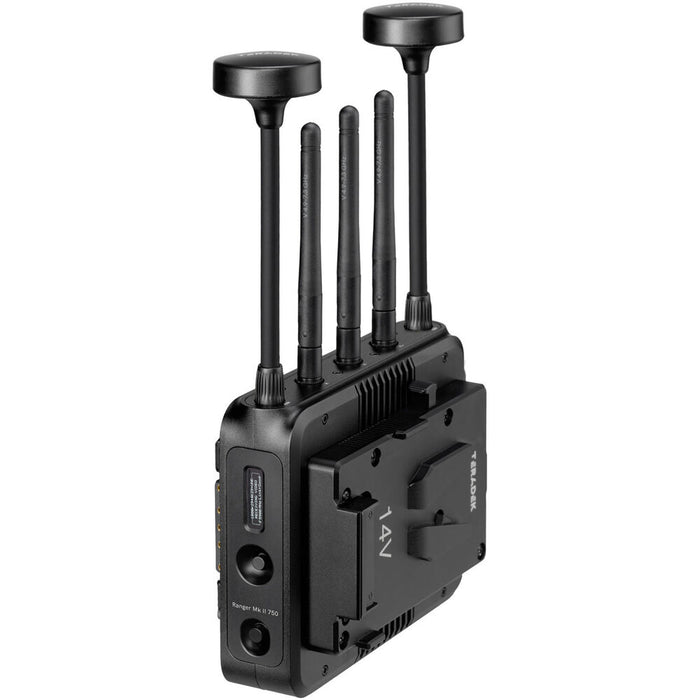

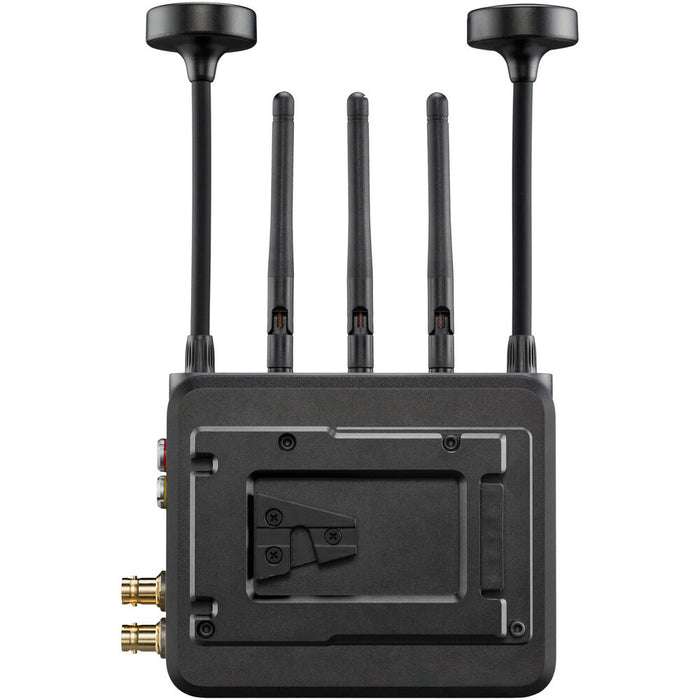

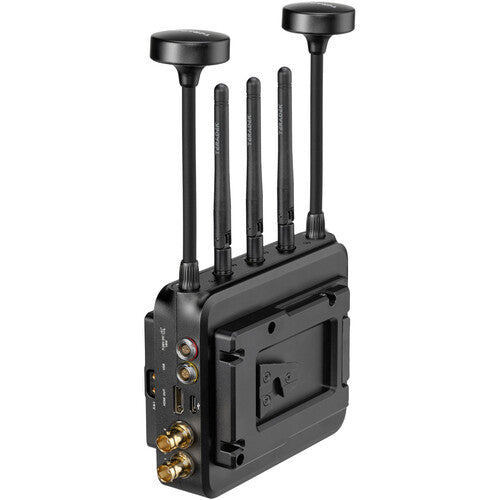

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless RX V Mount (10-2582-V)
Original price
$3,490.00
-
Original price
$3,490.00
Original price
$3,490.00
$3,490.00
-
$3,490.00
Current price
$3,490.00
| /
The Teradek Ranger MK II 750 12G-SDI/HDMI Wireless RX V Mount (10-2582-V) delivers professional-grade zero-delay video transmission for high-end productions. Supporting uncompressed 4K HDR video over 12G-SDI and HDMI up to 750 feet with line-of-sight, it ensures pristine image quality and low-latency performance in mission-critical environments. With advanced interference mitigation, AES-256 encryption, and dual-band operation, the Ranger MK II is designed to meet the rigorous demands of broadcast, film, and live event applications. The V-Mount power plate adds compatibility with industry-standard battery systems, enhancing on-set mobility and convenience.
The Key Features of the Teradek Ranger MK II 750 12G-SDI/HDMI Wireless RX V Mount (10-2582-V):
- Zero-delay wireless video transmission up to 750 ft (228 m) line-of-sight
- Supports 4Kp60 HDR video via 12G-SDI and HDMI
- Professional-grade video quality with zero compression artifacts
- Dual-band operation (5GHz and 6GHz) for robust signal stability
- Secure AES-256 encryption with RSA 1024 key exchange
- Integrated V-Mount battery plate for on-camera power
- Automatic channel selection and real-time spectrum analysis
- Interoperable with Teradek Ranger and Prism series
- Durable, weather-resistant housing for demanding environments
The Detailed Specifications for the Teradek Ranger MK II 750 12G-SDI/HDMI Wireless RX V Mount (10-2582-V):
- Video Input: HDMI 2.0, 12G-SDI
- Video Output: HDMI 2.0, 12G-SDI
- Supported Resolutions: Up to 4Kp60 (10-bit 4:2:2)
- Wireless Range: Up to 750 ft (228 m) line-of-sight
- Latency: <1 ms (zero-delay)
- Frequency Bands: 5GHz & 6GHz (region-dependent)
- Encryption: AES-256 with RSA 1024 key pairing
- Power Input: V-Mount battery plate, 2-pin LEMO (7–34V DC)
- Mounting Options: 1/4"-20 and 3/8"-16 threaded holes
- Chassis: Rugged aluminum enclosure, weather-resistant design
- Compatibility: Works with Ranger MK II transmitters and Prism systems
- Weight: Approx. 1.7 lbs (0.77 kg)
- Dimensions: 5.1 x 3.3 x 1.1 in (130 x 84 x 28 mm)
