CamGear Elite 20 Fluid Head for professional video and broadcast applications

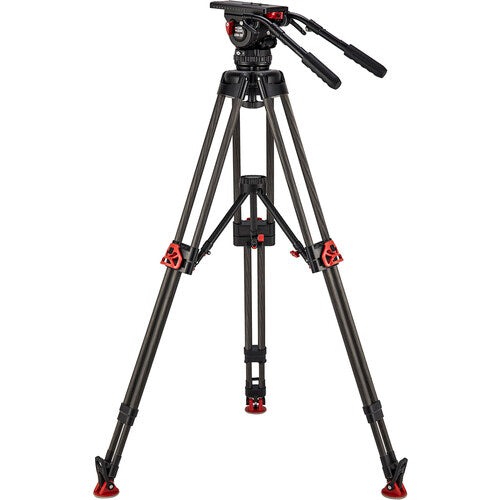

Camgear EFP CF/MS Carbon Fiber Tripod with Mid-Level Spreader & Elite 20 Fluid Head System

by Camgear
Availability:
In stock 3-5 days
$7,395.00 - $7,395.00
$7,395.00
$7,395.00 - $7,395.00
$7,395.00

SKU: CMG-EL20-EFP-MS-CF-TRISYS

MODEL: ELITE 20 EFP CF MS


  • Overview
  • Features
  • Specifications

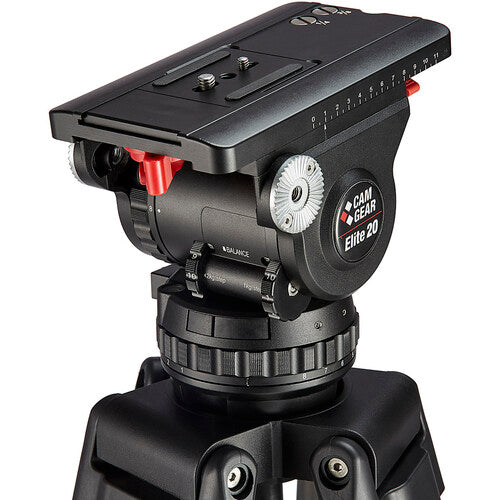

The CamGear Elite 20 EFP CFMS Camera Tripod System is a professional-grade fluid head engineered for demanding video production environments. Designed with precision fluid drag and counterbalance systems, it ensures ultra-smooth pan and tilt movements, even under heavy loads. The 100mm bowl mount and durable aluminum construction make it ideal for ENG, EFP, studio, and field production workflows. With a payload capacity of up to 26.5 lbs (12 kg), the Elite 20 delivers stability, control, and ergonomic handling, meeting the needs of professional camera operators and cinematographers.

The Key Features of the CamGear Elite 20 EFP CFMS Camera Tripod System:

  • Supports payloads up to 26.5 lbs (12 kg)
  • 100mm bowl mount for secure tripod integration
  • Continuous counterbalance for precise camera balance
  • Seven-step fluid drag system for smooth pan and tilt control
  • Durable aluminum construction for long-lasting performance
  • Dual pan bar rosettes with one pan bar included
  • Illuminated leveling bubble for quick alignment in low light
  • Sliding camera plate with safety lock mechanism

The Detailed Specifications for the CamGear Elite 20 EFP CFMS Camera Tripod System:

  • Model: CMG-EL20-FLHEAD
  • Payload Capacity: 8.8 to 26.5 lbs (4 to 12 kg)
  • Counterbalance System: Continuous
  • Pan Drag: 7 steps + 0 (free)
  • Tilt Drag: 7 steps + 0 (free)
  • Tilt Range: -70° to +90°
  • Camera Plate: Sliding plate with 1/4"-20 and 3/8"-16 screws
  • Bowl Diameter: 100mm
  • Pan Bar: One included, mountable on either side
  • Leveling: Illuminated bubble level
  • Material: High-strength aluminum alloy
  • Weight: Approx. 6.2 lbs (2.8 kg)
