AJA OG-3G-AMA openGear-compatible 3G-SDI analog audio embedder/disembedder card with rear I/O, designed for integration of analog audio in SDI workflows.

AJA openGear 8-Channel 3G-SDI Analog Audio Embedder/Disembedder with DashBoard Support

by AJA
Availability:
In stock 3-5 days
$1,460.00 - $1,460.00
$1,460.00
$1,460.00 - $1,460.00
$1,460.00

MODEL: OG-3G-AMA

SKU:  OG-3G-AMA
  • Overview
  • Features
  • Specifications

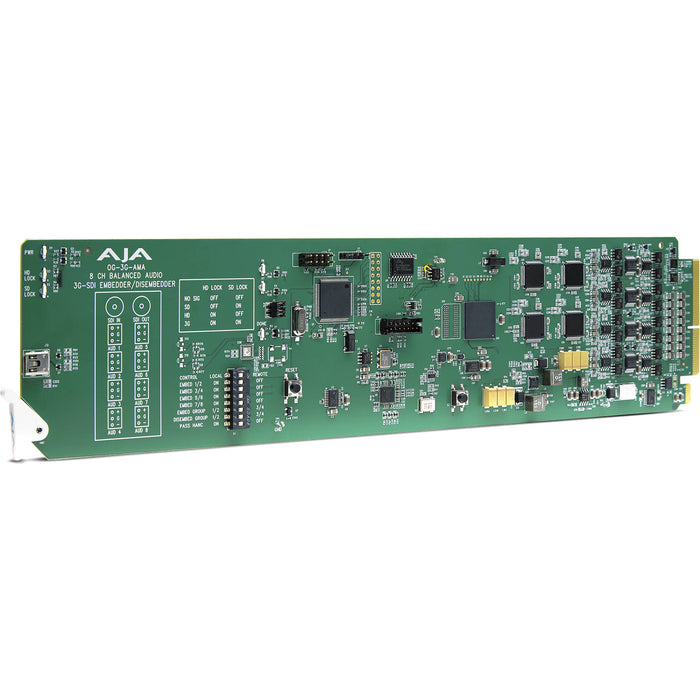

The AJA OG-3G-AMA is an openGear-compatible analog audio embedder and disembedder that supports 3G-SDI video and up to 4 channels of balanced analog audio. Designed for use in openGear 2RU frames, it offers high-quality audio integration for professional broadcast and production environments.

  • openGear-compatible audio embedder/disembedder module
  • Supports 3G, HD, and SD-SDI video formats
  • 4-channel balanced analog audio I/O
  • DB-25 connector with TASCAM pinout
  • Simultaneous embedding and disembedding
  • Full audio channel mapping and routing
  • Rear I/O for clean installation
  • Compatible with DashBoard software for remote control
  • Fits standard 2RU openGear frames
  • Ideal for integrating analog audio into SDI workflows
  • Type: Analog audio embedder/disembedder module
  • Form Factor: openGear card (fits 2RU openGear frames)
  • Video Format Support: 3G-SDI, HD-SDI, SD-SDI (SMPTE 259/292/424)
  • Video Input: 1x 3G-SDI via rear module
  • Video Output: 2x 3G-SDI (processed loop outputs)
  • Audio I/O:
  • 4-channel balanced analog audio
  • DB-25 connector (TASCAM standard pinout)
  • Audio Processing:
  • Simultaneous embedding and disembedding
  • Full audio channel mapping and routing
  • Control Interface: DashBoard software via Ethernet
  • Power: Supplied through openGear frame
  • Power Consumption: Approx. 6–8 W
  • Cooling: Provided by openGear frame airflow
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10–90% non-condensing
  • Application: Analog audio integration into SDI video systems for broadcast and production
