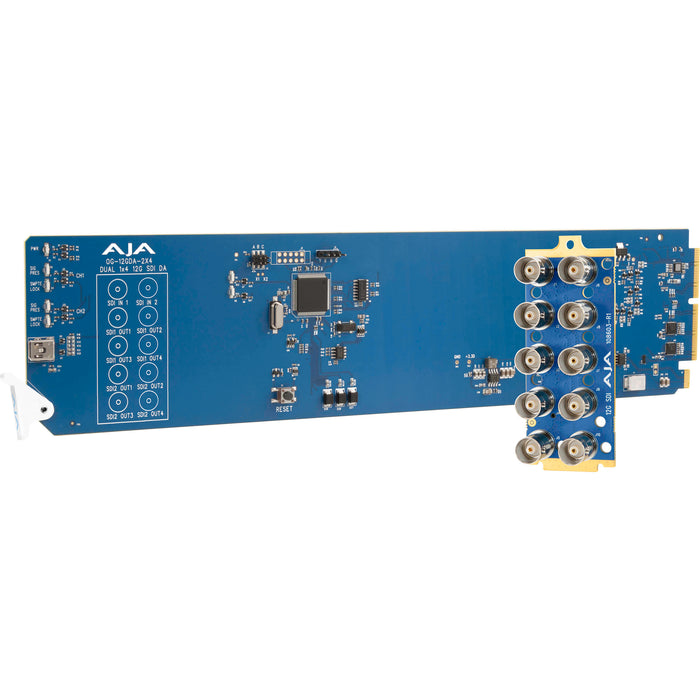

AJA OG-12GDA-2x4 openGear-compatible 12G-SDI distribution amplifier card with dual 1x4 channels, rear I/O, designed for high-bandwidth signal distribution.

AJA openGear Dual 1x4 12G-SDI Distribution Amplifier

by AJA
Availability:
In stock 3-5 days
$869.00 - $869.00
$869.00
$869.00 - $869.00
$869.00

MODEL: OG-12GDA-2X4

SKU: OG-12GDA-2X4
  • Overview
  • Features
  • Specifications

The AJA OG-12GDA-2x4 is an openGear-compatible 12G-SDI distribution amplifier featuring two independent 1x4 channels. It supports high-bandwidth signal distribution for 4K/UltraHD video and is designed for use in openGear 2RU frames, making it ideal for professional broadcast and production environments.

  • openGear-compatible 12G-SDI distribution amplifier
  • Dual independent 1x4 channels
  • Supports 12G/6G/3G/HD-SDI video formats
  • Up to eight total outputs (four per input)
  • Cable equalization and reclocking for signal integrity
  • Designed for high-bandwidth 4K/UltraHD workflows
  • Rear module I/O for clean integration
  • Compatible with DashBoard software for monitoring
  • Ideal for signal distribution in broadcast systems
  • Fits standard 2RU openGear frames
  • Type: 12G-SDI distribution amplifier
  • Form Factor: openGear card (fits 2RU openGear frames)
  • Input Channels: 2x 12G-SDI (independent)
  • Outputs: 4x 12G-SDI per input (8 total outputs)
  • Signal Types: 12G, 6G, 3G, and HD-SDI compliant
  • Reclocking: Yes, for supported data rates
  • Cable Equalization: Automatic
  • Maximum Data Rate: 12 Gbps
  • Video Formats Supported: Up to 4K/UltraHD at 60p
  • Connector Type: BNC via openGear rear module
  • Control: DashBoard software via Ethernet
  • Power: Supplied via openGear frame
  • Power Consumption: Approx. 8–10 W
  • Cooling: Provided by openGear frame airflow
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10–90% non-condensing
  • Application: High-density SDI signal distribution for professional workflows
