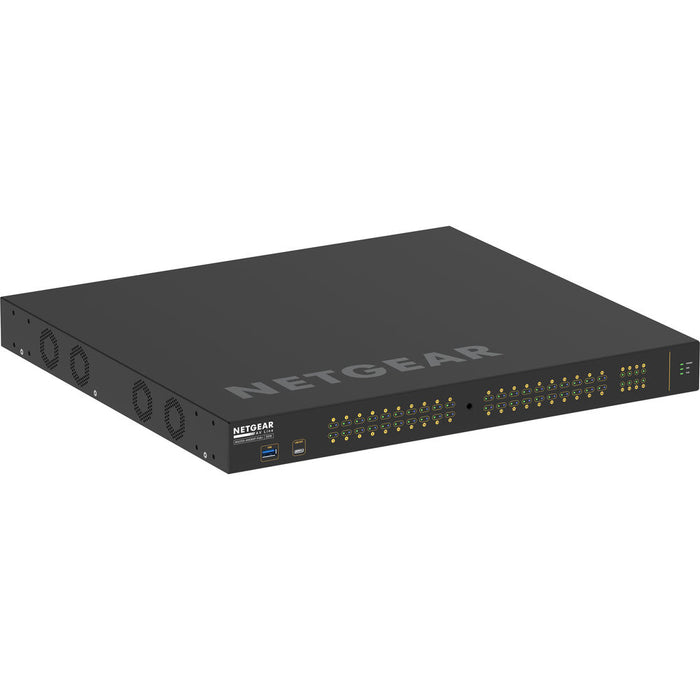

Netgear AV Line M4250-40G8XF-PoE+ Managed Switch front and rear view

Netgear AV Line M4250-40G8XF-PoE+ Managed Switch (GSM4248PX-100NAS)

by Netgear
Availability:
In stock 3-5 days
$4,308.57 - $4,308.57
$4,308.57
$4,308.57 - $4,308.57
$4,308.57

MODEL: M4250-40G8XF-POE+

SKU: GSM4248PX-100NAS

The NETGEAR AV Line M4250-40G8XF-PoE+ Managed Switch (GSM4248PX-100NAS) is engineered to meet the demanding requirements of audio and video professionals. Featuring 40 Gigabit Ethernet PoE+ ports and 8 SFP+ ports, this switch ensures seamless transmission of AV over IP. Its rear-facing ports are designed for clean integration into AV racks, making it an ideal choice for professional AV environments.

The Key Features of the NETGEAR AV Line M4250-40G8XF-PoE+ Managed Switch (GSM4248PX-100NAS):

  • Optimized for AV over IP: Tailored settings for audio and video over IP with dedicated service and support.
  • Comprehensive Connectivity: Equipped with 40x 10/100/1000BASE-T PoE+ ports and 8x 1G/10G SFP+ ports.
  • High PoE Budget: Provides a 960W PoE budget to power multiple devices simultaneously.
  • User-Friendly Management: Features an AV-centric web-based GUI for simplified configuration.
  • Flexible Mounting Options: Supports standard or recessed mounting with all ports in the back or front, suitable for various rack configurations.
  • Advanced Networking Features: Includes Layer 2 and Layer 3 switching capabilities, static, RIP, and PIM routing, DHCP Server, and PTPv2.
  • AVB Support: Offers optional Audio Video Bridging (AVB) services for applications requiring low latency, such as live performances.

The Detailed Specifications for the NETGEAR AV Line M4250-40G8XF-PoE+ Managed Switch (GSM4248PX-100NAS):

Total Ports: 48

  • Gigabit Ethernet PoE+ Ports: 40
  • SFP+ Ports: 8

PoE Budget: 960W

Switching Capacity: 240 Gbps

Forwarding Rate: 178.56 Mpps

Processor: 1.8 GHz ARM Cortex-A57 Quad-Core CPU

Memory: 2GB RAM

Form Factor: Rack-mountable, 1U

Power Consumption: 89.20W (excluding PoE)

Management Interfaces:

  • Web-based GUI: AV-centric and IT modes
  • Command Line Interface (CLI): Accessible via console, telnet, and SSH
  • SNMP: Supported
  • sFlow and RSPAN: Supported

Advanced Features:

  • Layer 2 Switching: VLANs, QoS, IGMP Snooping
  • Layer 3 Routing: Static, RIP, and PIM routing
  • DHCP Server: Integrated
  • PTPv2: Supported
  • AVB: Optional license required

Environmental Compliance: RoHS, WEEE, REACH

Warranty: NETGEAR ProSAFE Limited Lifetime Hardware Warranty
