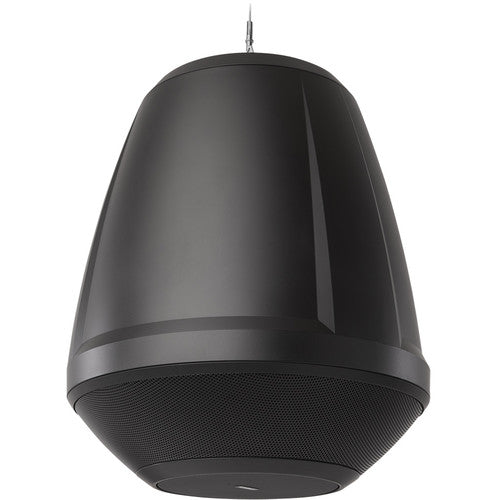

The Q-SYS AD-P.HALO-BK is a high-performance pendant loudspeaker designed for premium commercial audio applications. As part of the QSC AcousticDesign™ Series, this speaker delivers full-range, high-fidelity sound with optimal coverage and sleek aesthetics. Equipped with a 6.5” coaxial woofer and a 1.4” wide-dispersion tweeter, the AD-P.HALO-BK ensures exceptional vocal clarity and rich musical reproduction, making it ideal for retail stores, restaurants, hotels, corporate environments, and more.

Built with integrators in mind, the AD-P.HALO-BK features a quick and secure installation system, seamless compatibility with Q-SYS ecosystem solutions, and a refined design that blends into modern architectural spaces. The durable enclosure and UL 1480 certification make it suitable for both open-ceiling and high-ceiling environments where premium audio is required.

The Key Features of the Q-SYS AD-P.HALO-BK:

• Premium Sound Quality: Full-range 6.5” woofer and 1.4” tweeter for superior audio performance.
• Wide Frequency Response: Ensures clear vocals and deep bass for music and announcements.
• Consistent Coverage: 140° conical dispersion for even sound distribution.
• Seamless Q-SYS Integration: Optimized for use within the Q-SYS ecosystem for easy DSP control.
• Durable and Stylish Design: Elegant black finish with a rugged enclosure for various environments.
• Flexible Mounting Options: Includes a multi-point suspension system for secure installation.
• UL 1480 Certified: Complies with commercial safety and fire protection standards.
• 70V/100V and Low-Z Operation: Built-in transformer for versatile deployment in commercial spaces.

The Detailed Specifications for the Q-SYS AD-P.HALO-BK:

Speaker Type: 6.5” two-way, full-range pendant loudspeaker

Woofer Size: 6.5” (165mm) low-frequency driver

Tweeter Size: 1.4” (35mm) wide-dispersion high-frequency driver

Frequency Response: 52 Hz – 20 kHz (-10 dB)

Nominal Coverage: 140° conical dispersion

Sensitivity: 89 dB SPL (1W/1m)

Max SPL: 113 dB (peak)

Power Handling: 100W RMS (continuous), 400W (peak)

Transformer Taps:

• 70V: 100W / 50W / 25W / 12.5W
• 100V: 100W / 50W / 25W
• 8Ω bypass mode

Enclosure Material: ABS plastic with a black finish

Mounting: Multi-point suspension system with cable and safety tether

Connectors: Euroblock with loop-through capability

Weight: Approx. 7.9 lbs (3.6 kg)

Certifications: UL 1480, CE, RoHS compliant
