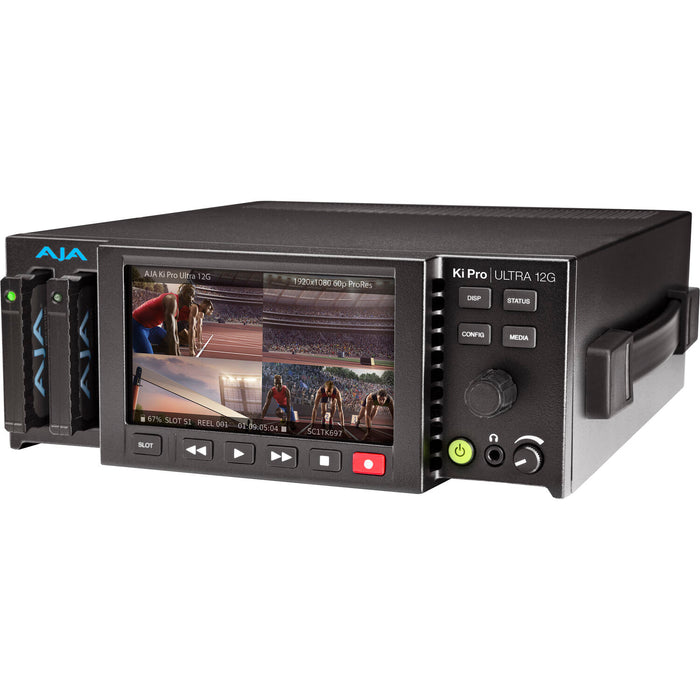

The AJA Ki Pro Ultra 12G is a powerful, multichannel Apple ProRes® and Avid DNxHR® recorder and player. It is designed to streamline professional video workflows with support for up to 4K/UltraHD 60p recording, playback, and monitoring over 12G-SDI.

• 4K/UltraHD/HD Recording and Playback: Supports resolutions up to 4K 60p, making it versatile for high-resolution projects.
• 12G-SDI and HDMI 2.0 Connectivity: Simplifies 4K workflows with single-cable support for uncompressed signals, reducing setup complexity.
• Multichannel Recording: Record up to four channels of HD simultaneously, saving time and resources during production.
• Apple ProRes® and Avid DNxHR® Codecs: Provides broad compatibility with industry-standard workflows for both recording and playback.

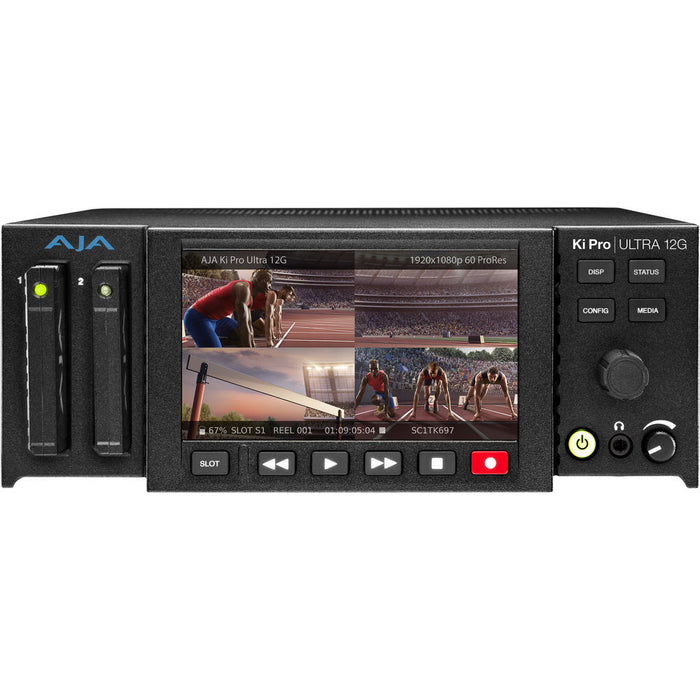

• Integrated Monitoring: Features a full-color, high-resolution LCD display for on-set monitoring and menu navigation.
• Flexible Media Options: Dual redundant drive slots support AJA Pak Media drives for extended recording and reliable redundancy.
• High-Quality Audio: Embedded 24-bit 48kHz audio, along with XLR analog and AES digital audio connectivity, ensures professional sound capture.
• Compact and Durable Design: Built for rugged environments, the Ki Pro Ultra 12G is reliable and easy to transport.
• Remote Control and Configuration: Offers intuitive control via a web-based interface or hardware control panel.
• HDR Support: Fully compatible with HDR workflows, including HLG and PQ formats.

The AJA Ki Pro Ultra 12G is the ideal solution for professionals seeking reliability, flexibility, and efficiency in their video production workflows.

Video Formats

• 4K/UltraHD: 4096x2160, 3840x2160 at 60p, 50p, 30p, 25p, 24p
• 2K/HD: 2048x1080, 1920x1080, 1280x720 at 60p, 50p, 30p, 25p, 24p

Video Codecs

• Apple ProRes:
• 4:2:2 HQ, 4:2:2, LT, Proxy
• Resolutions up to 4K/60p
• Avid DNxHR: HQX, SQ, LB

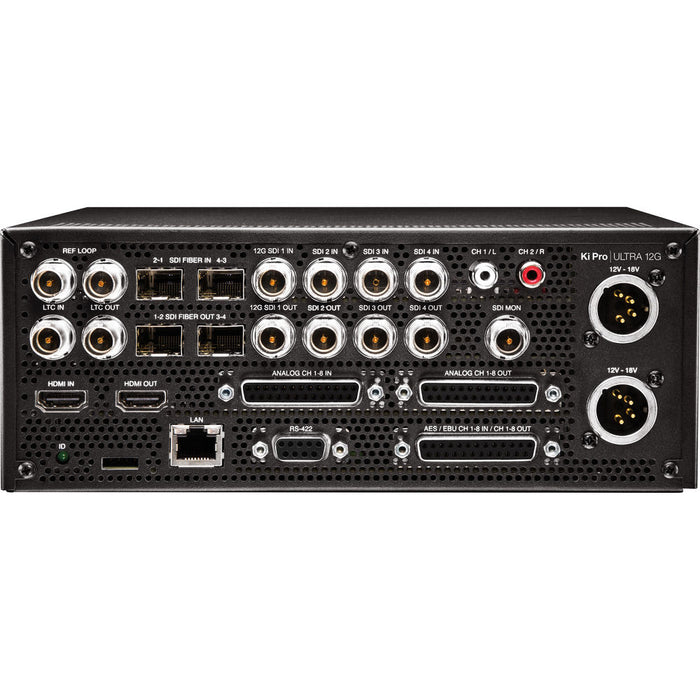

Video Inputs

• 12G-SDI: (BNC x 2) supporting 4K/UltraHD/HD-SDI
• HDMI 2.0: Up to 4K/UltraHD 60p
• Analog Video: Not supported

Video Outputs

• 12G-SDI: (BNC x 2)
• HDMI 2.0: Up to 4K/UltraHD 60p

Audio Inputs

Embedded Audio:

• 16 channels via 12G-SDI
• 8 channels via HDMI 2.0

Analog Audio:

2 channels via XLR (Line, Mic, or Phantom Power)

• Digital Audio: 2 channels via AES/EBU XLR

Audio Outputs

Embedded Audio:

• 16 channels via 12G-SDI
• 8 channels via HDMI 2.0

Analog Audio:

2 channels via XLR (Balanced Line-level)

• Digital Audio: 2 channels via AES/EBU XLR

Recording Media

• AJA Pak Media:
• Supports Pak 2000, Pak 1000, Pak 512, Pak 256
• Drive Bays:
• 2x slots with rollover support for extended recording

File System

• exFAT or HFS+ for drive compatibility

Control Interfaces

• LAN: Gigabit Ethernet for web-based control
• RS-422: For machine control
• USB: Type-A for firmware updates

Monitoring

• Integrated LCD Display: 4.8-inch, full-color, 1280x720 resolution
• Output Monitoring: 12G-SDI, HDMI 2.0

HDR Support

• Standards: HLG, PQ (SMPTE 2084)

Timecode

• SMPTE 12M-2 LTC input/output via 3-pin XLR

Power

• Input Voltage: 100-240V AC, 50/60Hz
• Redundant Power: Dual AC inputs for fail-safe operation

Physical Dimensions

• Height: 1.75 inches (44.45 mm)
• Width: 17 inches (432 mm)
• Depth: 9 inches (228 mm)
• Weight: 8 lbs (3.63 kg)

Environmental

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Included Accessories

• Power cord
• Quick start guide

Optional Accessories

• AJA Pak Media drives
• Ki Protect drive modules

The AJA Ki Pro Ultra 12G is an advanced and reliable device for professional video workflows, offering exceptional versatility and performance for 4K/UltraHD and HD production.
