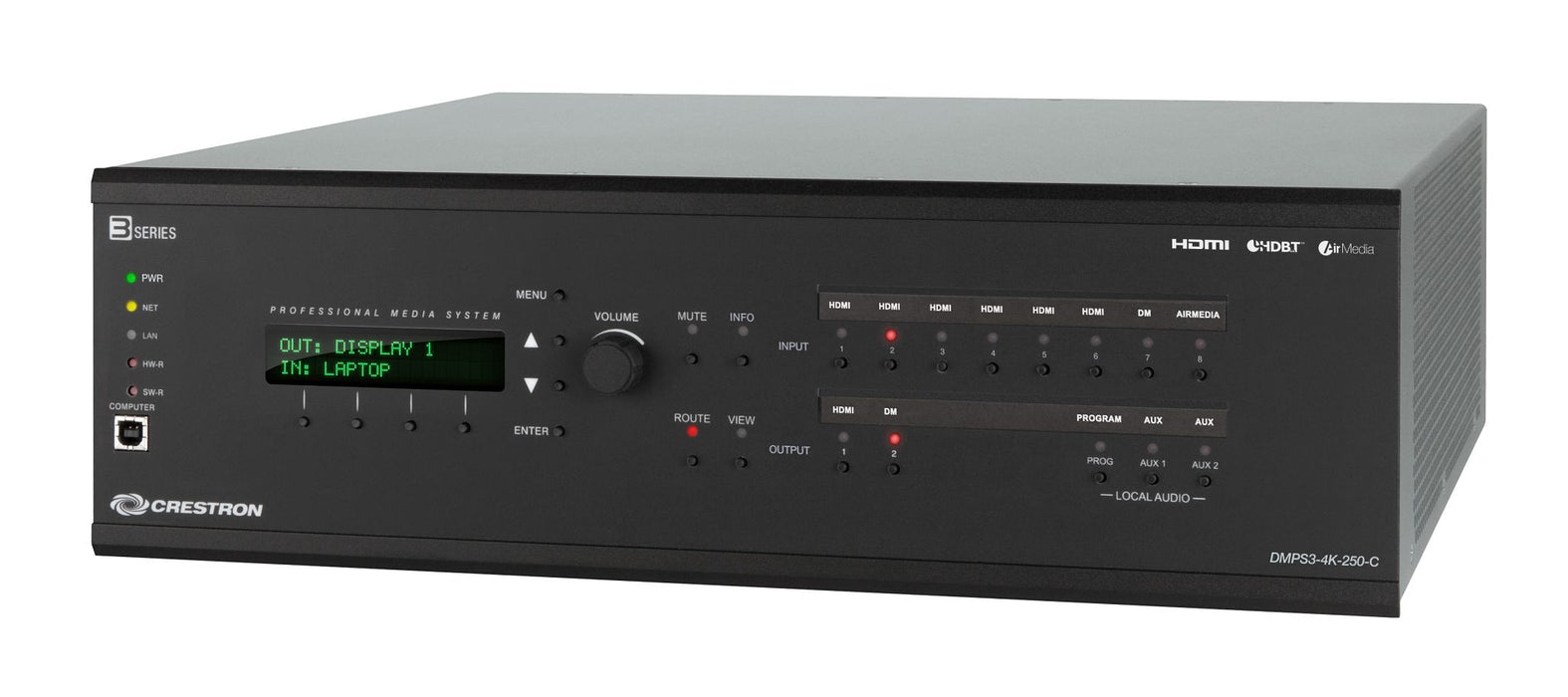

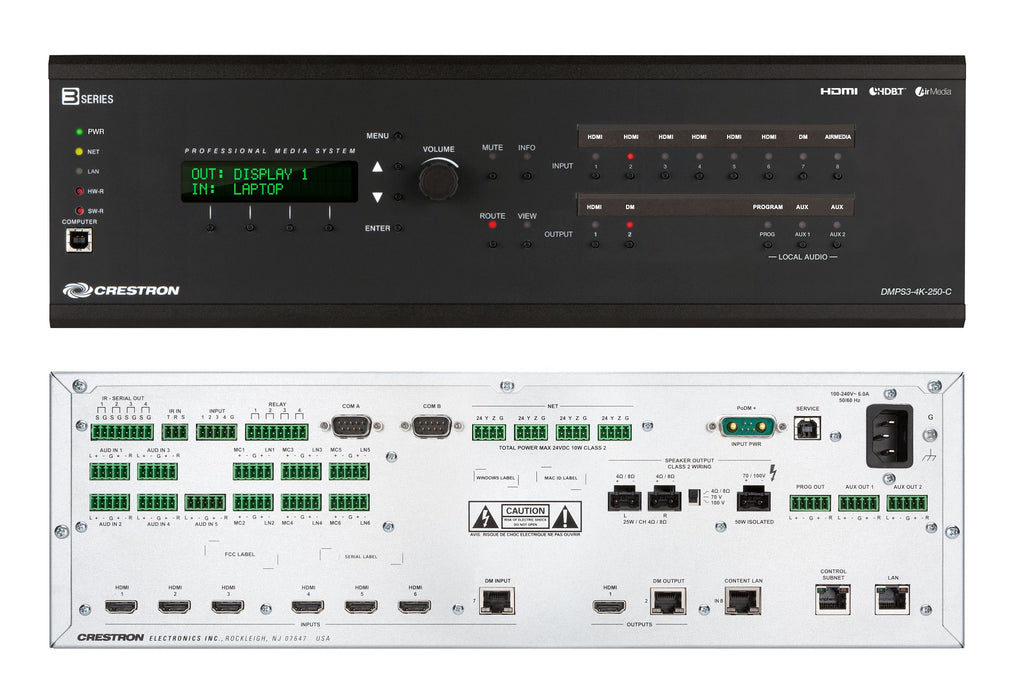

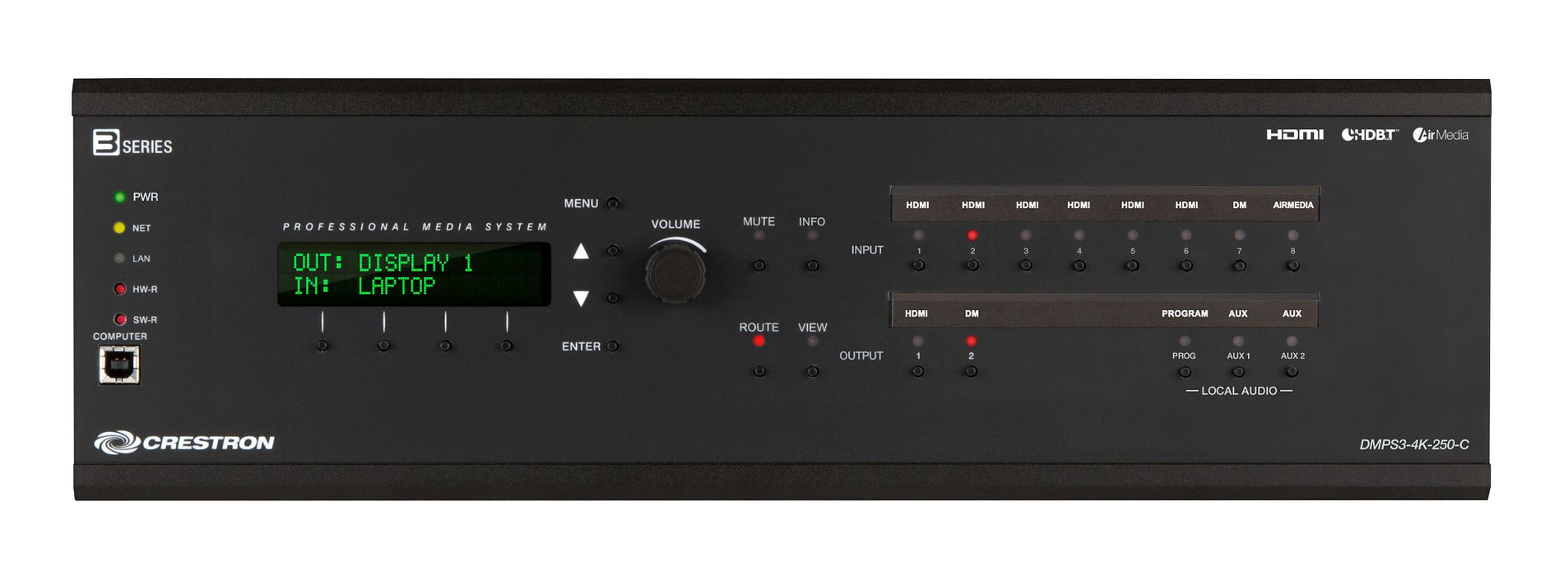

The Crestron DMPS3-4K-350-C is a comprehensive 4K AV presentation system designed for modern classrooms, boardrooms, lecture halls, and videoconference rooms. It integrates a 9x4 AV switcher, 4K scaler, microphone mixer, audio DSP, amplifier, and control system into a single 3-space rack-mountable unit. This all-in-one solution simplifies installation and operation, providing seamless connectivity and control for various multimedia devices.

Here are the key features of the Crestron DMPS3-4K-350-C:

• 9x4 AV Switching: Supports nine input sources and four outputs, accommodating a variety of digital and analog AV devices.
• 4K and Ultra HD Support: Handles 4K/60 video with HDCP 2.2 encryption, ensuring compatibility with the latest Ultra HD displays and media sources.
• Integrated AirMedia® Gateway: Enables wireless presentation from computers and mobile devices (license required).
• H.264 Streaming Video Decoder: Allows for decoding of streaming video content.
• 6-Channel Microphone Mixer: Provides built-in mixing and processing for six microphones with adjustable gain, phantom power, gating, compression, delay, and EQ.
• Audio DSP: Each analog audio output includes its own digital signal processor for optimized audio performance.
• Built-in Amplifier: Delivers 25 W per channel at 8 ohms stereo or 50 W at 70/100V mono.
• DigitalMedia 8G+® Technology: Compatible with HDBaseT® standard, allowing for long-distance transmission of uncompressed HD video, audio, Ethernet, and control signals over a single CAT5e cable.
• Integrated 3-Series® Control System: Provides customizable control of AV devices, room lighting, window shades, and projection screens without requiring a separate control processor.

Here are the detailed specifications for the Crestron DMPS3-4K-350-C:

Video Switcher:

Inputs:

• 4 HDMI® inputs
• 2 DM 8G+® inputs
• 2 VGA inputs
• 1 AirMedia input

Outputs:

• 2 HDMI outputs
• 1 DM 8G+ output
• 1 stereo analog audio output

Audio:

Microphone Inputs:

• 6 balanced/unbalanced inputs with 60 dB gain adjustment
• Switchable 48V phantom power

Audio DSP:

• Gating, compression, delay, and 4-band semi-parametric EQ

Amplifier:

• 25 W per channel at 8 ohms stereo
• 50 W at 70/100V mono

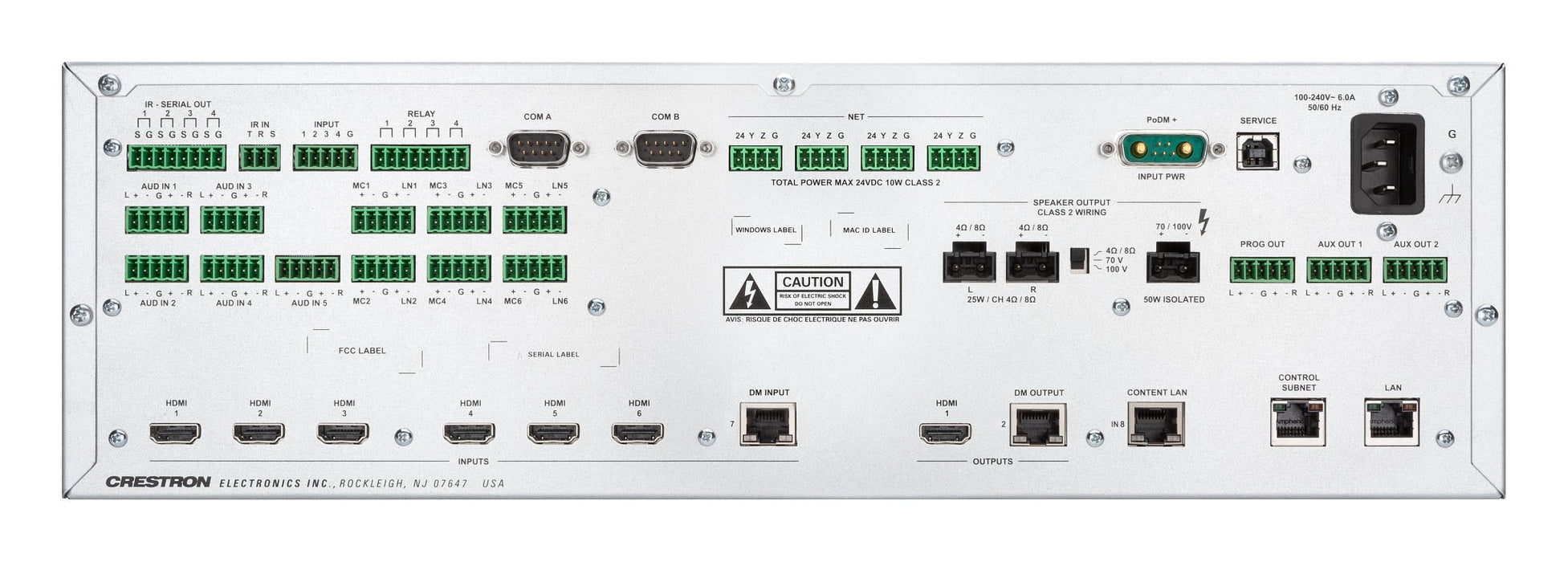

Control Ports:

• 4 IR ports
• 2 RS-232 COM ports
• 4 relay ports
• 4 digital input ports
• Cresnet® and Ethernet connectivity

Scaling:

• 4K/60 video scaling on HDMI and DM 8G+ outputs

Streaming:

• H.264 streaming video decoder

Dimensions:

• 3U rack-mountable chassis

Power Requirements:

• 100-240V AC, 50/60 Hz
