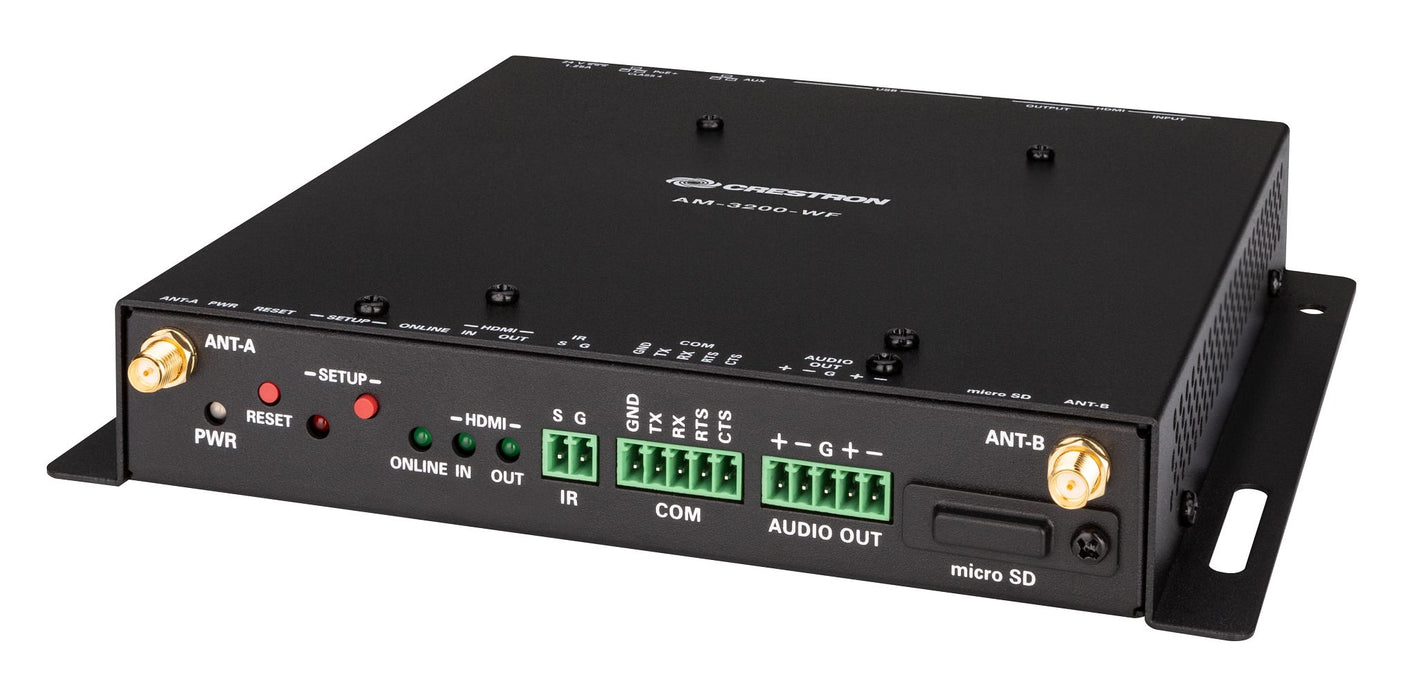

The Crestron AirMedia® Receiver 3200 with Wi-Fi® Network Connectivity (AM-3200-WF) is designed to facilitate secure wireless collaboration in modern digital workspaces. This receiver can be seamlessly integrated into various environments such as conference rooms, huddle spaces, lounges, and lobbies, enhancing productivity and engagement. Users can effortlessly present content from their laptops, smartphones, or tablets via AirMedia, ensuring a smooth and
efficient meeting experience.

The Key Features of the Crestron AirMedia® Receiver 3200 with Wi-Fi® Network Connectivity (AM-3200-WF):

• Wireless Presentation: Allows users to present content wirelessly from personal devices, promoting a cable-free environment.
• Wi-Fi Connectivity: Supports dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5GHz) for robust and flexible network connections.
• Digital Signage Integration: Compatible with Appspace and other web-based signage platforms, enabling the display of digital content when the receiver is not in use for presentations.
• Centralized Management: Integrates with Crestron Fusion® and XiO Cloud® services for enterprise-level device monitoring, management, and provisioning.
• High-Definition Support: Offers HDMI input and output with support for resolutions up to 4K, ensuring high-quality video presentations.
• Flexible Control Options: Compatible with Crestron touch screens and occupancy sensors, providing manual control and automation based on room occupancy.

The Digital Specifications for the Crestron AirMedia® Receiver 3200 with Wi-Fi® Network Connectivity (AM-3200-WF):

Communications:

• Ethernet: 100/1000 Mbps, auto-switching,
  auto-negotiating, auto-discovery, full/half duplex; supports TCP/IP, UDP/IP, DHCP, SSL, TLS, SSH, SFTP, IEEE 802.1x, Active Directory authentication, HTTPS web browser setup, and XiO Cloud service; 802.3af compliant.
• Wi-Fi: Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5 GHz); up to 70 ft (23 m) range at 80 Mbps, subject to site-specific conditions.
• Bluetooth®: Version 5.0.

Video:

• Input Signal Types: AirMedia, HDMI (DVI & Dual-Mode DisplayPort™ compatible); simultaneous display of up to four sources with AirMedia Canvas.
• Maximum Input Resolutions: HDMI
  Input: 1920x1080@60Hz (HD 1080p60); AirMedia presentation: 1920x1080@30Hz (1080p30); AirMedia Connect Adapter: 3840x2160@30Hz (4K30).
• Output Signal Types: HDMI (DVI
  compatible).
• HDMI Output Resolutions: Various resolutions including: 1280x720@50Hz (720p50), 1280x720@60Hz (720p60),
  1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 3840x2160@30Hz (2160p30),
  3840x2160@50Hz (2160p50), 3840x2160@60Hz (2160p60).

Audio:

• Input Signal Types: AirMedia, HDMI (Dual-Mode DisplayPort™ compatible).
• Output Signal Type: HDMI.
• Audio Format: Stereo.

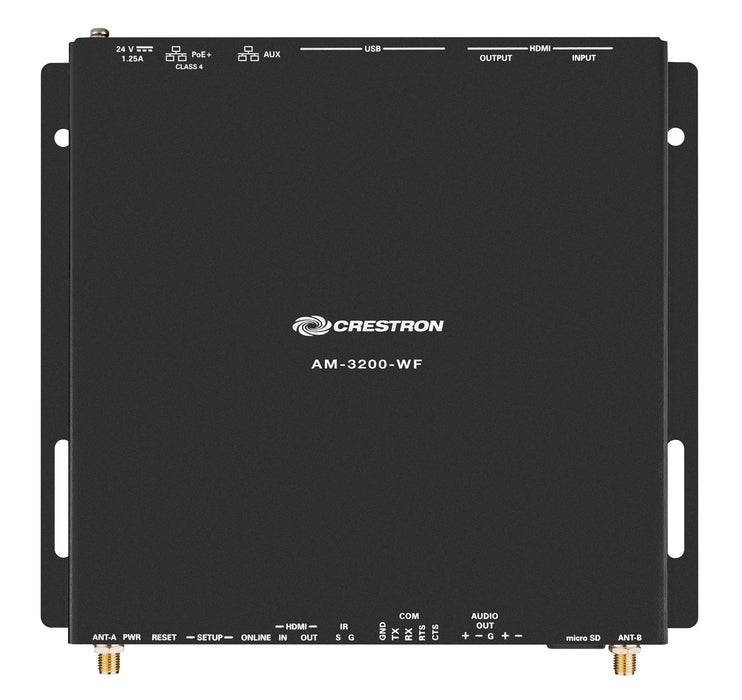

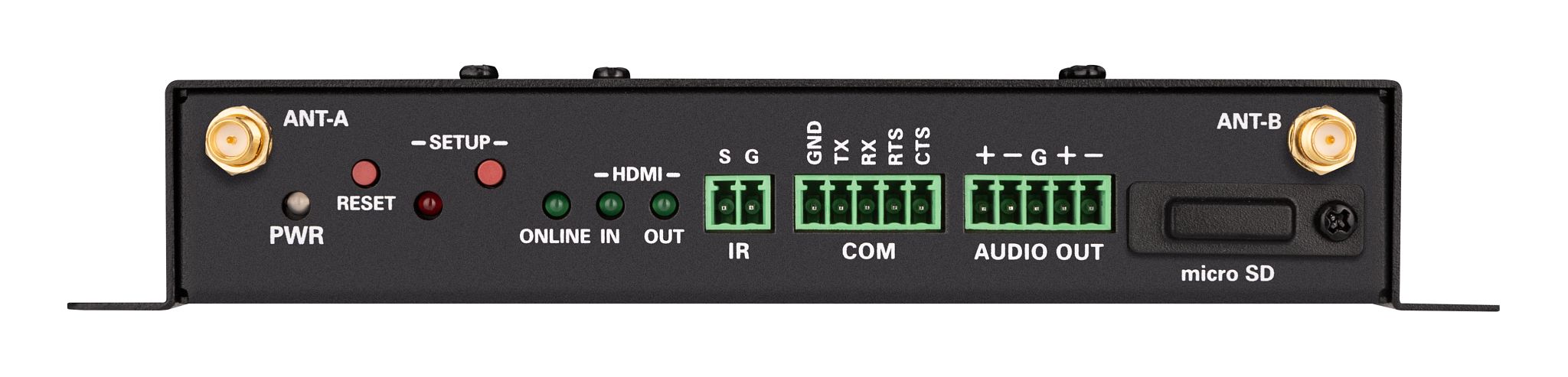

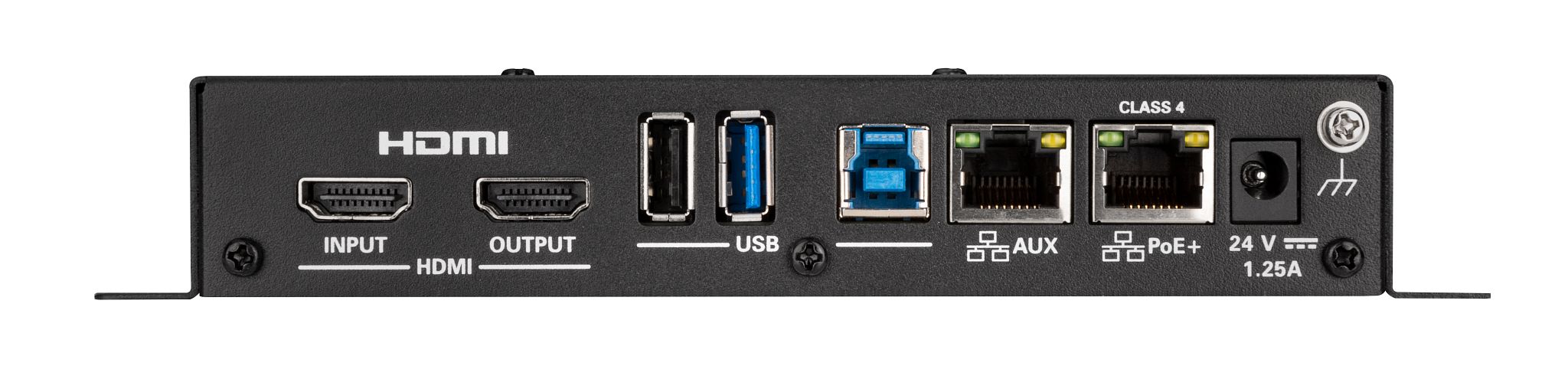

Connectors:

• ANT‑A & ANT‑B: (2) RP‑SMA female; antenna connectors for Wi-Fi communications.
• IR: (1) 2-pin 3.5 mm detachable terminal block; IR/Serial output port.
• COM: (1) 3-pin 3.5 mm detachable terminal block; RS-232 port.
• AUDIO OUT: (1) 3.5 mm TRS mini phone jack; unbalanced stereo line-level audio output.
• microSD: (1) microSD card slot; supports memory expansion and offline firmware update.
