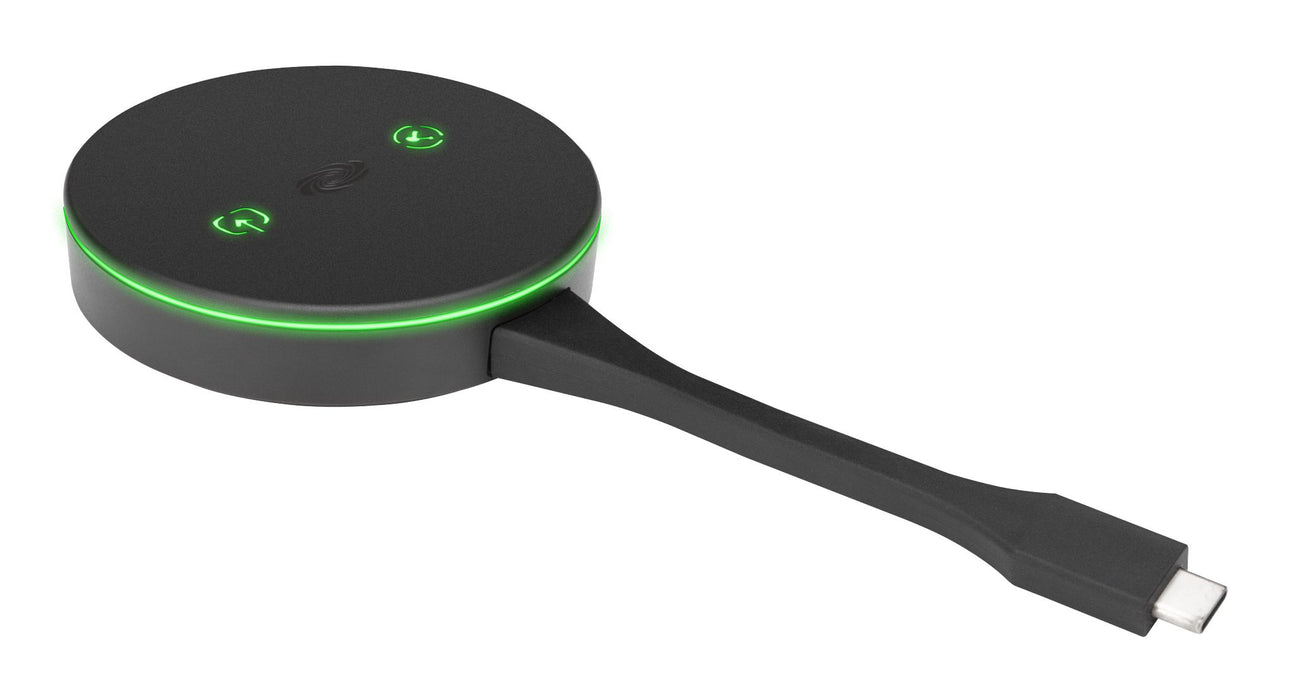

The Crestron AirMedia® Series 3 Connect Adaptor (AM-TX3-100) is a compact and efficient wireless presentation and conferencing solution. Designed for use with Wi-Fi® network-capable AirMedia Series 3 Receivers, this adaptor enables seamless content sharing from personal devices without the need for cables or additional software. It is ideal for conference rooms, huddle spaces, lounges, and collaborative environments, offering a reliable and user-friendly experience for modern workplaces.

The Key Features of the Crestron AirMedia® Series 3 Connect Adaptor:

• Wireless Presentation and Conferencing – Easily share content wirelessly when paired with a compatible AirMedia Series 3 Receiver.
• High-Quality Video Support – Supports up to 4K30 resolution for sharp and detailed visuals.
• Universal Compatibility – Connects via an integrated USB‑C® connector and supports Windows 10, Windows 11, and macOS® 11 or newer.
• Enterprise-Grade Security – Includes 802.1x network access control, Active Directory® authentication, and AES content encryption for secure connections.
• User-Friendly Design – Features backlit capacitive touch buttons for effortless control without the need for additional software installation.

The Detailed Specifications for the Crestron AirMedia® Series 3 Connect Adaptor:

Communications:

• Wi-Fi: Wi-Fi 6 (802.11ax)
• USB: USB 2.0
• OS Support: Windows 10, Windows 11, macOS® 11 or newer

Video:

• Input Signal Types: DisplayPort™ Alt Mode over USB-C
• Output Signal Types: Network stream over Wi-Fi, received by a paired AirMedia Series 3 receiver
• Maximum Resolution: 3840x2160@30Hz (2160p30)

Audio:

• Input Signal Types: DisplayPort Alt Mode over USB-C
• Output Signal Type: Network stream over Wi-Fi, received by a paired AirMedia Series 3 receiver
• Input/Output Format: 2-channel LPCM

Connectors:

• USB: (1) USB-C connector, male

Controls and Indicators:

• Status Ring: RGB LED Ring indicating device status
• Screenshare Button: RGB backlit capacitive touch button for screensharing control
• Auxiliary Button: RGB backlit capacitive touch button (for future use)

Power:

• USB-Powered: Operates via USB-C connection
• Power Consumption: 2.5 W (typical)

Environmental:

• Operating Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (non-condensing)
• Heat Dissipation: 8.5 BTU/hr

Construction:

• Material: Plastic, black finish
• Mounting: Freestanding, surface mount

Dimensions:

• Height: 2.95 in. (75 mm)
• Width: 0.66 in. (17 mm)
• Depth: 7 in. (178 mm) including cable

Weight:

• 3.17 oz (90 g)

Compliance:

• Regulatory Model: M202018002
• Certifications: UL® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device
