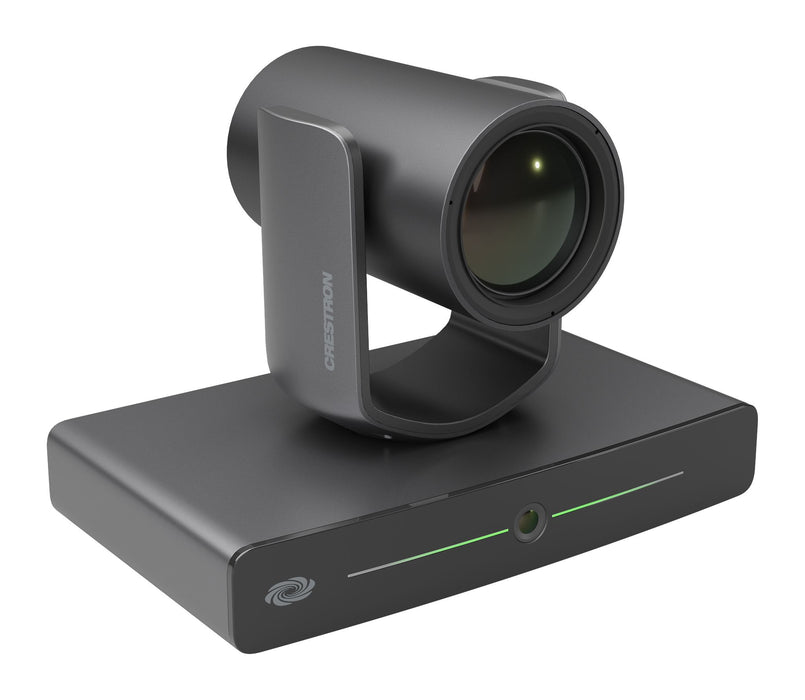

The Crestron IV-CAM-I12-GV-B is an advanced intelligent PTZ (Pan-Tilt-Zoom) camera that leverages visual AI to automatically track presenters and frame groups of participants. Its dual-camera design incorporates a wide-angle reference camera to guide the PTZ camera, ensuring optimal coverage without the need for external systems. This TAA-compliant device is tailored for government deployments, offering high-quality video output up to 1080p at 60 frames per second.

The Key Features of the Crestron IV-CAM-I12-GV-B:

• Visual AI Technology: Automatically tracks presenters and frames groups, enhancing meeting dynamics.
• Dual-Camera Design: Wide-angle reference camera directs the PTZ camera for precise coverage.
• High-Quality Video: Outputs up to 1080p at 60fps, ensuring clear and smooth visuals.
• 12x Optical Zoom: Captures detailed images even in large rooms.
• Flexible Connectivity: Supports 3G-SDI, HDMI®, USB, ONVIF, RTSP, and UVC outputs.
• Network Integration: Features PoE for simplified installation and control.
• Multi-Camera Switching: Seamlessly integrates with additional cameras for dynamic presentations.
• Automate VX Compatibility: Integrates with Crestron's multi-camera speaker tracking systems for enhanced automation.

The Detailed Specifications for the Crestron IV-CAM-I12-GV-B:

• Image Sensor: 1/2.8-inch Sony® CMOS Sensor
• Optical Zoom: 12x
• Focal Length: 4.1-49.2 mm
• Field of View (PTZ): Horizontal: 67.68°
• Field of View (Reference): Horizontal: 104°
• Shutter Speed: 1/50-1/10,000 sec
• Iris: F1.8-F2.68
• Minimum Illumination: 2 lux
• Pan/Tilt Angle: Pan: -130° to 130°; Tilt: -30° to 90°
• Pan/Tilt Speed: Pan: 0.2° to 90°/s; Tilt: 0.2° to 70°/s
• White Balance: Auto, Indoor, One Push, Manual
• Exposure Modes: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority

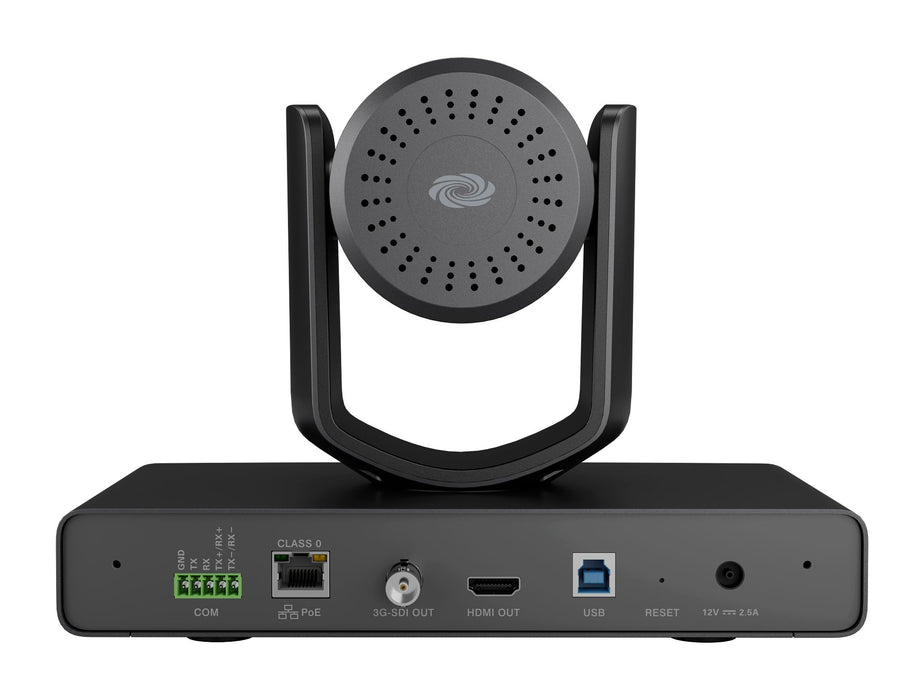

• Video Outputs: 3G-SDI, HDMI®, USB, ONVIF, RTSP, UVC
• Supported Resolutions: SDI/HDMI: Up to 1080p60; USB: Up to 1080p30
• Control Protocols: VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF
• Network Interface: RJ-45, 100Mbps
• Serial Communication: RS-232, RS-485
• Power Options: PoE (15.4 W) or 12VDC power pack (sold separately)
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (non-condensing)
• Dimensions (H x W x D): 6.55 in. x 8.89 in. x 5.86 in. (166 mm x 226 mm x 149 mm)
• Weight: 4.11 lb (1.86 kg)
• Mounting Options: Compatible with IV-CAMA-UMB, IVA-WMT-BRKT-1B, and IVA-CMT-BRKTJ-1B brackets (sold separately)
