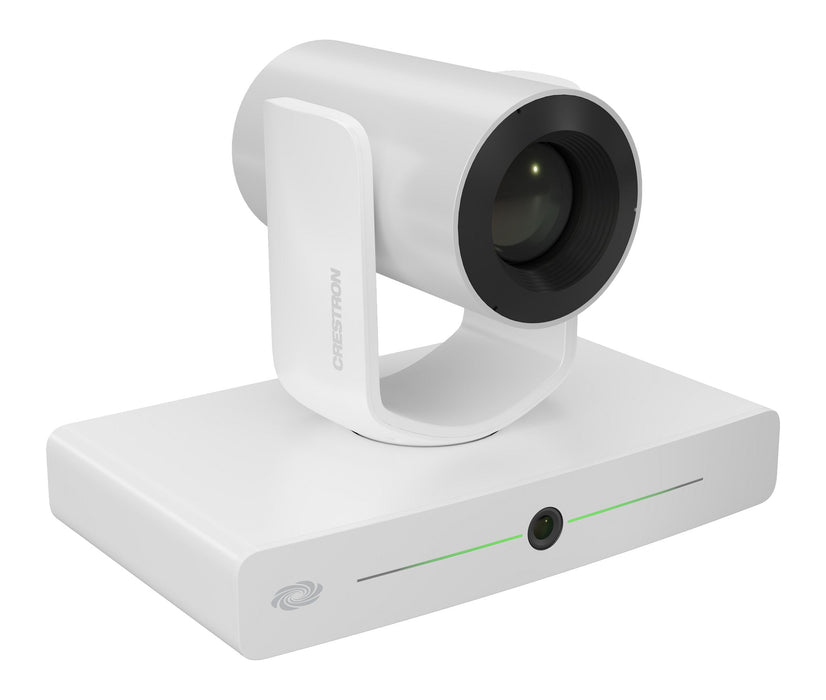

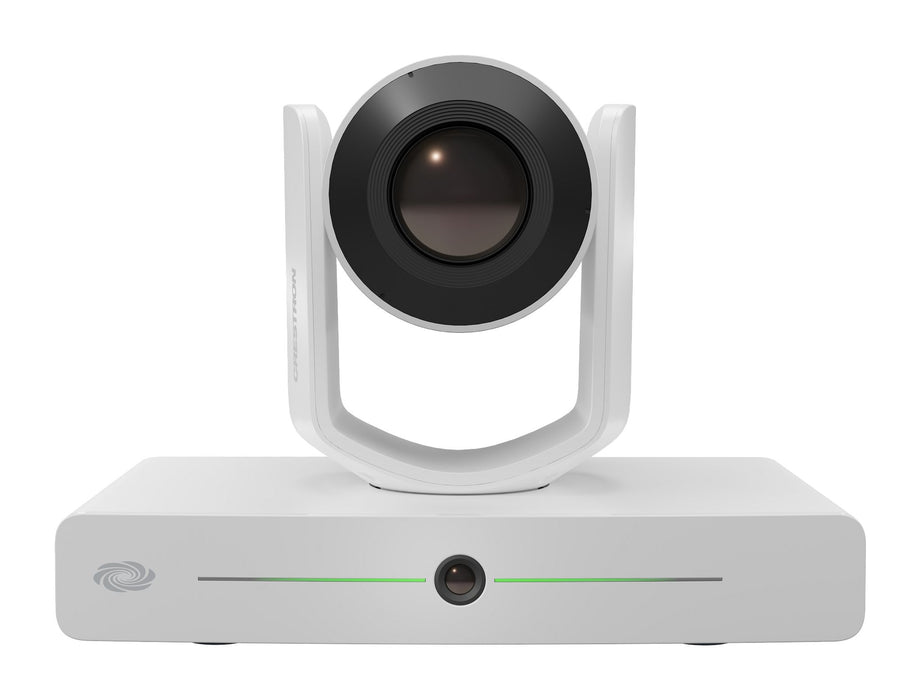

The Crestron 1 Beyond i20 Intelligent PTZ Camera (IV-CAM-I20-W) is a high-quality, intelligent pan-tilt-zoom camera designed to enhance presentations and meetings through advanced visual AI technology. It automatically tracks and frames presenters, making it ideal for large to extra-large training rooms, classrooms, and conference rooms. Its dual-camera design incorporates a wide-angle reference camera that directs the PTZ camera, ensuring seamless tracking without the need for external systems.

The Key Features of the Crestron 1 Beyond i20 Intelligent PTZ Camera (IV-CAM-I20-W):

• Visual AI Presenter Tracking: Utilizes visual AI to smoothly track a single moving presenter within a designated area, preventing tracking of other subjects or displays.
• Group Tracking Technology: Employs visual AI to track multiple presenters, adjusting the PTZ camera to keep all individuals in frame as participants enter or leave the presentation area.
• Preset Zones: Allows the camera to automatically adjust its behavior when participants enter different areas of the room, enhancing automation and flexibility during presentations.
• High-Quality Video: Features a Sony® CMOS sensor capable of delivering up to 1080p60 resolution video for clear and detailed imagery.
• Flexible Connectivity: Supports various video outputs, including 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, and UVC, ensuring compatibility with a wide range of systems.
• Certified for Conferencing Software: Certified for Microsoft Teams® and Zoom Rooms®, facilitating seamless integration with popular conferencing platforms.

The Detailed Specifications for the Crestron 1 Beyond i20 Intelligent PTZ Camera (IV-CAM-I20-W):

Optics:

• Image Sensor: 1/2.8 Sony® CMOS Sensor
• Optical Zoom: 20x
• Focal Length: 5.2–94 mm
• Field of View (PTZ): Horizontal: 56.45°
• Field of View (Reference): Horizontal: 104° (varies based on camera mode)
• Shutter Speed: 1/50–1/10,000 sec
• Iris: F1.5–F3.0
• Minimum Illumination: 2 lux
• Pan/Tilt Angle: Pan: -130° to 130°; Tilt: -30° to 90°
• Pan/Tilt Speed: Pan: 0.2°–90°/s; Tilt: 0.2°–70°/s
• White Balance: Auto, Indoor, One Push, Manual
• Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority

Camera Processing:

• Intelligent Video Functions: Presenter Tracking, Group Tracking, Preset Zones
• Recommended Range: 15–50 ft
• Presets: Up to 256 configurable presets

Video Outputs:

• 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, UVC
• Signal Formats: SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50 - USB: 1080p30/25, 720p30/25, 360p30

Communications:

• USB: USB-B 3.0
• Ethernet: RJ-45, 100 Mbps
• Serial: RS-232, RS-485
• Control Protocol: VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF

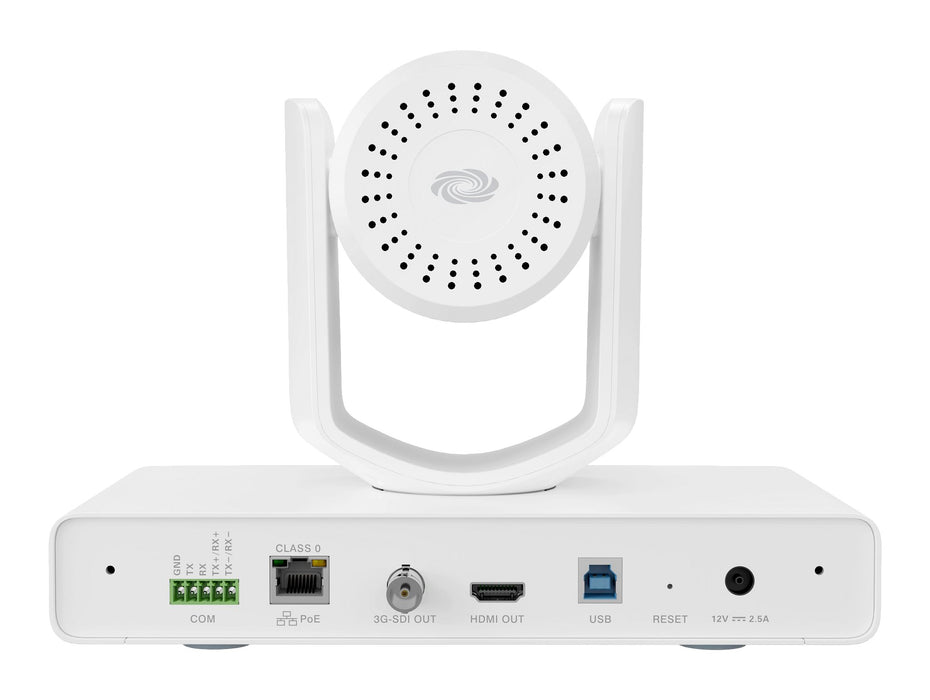

Connectors:

• COM: 5-pin 3.5 mm detachable terminal block
• PoE: 8-pin RJ-45 connector, female
• 3G-SDI OUT: BNC connector, female
• HDMI OUT: HDMI Type A connector
• USB: USB Type B connector, female
• 12VDC 2.5A: 3.3 mm DC power connector

Controls and Indicators:

• Status Bar: Multisegment tricolor LED bargraph
• RESET Button
