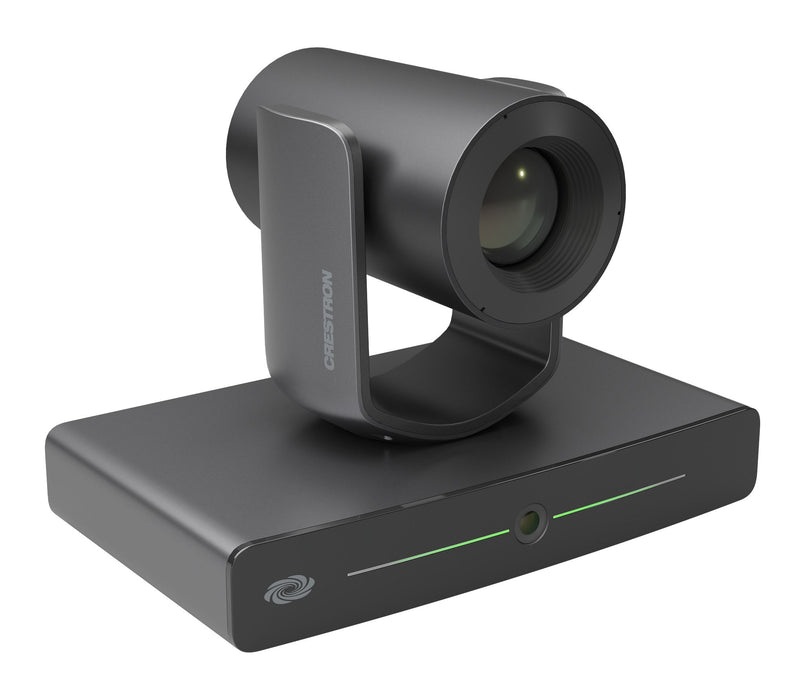

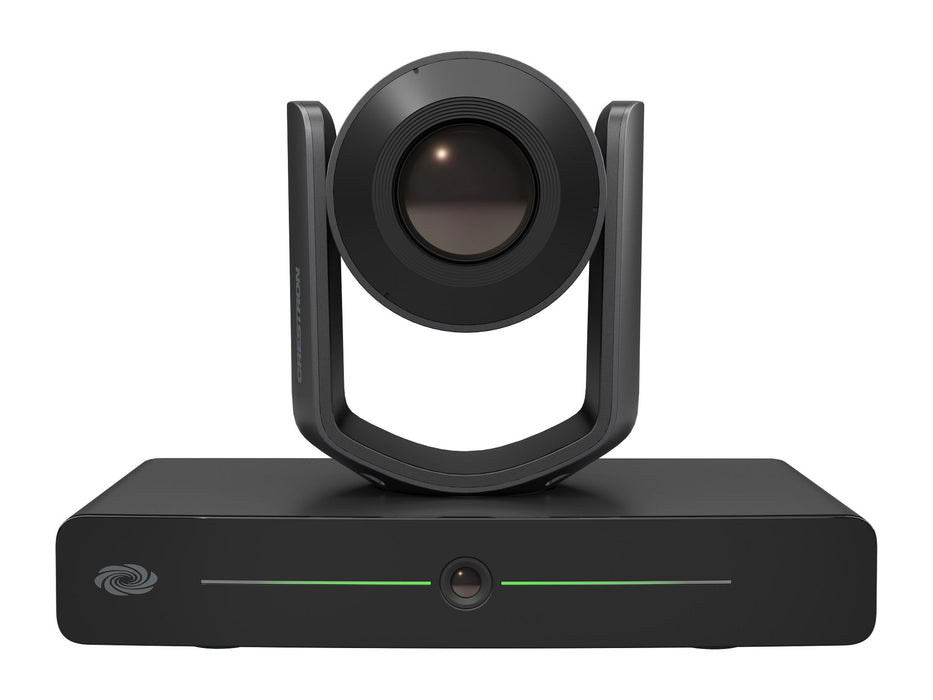

The Crestron IV-CAM-I20-B is engineered to enhance video conferencing and recording experiences by utilizing visual AI for automated presenter and group tracking. Its dual-camera design incorporates a wide-angle reference camera that guides the PTZ camera, providing smooth and accurate tracking without the need for additional systems. This makes it an ideal solution for environments requiring dynamic video capture, such as large training rooms, classrooms, and conference rooms.

The Key Features of the Crestron IV-CAM-I20-B:

• Visual AI Presenter Tracking: Automatically tracks a single presenter as they move within a designated area, maintaining smooth and precise focus.
• Group Tracking Technology: Utilizes visual AI to adjust framing based on the number of presenters, ensuring all participants are included in the shot.
• Preset Zones: Allows the camera to focus on specific areas when participants enter predefined zones, enhancing meeting dynamics.
• High-Quality Video Output: Features a Sony® CMOS sensor capable of delivering up to 1080p60 resolution for clear and detailed visuals.
• Flexible Connectivity: Supports 3G-SDI, HDMI®, USB 3.0, NDI®|HX, ONVIF, RTSP, and UVC, ensuring seamless integration with various systems.
• Power over Ethernet (PoE): Simplifies installation by providing power, control, and video transmission through a single Ethernet cable.
• Certified for Conferencing Software: Compatible with Microsoft Teams® and Zoom Rooms®, facilitating easy integration into existing conferencing setups.

The Detailed Specifications for the Crestron IV-CAM-I20-B:

Optics

• Image Sensor: 1/2.8 Sony® CMOS Sensor
• Optical Zoom: 20x
• Focal Length: 5.2-94 mm
• Field of View (PTZ): Horizontal: 56.45°
• Field of View (Reference): Horizontal: 104° (varies based on camera mode)
• Shutter Speed: 1/50-1/10,000 sec
• Iris: F1.5-F3.0
• Minimum Illumination: 2 lux

Pan/Tilt Mechanism

• Pan Angle: -130° to 130°
• Tilt Angle: -30° to 90°
• Pan Speed: 0.2° to 90°/s
• Tilt Speed: 0.2° to 70°/s

Camera Processing

• Intelligent Video Functions: Presenter Tracking, Group Tracking, Preset Zones
• Recommended Tracking Range: 15-50 ft
• Presets: Up to 256 configurable presets

Video Outputs

• Formats: 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, UVC
• Resolutions: SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50; USB: 1080p30/25, 720p30/25, 360p30

Communications

• USB: USB-B 3.0
• Ethernet: RJ-45, 100 Mbps
• Serial: RS-232, RS-485
• Control Protocols: VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF

Connectors

• COM: 5-pin 3.5 mm detachable terminal block
• 3G-SDI OUT: BNC connector
• HDMI OUT: HDMI Type A connector
• USB: USB Type B connector
• 12VDC 2.5A: 3.3 mm DC power connector

Controls and Indicators

• Status Bar: Multisegment tricolor LED bargraph indicating live feed, tracking status, firmware updates, and privacy mode
• RESET: Recessed push button for hardware reset

Power

• Power Source Options: Ethernet (PoE), Power Pack (PW-1225DU)
