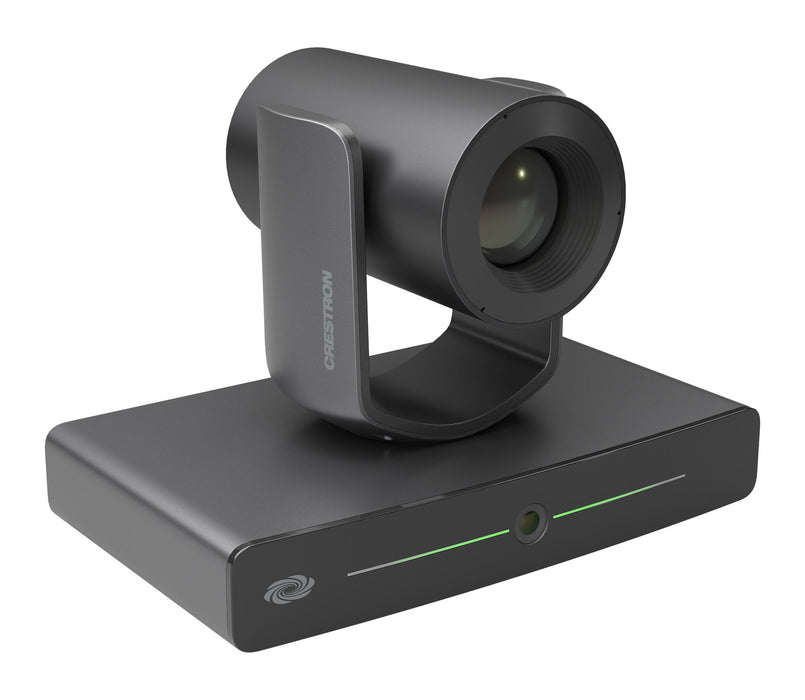

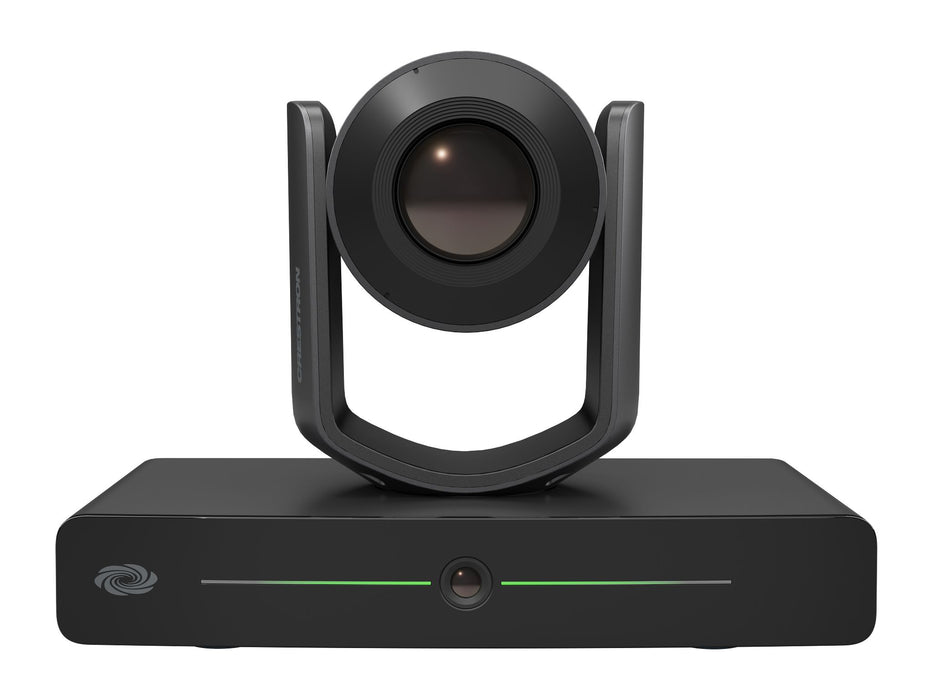

The Crestron 1 Beyond i20 Intelligent PTZ Camera is designed for high-quality video conferencing and presentations in government environments. This advanced camera system features a dual-camera design, with a wide-angle reference camera that utilizes visual AI to guide the PTZ camera, ensuring smooth and automatic tracking of presenters or groups.

Offering up to 1080p60 resolution, the camera delivers sharp, professional video output and is certified for Microsoft Teams® Rooms and Zoom Rooms®. It provides flexible connectivity, multiple output options, and seamless integration into various AV setups.

The Key Features of the Crestron 1 Beyond i20 Intelligent PTZ Camera:

• AI-Powered Tracking: Visual AI enables automatic tracking of presenters or groups, ensuring a smooth and professional experience.
• Preset Zones: Dynamically frames designated areas, automatically adjusting the view when participants move in and out.
• High-Definition Video: Equipped with a Sony® CMOS sensor, supporting up to 1080p60 resolution for clear, detailed visuals.
• Versatile Connectivity: Supports 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, and UVC for flexible video output options.
• Power Over Ethernet (PoE): Simplifies installation by enabling power, setup, and control through a single Ethernet cable.
• Multiple Mounting Options: Compatible with wall and ceiling mounts, providing adaptable installation solutions.

The Detailed Specifications for the Crestron 1 Beyond i20 Intelligent PTZ Camera:

Optics

• Image Sensor: 1/2.8 Sony® CMOS Sensor
• Optical Zoom: 20x
• Focal Length: 5.2-94 mm
• Field of View (PTZ): Horizontal: 56.45°
• Field of View (Reference): Horizontal: 104°
• Shutter Speed: 1/50-1/10,000 sec
• Iris: F1.5-F3.0
• Minimum Illumination: 2 lux
• Pan/Tilt Angle: Pan: -130° to 130°; Tilt: -30° to 90°
• Pan/Tilt Speed: Pan: 0.2° to 90°/s; Tilt: 0.2° to 70°/s
• White Balance: Auto, Indoor, One Push, Manual
• Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority

Camera Processing

• Intelligent Tracking: Presenter Tracking, Group Tracking, Preset Zones
• Preset Configurations: Up to 256 configurable presets

Video Capabilities

• Video Outputs: 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, UVC
• Supported Formats: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50USB: 1080p30/25, 720p30/25, 360p30

Communications & Control

• USB Interface: USB-B 3.0
• Ethernet: RJ-45, 100Mbps
• Serial Control: RS-232, RS-485
• Control Protocols: VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF
• Management Software: Crestron 1 Beyond Camera Manager 2 (Windows OS)

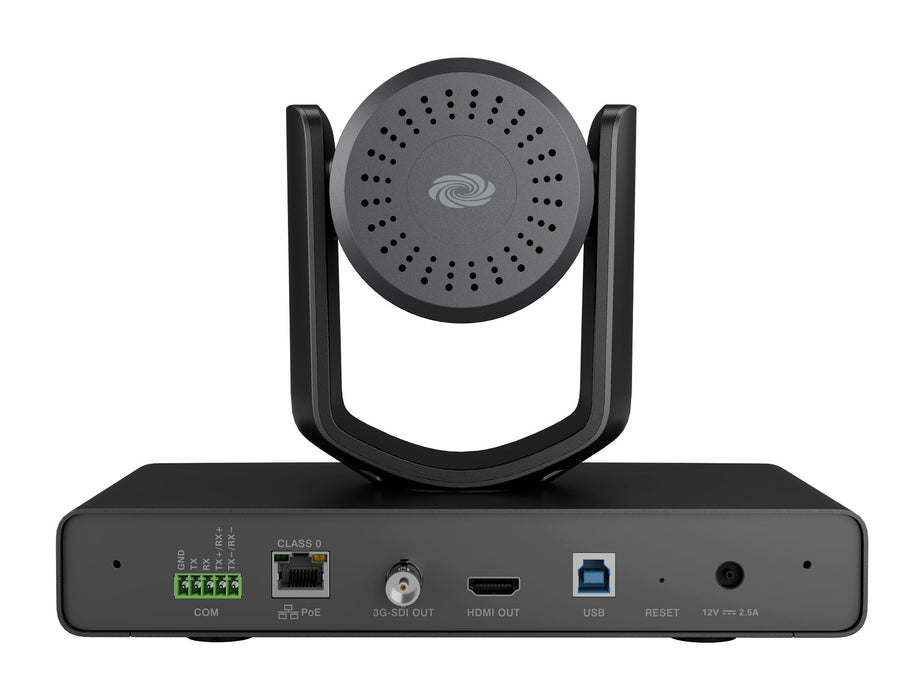

Connectivity & Power

• Control Port: 5-pin 3.5 mm terminal block (RS-232/485)
• PoE Support: RJ-45 connector
• Video Outputs: BNC (3G-SDI), HDMI Type A, USB Type B
• Power Supply: 12VDC 2.5A (power pack sold separately)
