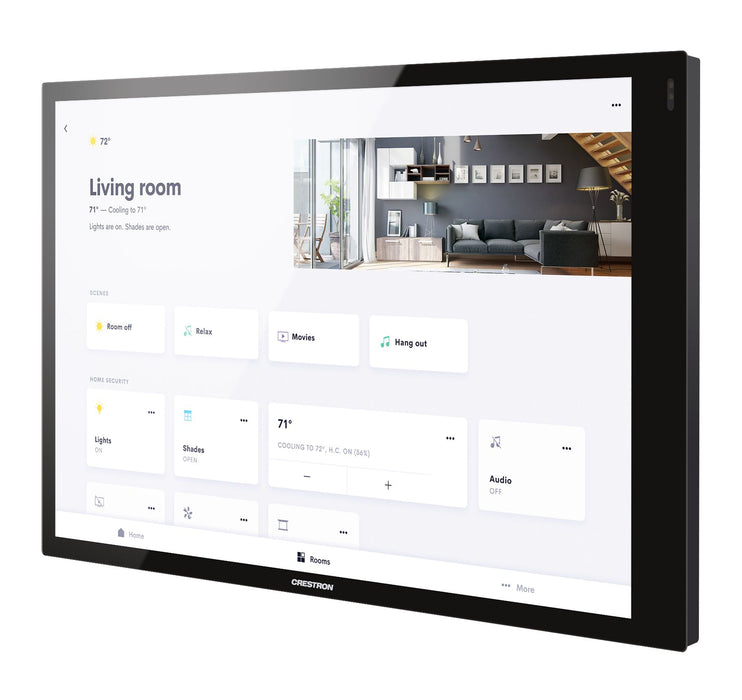

The Crestron TSW-1070R-B is a high-performance 10.1-inch touchscreen designed for room scheduling applications in corporate, educational, and commercial environments. Engineered for seamless integration with Crestron’s scheduling software and third-party solutions, this panel features a sleek, modern design, a responsive high-resolution display, and a robust security architecture. Equipped with Power over Ethernet (PoE) and secure network connectivity, the TSW-1070R-B ensures efficient and reliable performance in enterprise settings.

The Key Features of the Crestron TSW-1070R-B:

• 10.1” High-Resolution Display: Delivers crisp and clear visuals with an intuitive touchscreen interface.
• Built-in Room Scheduling Software: Compatible with Crestron and third-party scheduling platforms for streamlined meeting management.
• PoE Connectivity: Simplifies installation with power and network connectivity over a single cable.
• Enterprise-Grade Security: Supports secure authentication and encryption protocols for safe network integration.
• LED Status Indicators: Edge-mounted LEDs provide clear at-a-glance room availability status.
• Sleek, Modern Design: A low-profile, contemporary aesthetic suitable for any professional environment.
• Flexible Mounting Options: Wall, glass, and tabletop mounting support for versatile deployment.

The Detailed Specifications for the Crestron TSW-1070R-B:

• Screen Size: 10.1 inches
• Resolution: 1280 x 800 pixels
• Touch Technology: Capacitive multitouch
• Processor: 1.5 GHz Quad-Core
• Memory: 2GB RAM / 16GB Flash Storage
• Networking: 10/100 Mbps Ethernet, Wi-Fi (Optional via USB Adapter)
• Power Supply: Power over Ethernet (PoE, IEEE 802.3at Type 2)
• Audio: Integrated speaker and microphone (for select applications)
• Security Features: TLS, HTTPS, 802.1X, SSH, SFTP
• Dimensions: 9.65 in. (245 mm) W x 6.02 in. (153 mm) H x 1.38 in. (35 mm) D
• Weight: 1.8 lbs (0.82 kg)
• Certifications: FCC, CE, IC, RoHS compliant
