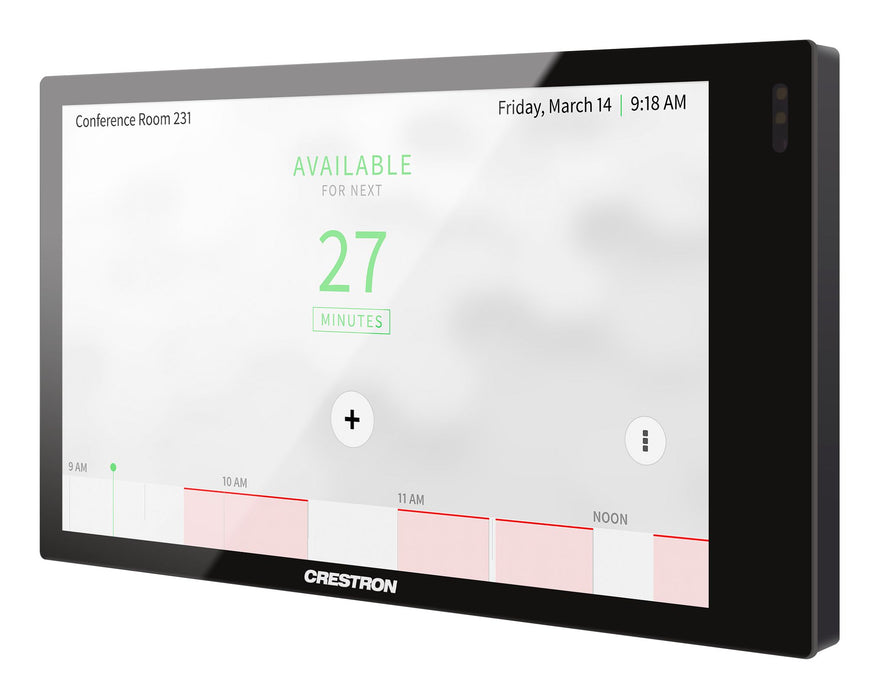

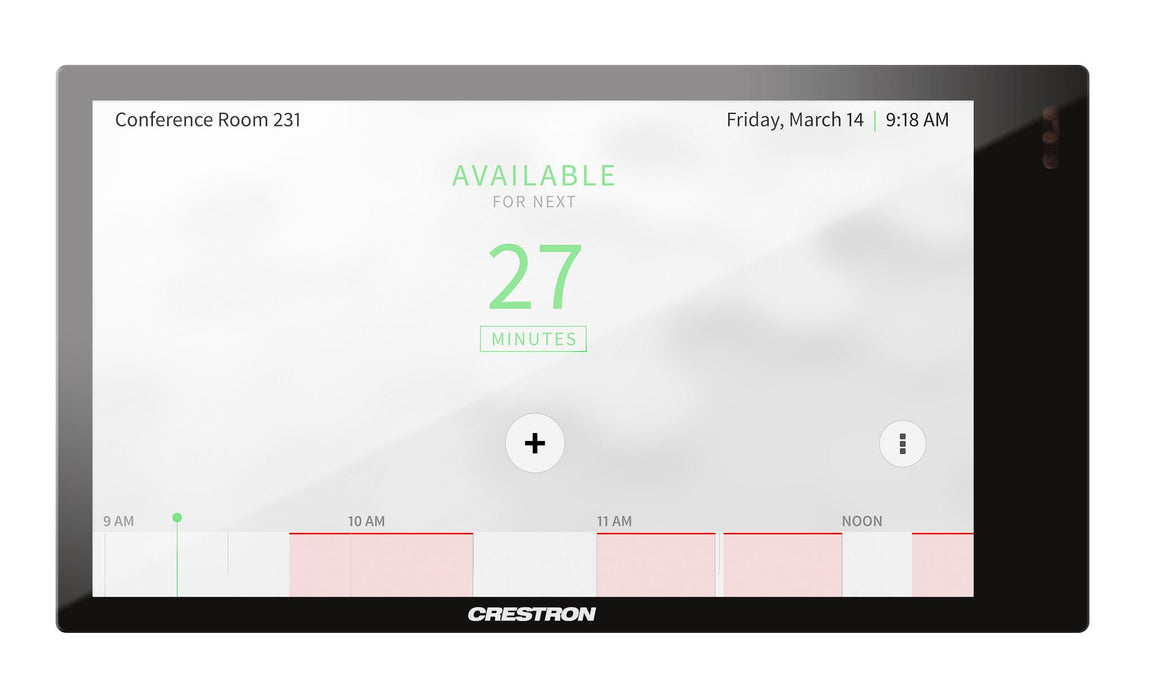

The Crestron TSW-570-B-S is a stylish and powerful 5-inch touch screen panel designed for seamless control of home and commercial automation systems. Its high-resolution capacitive touch display ensures an intuitive and responsive user experience, allowing users to manage lighting, climate, security, AV, and other smart devices effortlessly. With a sleek black finish, a compact form factor, and PoE connectivity, the TSW-570-B-S is ideal for modern interiors. This panel offers secure wired and Wi-Fi connectivity, customizable UI options, and Crestron XiO Cloud® support for remote deployment and management.

The Key Features of the Crestron TSW-570-B-S:

• 5" HD Capacitive Touchscreen – Provides a crystal-clear interface with a responsive multi-touch experience.
• Sleek & Compact Design – Modern black finish with a slim profile, ideal for professional installations.
• Versatile Control Options – Manage lighting, climate, AV systems, security, and more.
• High-Performance Processor – Ensures smooth operation and fast response times.
• PoE (Power over Ethernet) Support – Enables easy installation with a single cable for power and data.
• Secure Wired & Wireless Connectivity – Supports both LAN and Wi-Fi for flexible networking options.
• Customizable User Interface – Personalize controls to fit specific automation needs.
• Crestron XiO Cloud® Compatibility – Allows for remote deployment, management, and monitoring.

The Detailed Specifications for the Crestron TSW-570-B-S:

General

• Brand: Crestron
• Model: TSW-570-B-S
• Screen Size: 5 inches
• Resolution: 1280 x 720 pixels
• Touch Technology: Capacitive multi-touch

Performance & Connectivity

• Processor: High-performance embedded processor
• Operating System: Crestron OS
• Power: PoE (IEEE 802.3af Class 3) or 24V DC power supply (sold separately)
• Networking: Wired: 10/100 Ethernet - Wireless: Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz) - Security: Enterprise-grade encryption and authentication

Physical & Mounting

• Dimensions (W x H x D): Approx. 5.34 in x 3.47 in x 1.40 in (136 mm x 88 mm x 35.5 mm)
• Weight: Approx. 9.4 oz (265 g)
• Mounting Options: Surface mount - Standard U.S. and European electrical box compatibility

Software & Integration:

• Supported Control Systems: Crestron Home™, Crestron XiO Cloud®, Crestron Custom Programming
• User Interface Customization: Yes, via Crestron Toolbox and SIMPL Windows
• Audio & Video Support: Built-in Speaker & Microphone: Yes - Intercom Support: Yes (when integrated with compatible systems)

Environmental

• Operating Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -4° to 158°F (-20° to 70°C)
• Humidity: 10% to 90% RH (non-condensing)
