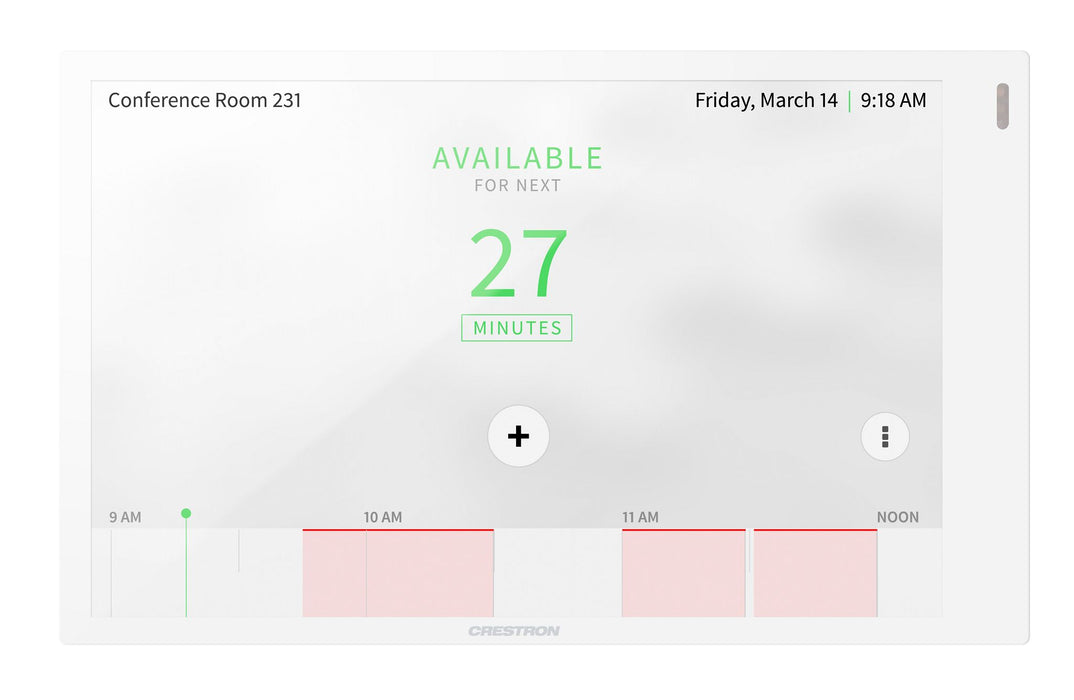

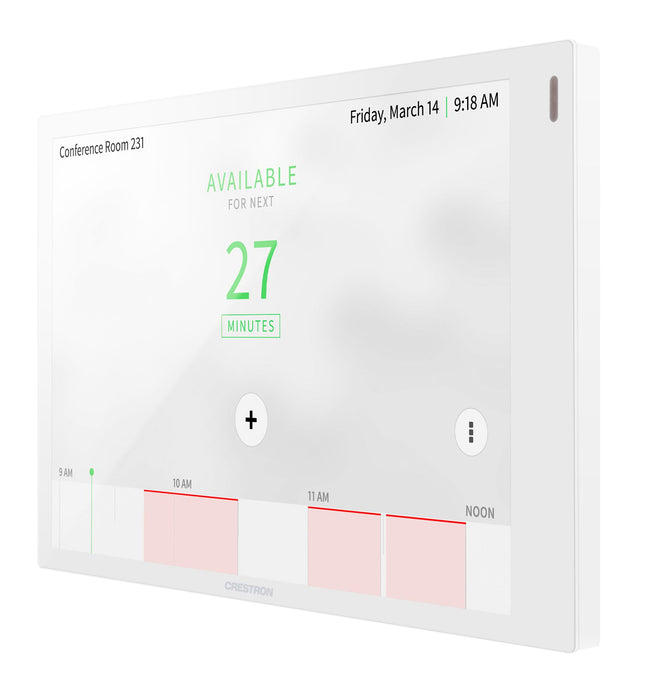

Crestron TSW-770-W-S 7-inch touch screen panel in white, designed for smart control, automation, and AV system integration.

Crestron 7" Wall Mount Touch Screen - White Smooth

by Crestron
Availability:
In stock 3-5 days
$1,724.00 - $1,724.00
$1,724.00
$1,724.00 - $1,724.00
$1,724.00

SKU: TSW-770-W-S

The Crestron TSW-770-W-S is a 7-inch high-resolution capacitive touch screen panel designed for smart control, automation, and AV system integration. Ideal for conference rooms, boardrooms, classrooms, and smart home environments, it offers an intuitive user experience with a modern, slim design. Featuring built-in voice control compatibility, a secure web browser, and seamless Crestron XiO Cloud® service integration, the TSW-770-W-S enhances productivity and convenience.

The Key Features of the Crestron TSW-770-W-S:

  • 7-inch HD Capacitive Touchscreen – Offers a sleek, intuitive interface with multi-touch capability.
  • PoE-Powered – Supports Power over Ethernet for easy installation with a single cable.
  • Custom UI & Configurable Controls – Fully customizable interface for tailored automation and AV control.
  • Seamless Integration – Compatible with Crestron Home™, Crestron XiO Cloud®, and enterprise-grade AV systems.
  • Built-in Camera & Microphone – Ideal for intercom and conferencing applications.
  • Wi-Fi & Wired Connectivity – Flexible networking options for various installation environments.
  • Enhanced Security – Enterprise-level encryption and authentication for secure communication.
  • Voice Control Compatibility – Works with leading voice assistants for hands-free operation.

The Detailed Specifications for the Crestron TSW-770-W-S:

Display: 7-inch (178 mm) capacitive touch LCD, 1280x800 resolution

Touch Technology: Multi-touch, capacitive

Power Supply: Power over Ethernet (PoE 802.3af)

Network Connectivity:

  • 10/100 Mbps Ethernet
  • Wi-Fi® 802.11a/b/g/n/ac (dual-band 2.4 GHz / 5 GHz)

Camera & Audio:

  • Built-in 5 MP camera
  • Integrated microphone and speakers

Mounting Options:

  • Wall mount (surface or recessed)
  • Tabletop installation with optional stand

Compatibility: Crestron Home™, Crestron XiO Cloud®, and enterprise AV solutions

Dimensions (WxHxD): 7.48 in. x 4.76 in. x 1.43 in. (190 mm x 121 mm x 36 mm)

Weight: 1.3 lbs (0.6 kg)

Operating Temperature: 32° to 104°F (0° to 40°C)

Color: White
