The IV-SAM-VX2-P Automate VX Pro by Crestron is designed to enhance the quality and engagement of virtual and hybrid events. It offers production-quality camera shots by providing close-ups of active speakers, creating a more immersive experience for remote participants. The system supports high-definition video conferencing by connecting 12x and 20x optical zoom Crestron 1 Beyond Cameras via 3G-SDI or NDI®|HX, ensuring superior video output resolutions. Additionally, the included SDI to USB-A 3.0 converter facilitates uncompressed high-definition video through your preferred conferencing codec.

The Key Features of the IV-SAM-VX2-P Automate VX Pro by Crestron:

• Voice-Activated Switching: Utilizes room microphones to detect the active speaker and automatically switch camera views accordingly.
• Visual AI AutoFraming and Reframing: Employs Visual AI to direct Crestron 1 Beyond optical zoom cameras, automatically centering participants in the frame and adjusting as they move.
• High-Definition Video Output: Supports connections with 12x and 20x optical zoom cameras via 3G-SDI or NDI®|HX for high-quality video resolutions.
• Built-in Recording and Streaming: Features an encoder and recorder for live RTMP streaming with 316 GB of internal storage for local program and ISO recording.
• Customizable Video Layouts: Offers an easy-to-use graphic designer to create multi-source layouts, including titles, logos, and backgrounds.

The Detailed Specifications for the IV-SAM-VX2-P Automate VX Pro by Crestron:

Automate VX2 Pro Capabilities:

• Titles, Graphics, Layouts: Allows addition of titles, logos, and backgrounds with an intuitive graphic designer for creating multi-source layouts.
• Recording: Records MP4 files (H.264 codec) with user-selectable bitrates up to 10 Mbps; supports ISO recording in MOV format with a recording capacity of 316 GB SSD internal storage.
• Streaming Encoder: Capable of streaming to any RTMP server.
• NDI Support: Supports up to 12 NDI®|HX inputs and 1 NDI®|HX output.
• Camera Control: Manages Crestron 1 Beyond PTZ cameras and tracking cameras over IP.
• System Control: Offers REST API over Network (TCP) for third-party control.
• Compatible Codecs: Provides output via 3G-SDI (includes SDI to USB-A 3.0 converter) for connection to external conferencing codecs running Microsoft Teams®, Zoom Rooms®, and others.
• Configuration: Features browser-based configuration with secure login and user administration; customizable preset options for sleep, wake, and scenario actions.
• Visual AI: Built-in intelligence provides AutoFraming and Reframing with Crestron 1 Beyond Cameras.

Communication:

• Ethernet: Supports 100/1000/2500 Mbps.
• USB: Equipped with USB 3.2 host ports for mouse, keyboard, data drive, and camera signals.
• NDI: Supports up to 12 NDI®|HX inputs and 1 NDI®|HX output.

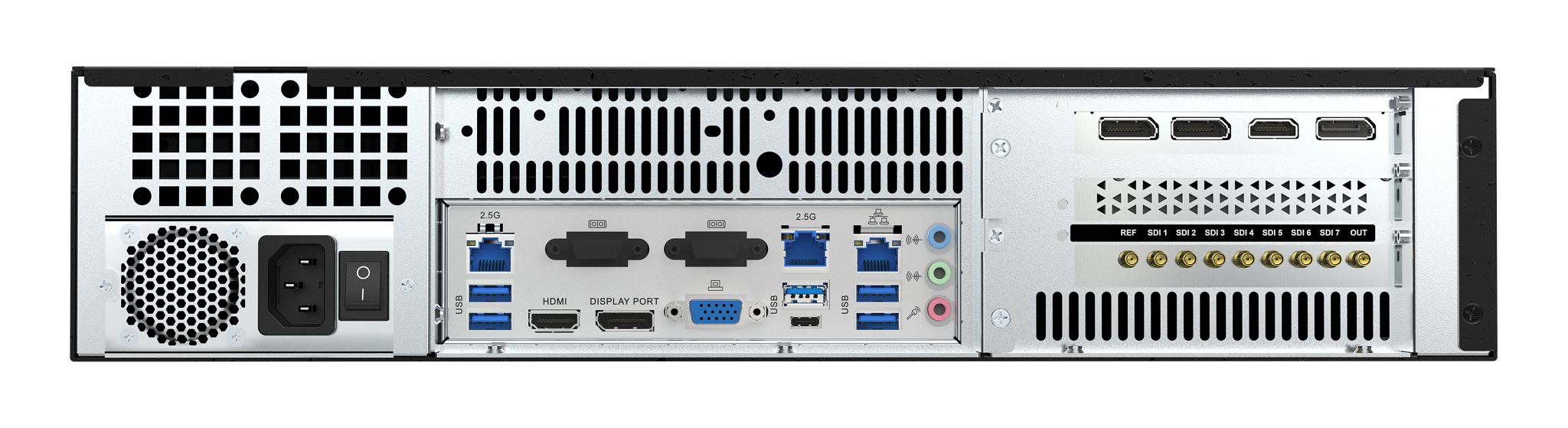

Connectors:

• USB Type-A (Front): (2) USB‑A 3.2 (Gen 2) connectors for keyboard, mouse, or data drive.
• USB Type-A (Rear): (5) USB‑A 3.2 (Gen 2) connectors for peripherals; supports one USB Type-A camera connection.
• USB Type-C (Rear): (1) USB‑C 3.2 (Gen 2, 5V/3A) connector.
