Crestron UC-BX31-T-WM Flex Advanced Small Room Conference System with Jabra PanaCast 50 Video Bar and Wall Mounted Control Interface for Microsoft Teams Rooms

Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast® 50 Video Bar and Wall Mounted Control Interface for Microsoft Teams® Rooms

by Crestron
Availability:
In stock 3-5 days
$4,320.00 - $4,320.00
$4,320.00
$4,320.00 - $4,320.00
$4,320.00

SKU: UC-BX31-T-WM

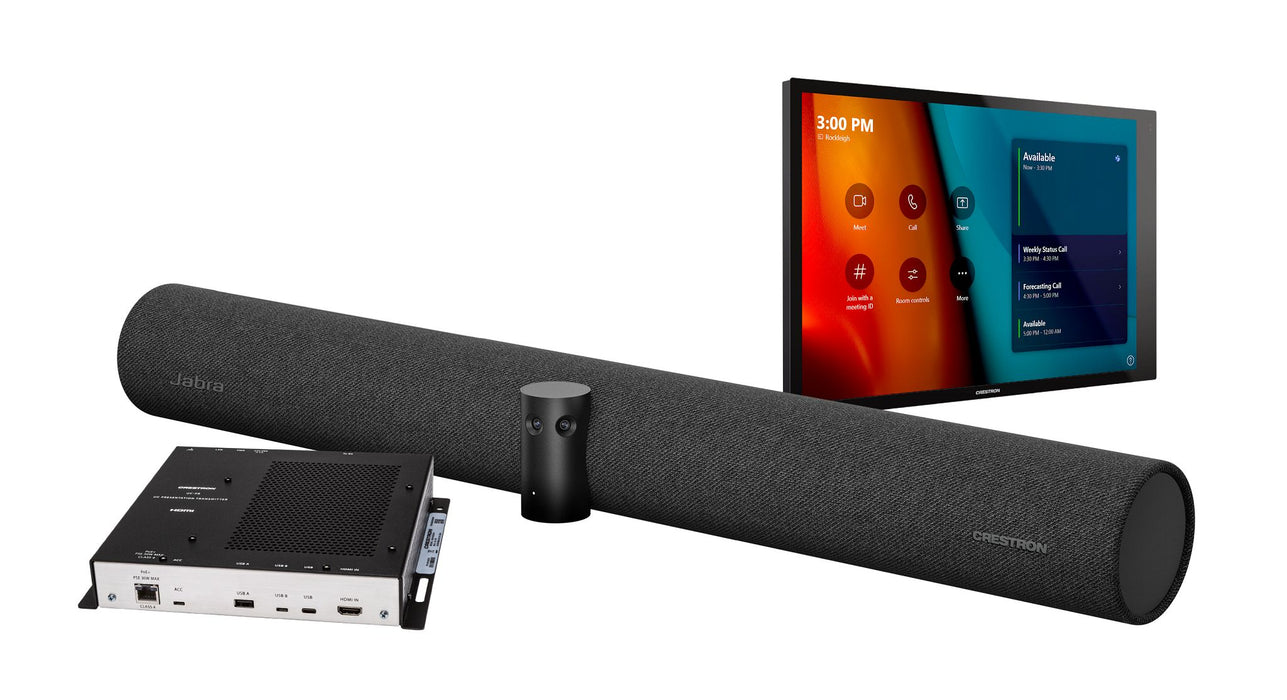

The Crestron UC-BX31-T-WM Flex Advanced Small Room Conference System is a comprehensive solution designed to bring the full Microsoft Teams Rooms experience to small meeting spaces. This system integrates high-quality audio and video components, including the Jabra® PanaCast® 50 Video Bar, to facilitate seamless and efficient collaboration. The wall-mounted 10.1-inch touch screen provides intuitive control over meetings and room functions, enhancing the overall conferencing experience.

Here are the key features of the Crestron UC-BX31-T-WM:

  • Native Microsoft Teams Rooms Experience: Provides a consistent and user-friendly interface for scheduling and conducting meetings.

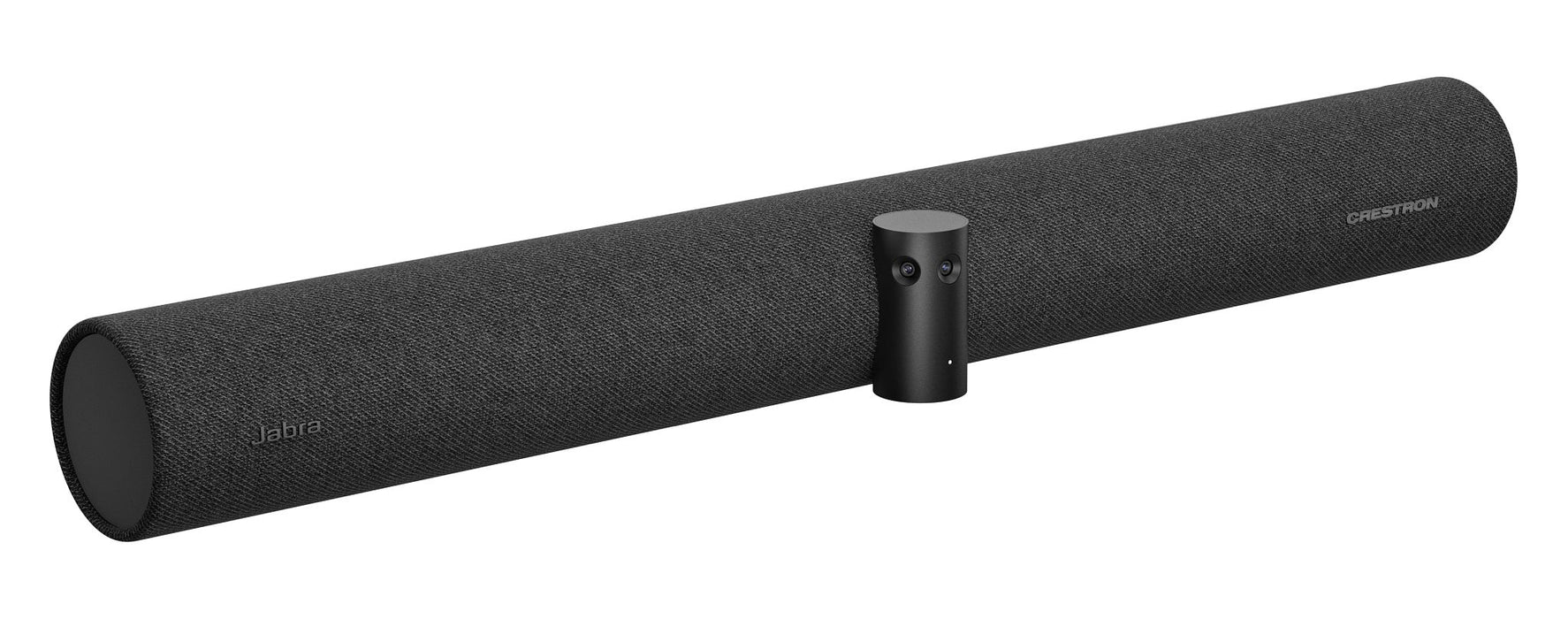

  • High-Definition Video Conferencing: Features the Jabra PanaCast 50 Video Bar with a 13-megapixel camera and 180° horizontal field of view, ensuring clear visuals for all participants.
  • Superior Audio Quality: Equipped with eight microphones and four speakers covering an 80 Hz to 20 kHz frequency range, delivering exceptional audio performance.

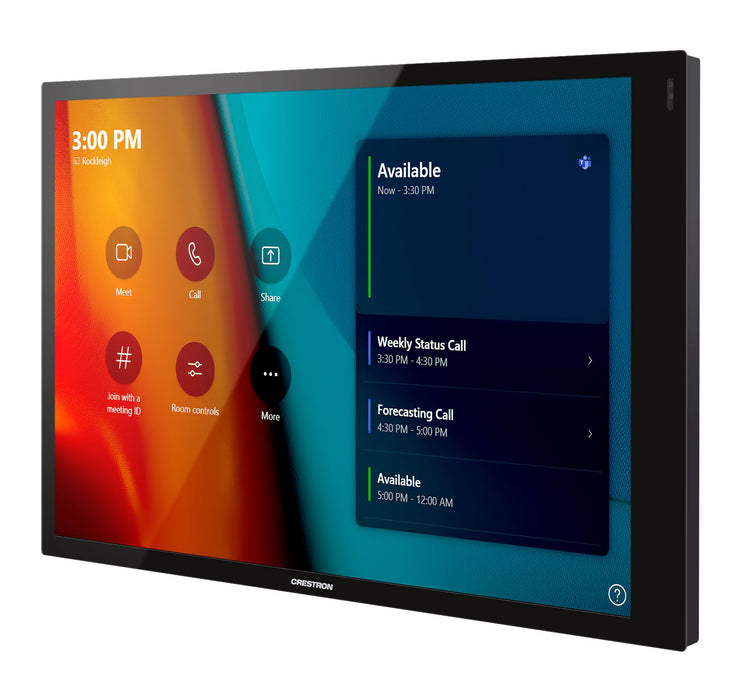

  • Intuitive Touch Screen Control: The 10.1-inch capacitive touch screen allows for easy management of meetings and optional control of room lighting, shades, and thermostats.

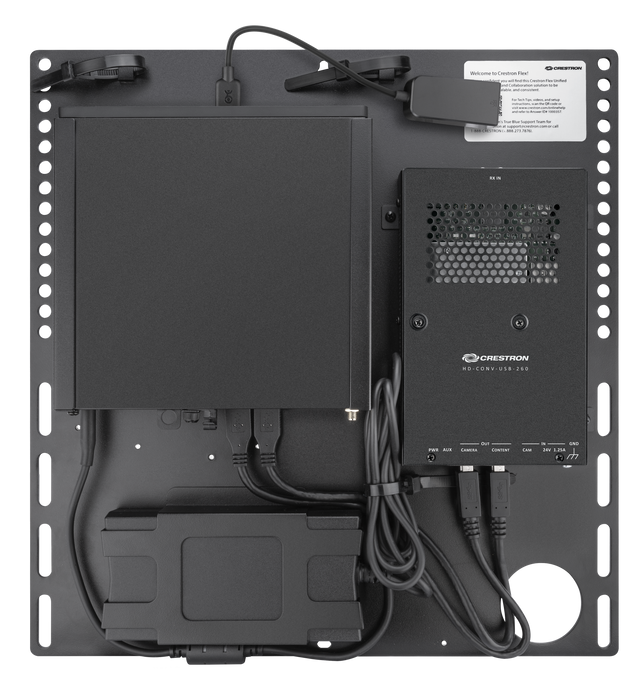

  • Simplified Installation: The UC Bracket Assembly comes preassembled, facilitating quick and straightforward setup.

Here are the detailed specifications for the Crestron UC-BX31-T-WM:

Display:

  • 10.1-inch TFT capacitive touch screen
  • Resolution: 1920 x 1200 pixels
  • Wall-mounted design

Camera:

  • 13-megapixel sensor
  • 180° horizontal and 54° vertical field of view
  • Supports 4K Ultra HD resolution at 30 fps

Audio:

  • Eight microphones with -37 dB sensitivity
  • Frequency response: 100 Hz to 8 kHz
  • Four speakers with 80 Hz to 20 kHz frequency range

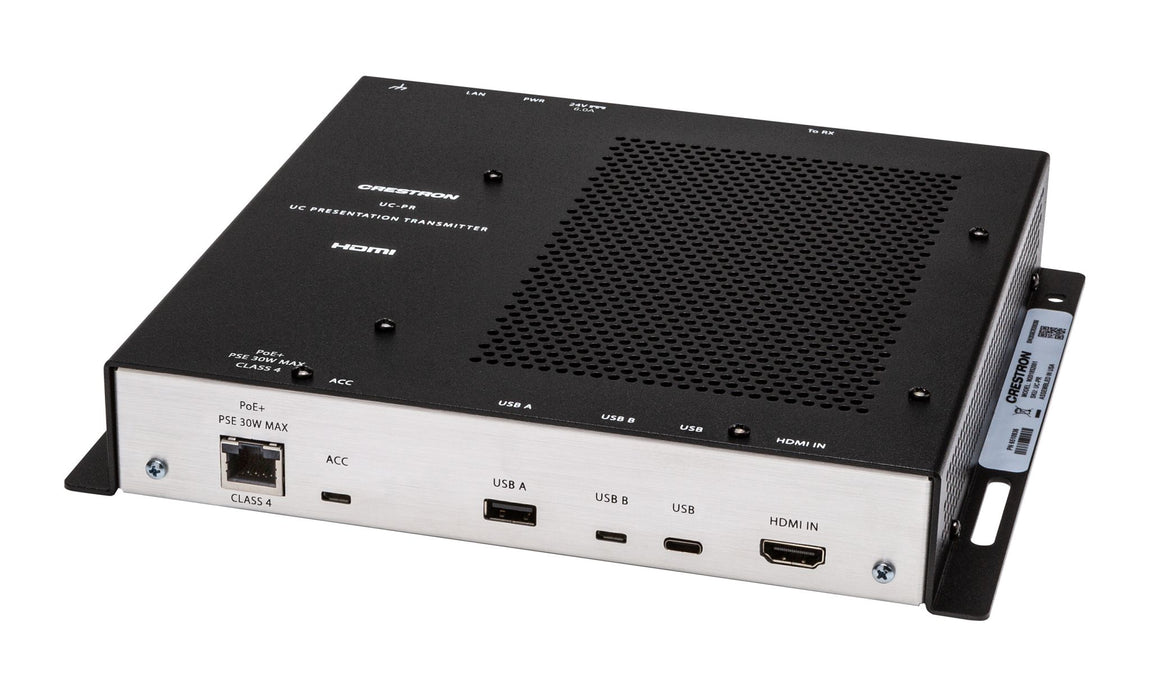

Connectivity:

  • Three Ethernet LAN (RJ-45) ports
  • Five USB ports (Type-A, Type-B, Type-C)
  • One HDMI input port

Power:

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 / 60 Hz
  • Supports Power over Ethernet (PoE)

Dimensions and Weight:

  • Camera: 650 x 125 x 90 mm; 2200 g
  • Interface module: 240 x 149 x 51 mm; 730 g
  • Touch screen: 235 x 208 x 40 mm
