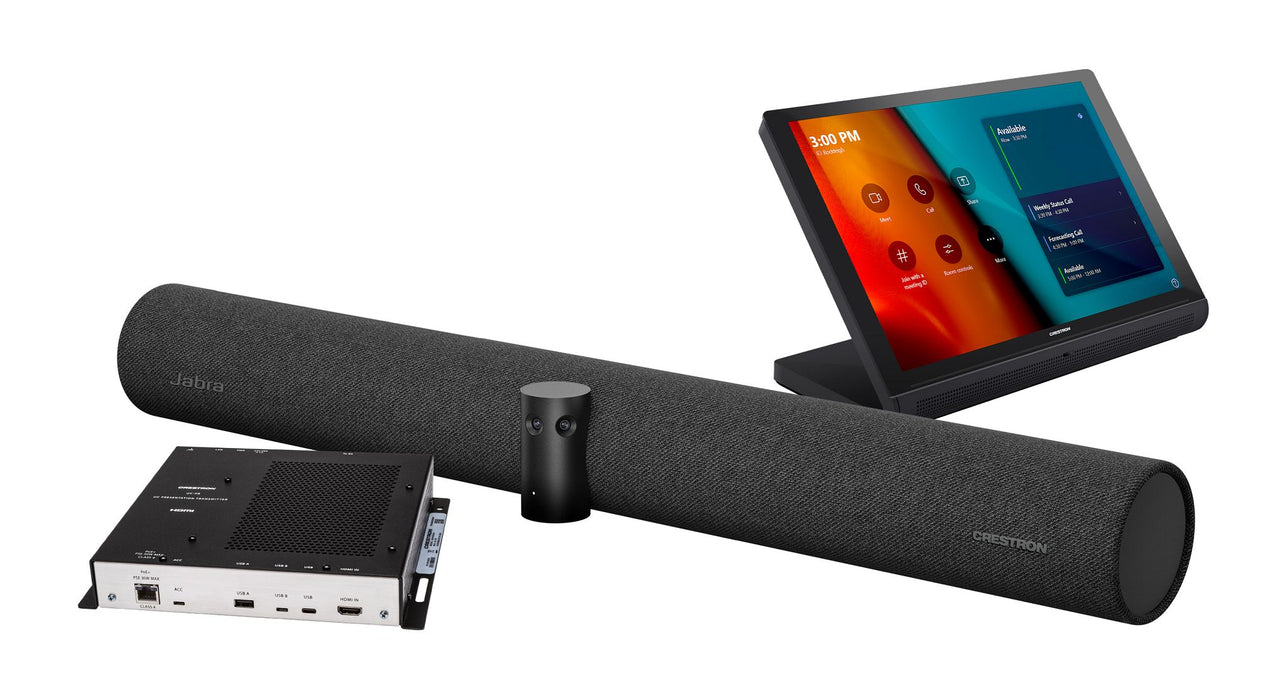

The Crestron UC-BX31-T is an advanced conferencing solution designed for small meeting spaces, offering a seamless Microsoft Teams Rooms experience. This system integrates high-quality audio and video components to facilitate effective and efficient collaboration. It includes a 10.1-inch capacitive touch screen for intuitive control, a Jabra PanaCast 50 video bar for exceptional video and audio quality, and a UC Presentation Transmitter to support BYOD (Bring Your Own Device) functionality. The system is engineered for enterprise-grade security and simplified deployment, making it ideal for both corporate and SMB environments.

The Key Features of the Crestron UC-BX31-T:

• Native Microsoft Teams Rooms Experience: Provides a complete Teams Rooms solution, ensuring a consistent and familiar user interface.
• Intuitive Touch Screen Control: Features a 10.1-inch capacitive touch screen (TS-1070) for easy meeting management and optional room control functions.
• High-Definition Video Conferencing: Utilizes the Jabra PanaCast 50 video bar, equipped with a 13 MP camera and 180° horizontal field of view, delivering clear video and audio.
• BYOD Support: Includes a UC Presentation Transmitter (UC-PR) that allows users to connect their devices and utilize their preferred UC platform.
• Simplified Installation: Comes with a pre-assembled UC Bracket Assembly (UC-BRKT-250-P-T-ASSY) for quick and easy setup.
• Enterprise-Grade Security: Ensures secure connections and communications over enterprise or SMB networks.

The Detailed Specifications for the Crestron UC-BX31-T:

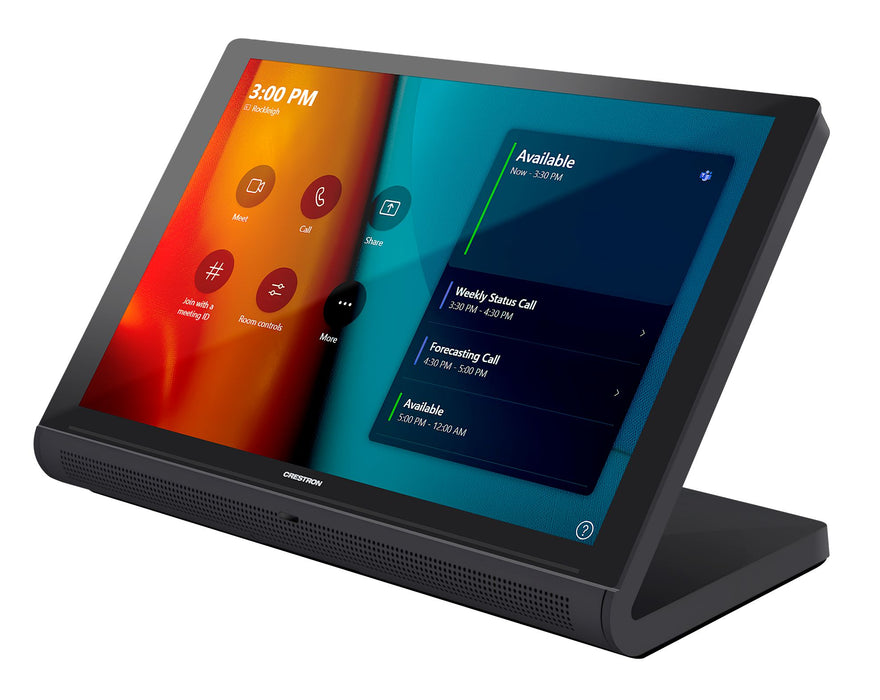

Touch Screen (TS-1070-B-S):

• Display: 10.1-inch (257 mm) capacitive touch screen
• Resolution: 1920 x 1200 pixels
• Dimensions: 9.6 in. (244 mm) width x 6.3 in. (160 mm) height x 3.2 in. (82 mm) depth
• Weight: 2.2 lb (1.0 kg)

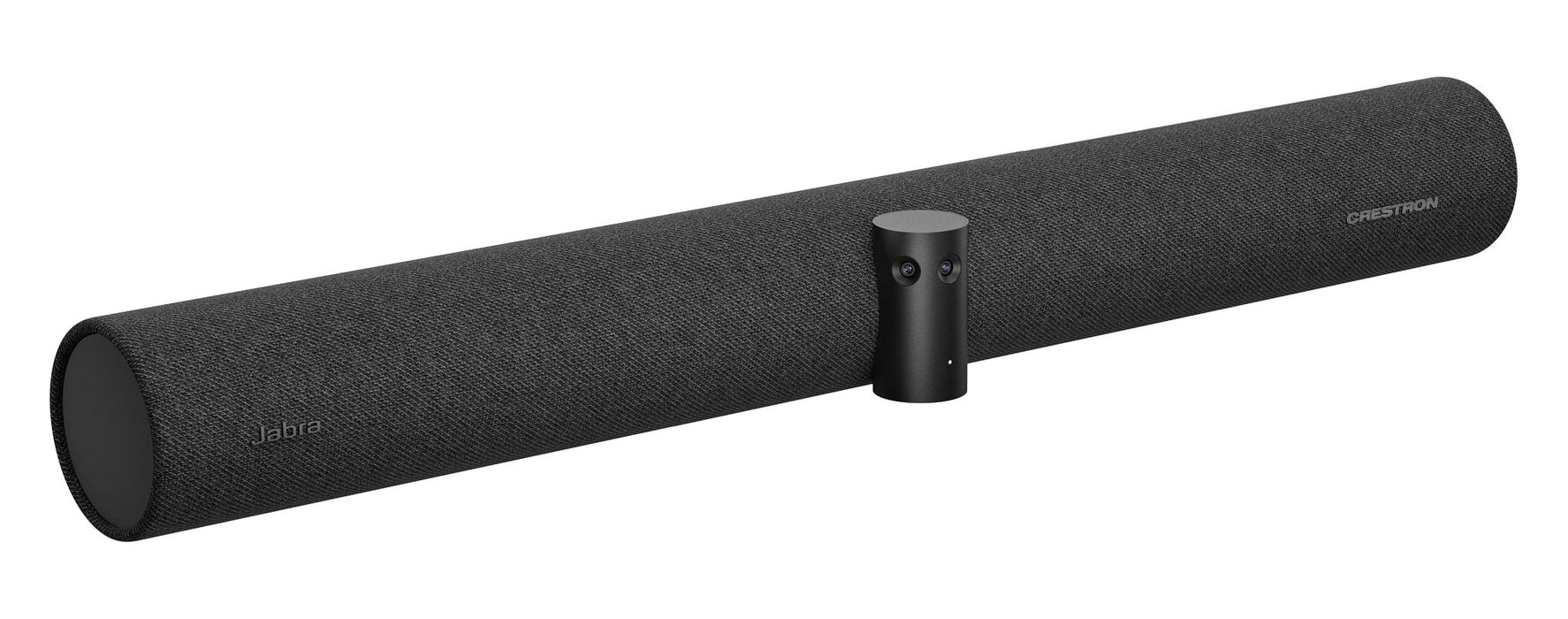

Jabra PanaCast 50 Video Bar (UC-SB-P50):

• Camera: 13 MP with 180° horizontal field of view
• Video Resolution: Up to 3840 x 1080 pixels at 30 fps
• Audio: Eight microphones and four speakers covering 80 Hz to 20 kHz
• Dimensions: 25.6 in. (650 mm) width x 4.9 in. (125 mm) height x 3.5 in. (90 mm) depth
• Weight: 4.85 lb (2.2 kg)

UC Presentation Transmitter (UC-PR):

• Connectivity: USB-C port supporting up to 60 W device charging
• Dimensions: 9.25 in. (235 mm) width x 8.2 in. (208 mm) depth x 1.58 in. (40 mm) height
• Weight: 1.6 lb (0.73 kg)

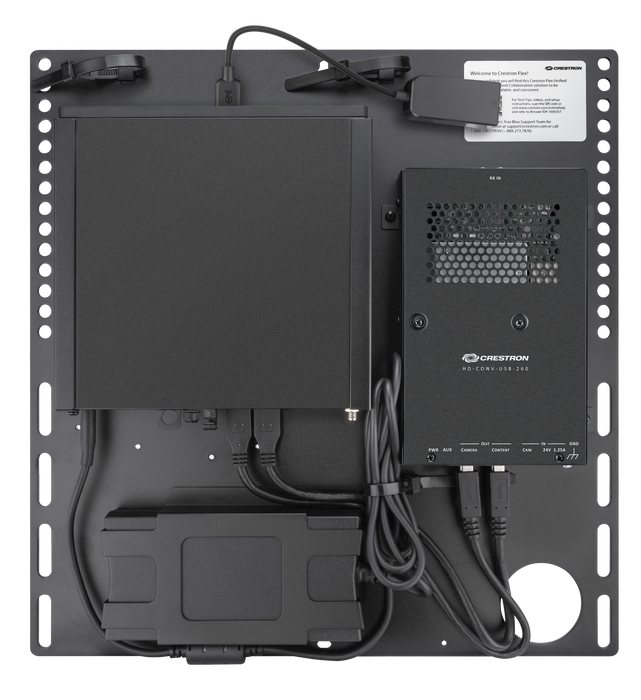

UC Bracket Assembly (UC-BRKT-250-P-T-ASSY):

• Components: UC Engine (mini PC with Microsoft Teams video), USB-to-Ethernet adapter, HDMI over CAT5 to USB 3.0 converter
• Mounting: Ready-to-mount bracket for simplified installation

Power Supply:

• Input Voltage: 100-240 VAC
• Frequency: 50/60 Hz
• Output: 24 VDC, 6 A

Network:

• Ethernet: Gigabit Ethernet connectivity
• Supported Protocols: TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, IEEE 802.1X, SNMP, IPv4, IPv6
