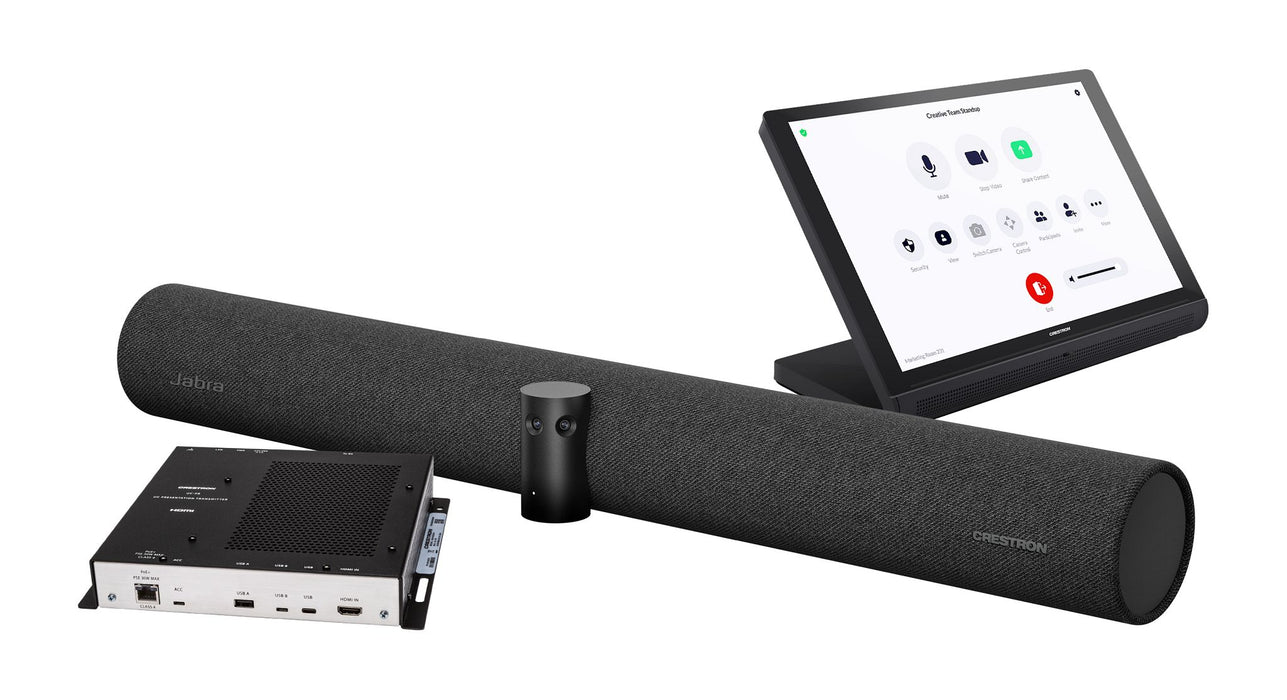

The Crestron UC-BX31-Z Flex Advanced Small Room Conference System is a comprehensive solution designed to enhance video conferencing experiences in small meeting spaces. Seamlessly integrating with Zoom Rooms™ software, this system ensures high-quality audio and video collaboration, making meetings more productive and engaging. With native Zoom Rooms integration, users benefit from a consistent and intuitive interface, simplifying meeting initiation and management. The system also supports Bring Your Own Device (BYOD) functionality, allowing users to utilize their preferred UC platforms effortlessly. Installation is straightforward, with preassembled components ensuring quick deployment without the need for custom design or programming.

The Key Features of the Crestron UC-BX31-Z:

• Native Zoom Rooms™ Integration: Provides a consistent user experience with simple operation and one-touch meeting joins.
• High-Definition Video Conferencing: The Jabra® PanaCast® 50 video bar delivers panoramic 4K resolution with a 180° horizontal field of view, ensuring all participants are clearly visible.
• Intuitive User Interface: A 10.1-inch capacitive touch screen offers superior conferencing control, with optional room control features for lighting, shades, and thermostats.
• BYOD Support: Allows users to connect their laptops to utilize their own UC conference platforms, enhancing flexibility.

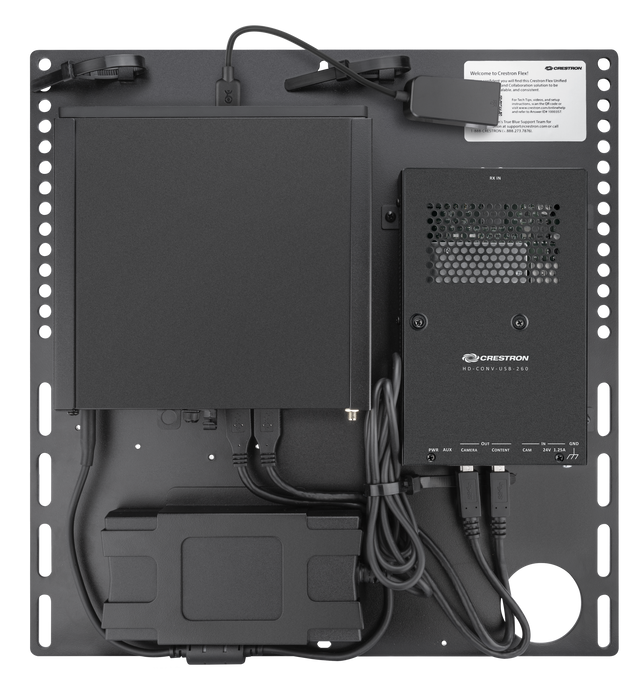

• Simplified Deployment: The UC Bracket Assembly comes preassembled, simplifying installation and reducing setup time.
• Enterprise-Grade Security: Ensures secure connections and communications over any enterprise or SMB network.

The Detailed Specifications for the Crestron UC-BX31-Z:

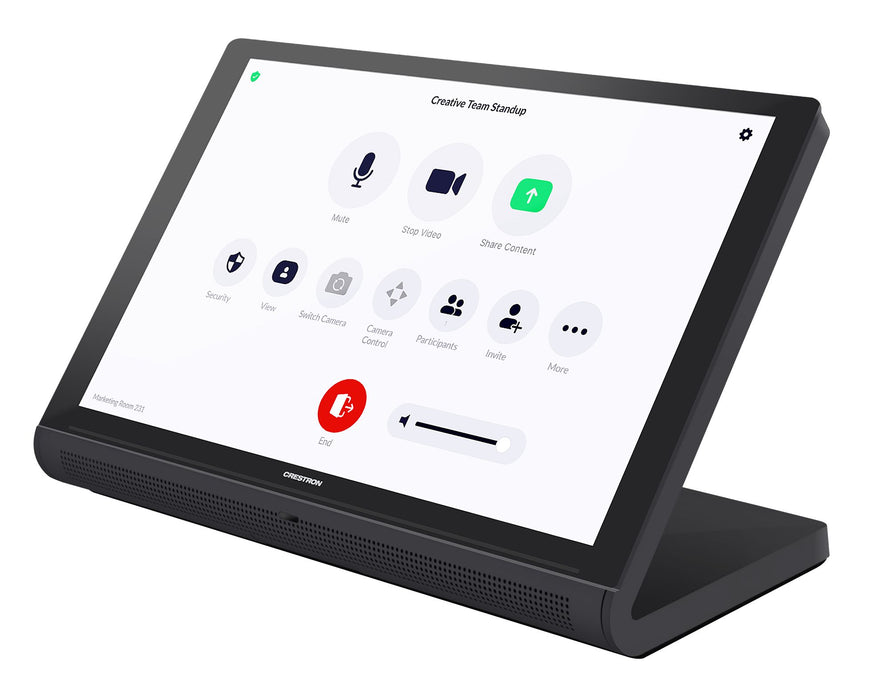

Tabletop Touch Screen (TS-1070-B-S):

• Display: 10.1-inch capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels.
• Ethernet: 100/1000 Mbps, supporting various protocols including TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant.
• Power over Ethernet (PoE): IEEE 802.3at Type 2 compliant PoE+ PD; requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management.
• Construction: Plastic with a smooth black finish and edge-to-edge glass with black surround.
• Dimensions: Height: 5.29 in. (134 mm); Width: 9.63 in. (245 mm); Depth: 4.67 in. (119 mm).
• Weight: 2.44 lb (1105 g).

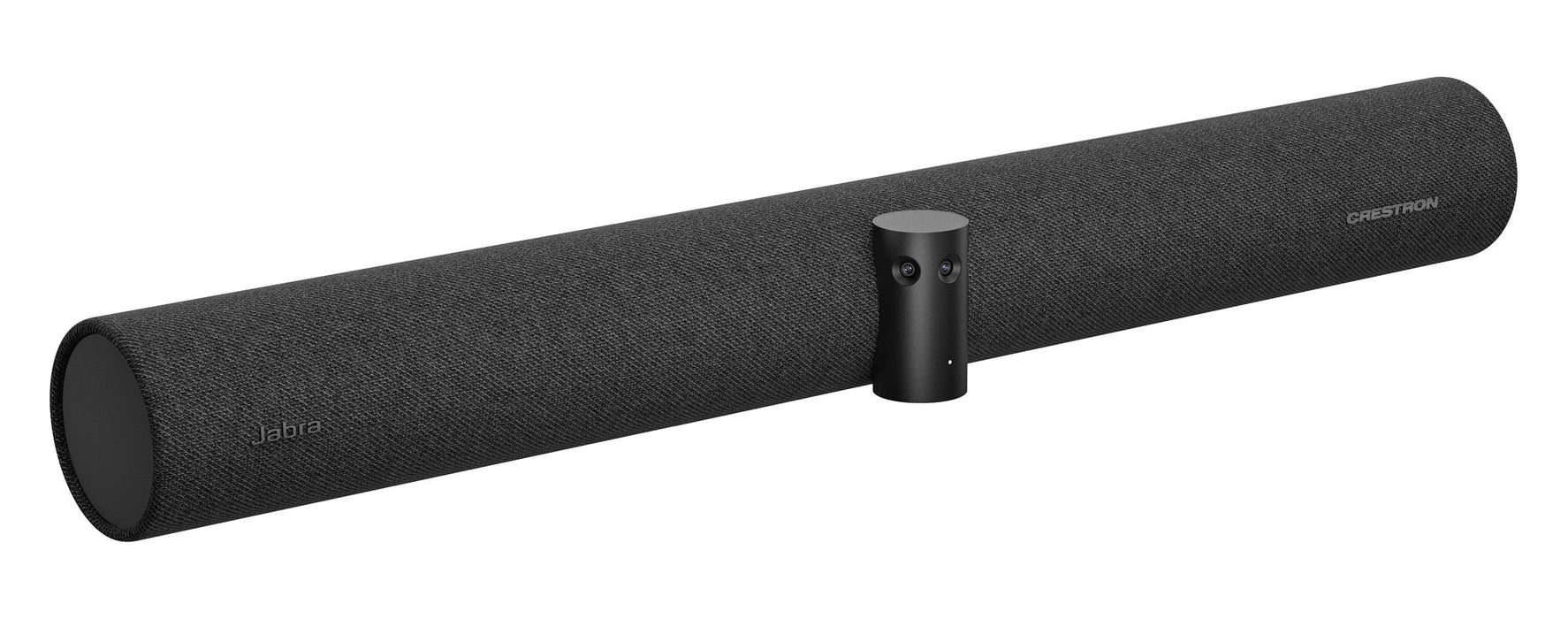

Jabra® PanaCast® 50 Video Bar:

• Speakers: Four speakers (stereo); 2-inch woofers and 3/4-inch tweeters; frequency response from 80 Hz to 20 kHz; automatic speaker detection.
• Microphones: Eight-microphone beamforming array.
• Cameras: Three 13-megapixel cameras with a 180º horizontal field of view and 54º vertical field of view; automatic digital zoom dynamically frames people within 11 ft (3.5 m); camera resolution of 3840 x 1080 @ 30 fps.
• Power: Powered from an external power pack; Input: 100-240VAC, 50/60 Hz; Output: 5A @ 12V.
• Enclosure: Black speaker and camera housing with rear air ventilation.
