The Crestron UC-BX30-Z-WM is an advanced conferencing solution designed for small meeting spaces, integrating seamlessly with Zoom Rooms® software. This system combines high-quality audio and video components to facilitate effective collaboration and content sharing. Its user-friendly interface and comprehensive features make it an ideal choice for modern workplaces seeking reliable and efficient communication tools.

The key features of the Crestron UC-BX30-Z-WM:

• Native Zoom Rooms® Software Experience: Provides integrated audio and video connectivity for effortless collaboration and content sharing.
• Intuitive User Interface: Features a 10.1-inch capacitive touch screen display (TSW-1070) for superior conferencing control in meeting rooms, huddle spaces, and executive offices.
• High-Quality Audio and Video: Includes a smart soundbar with an integrated conferencing camera, delivering clear audio and sharp video for effective communication.
• Simplified Deployment: The UC Bracket Assembly comes preassembled, simplifying installation and reducing setup time.
• Versatile Display Support: Supports up to three video displays (not included), offering flexibility to accommodate various room configurations.

Here are the detailed specifications for the Crestron UC-BX30-Z-WM:

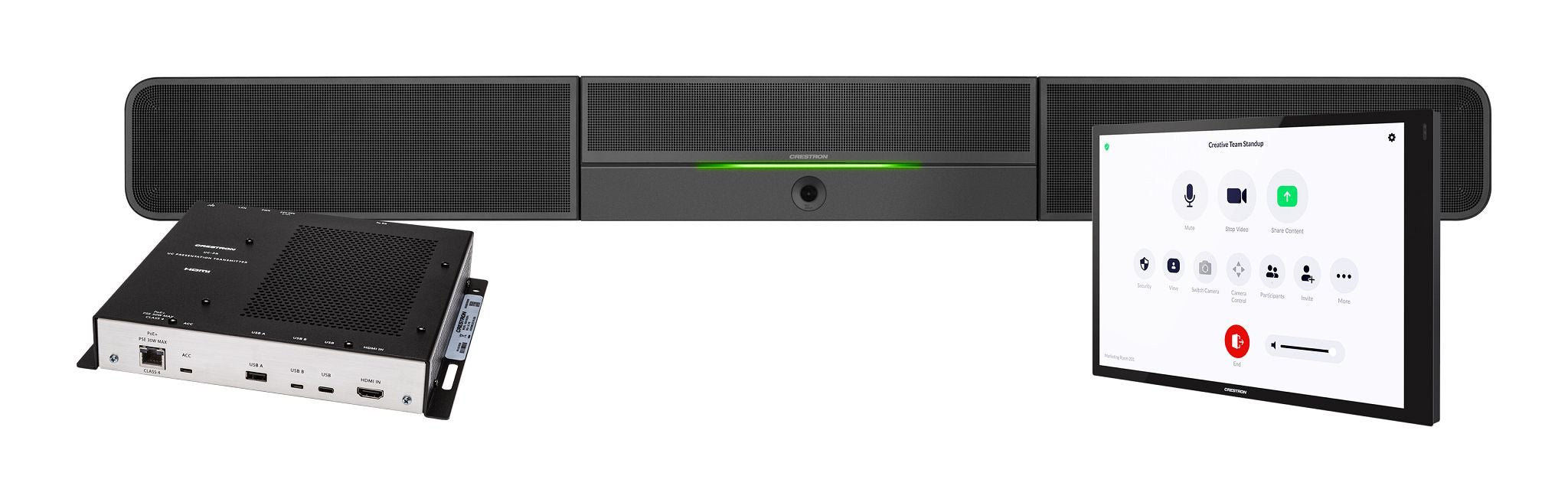

Included Components:

• 10.1-inch wall mount touch screen (TSW-1070-B-S)
• UC Bracket Assembly (UC-BRKT-260-P-Z-ASSY)
• Smart Soundbar and Conferencing Camera (UC-SB1-CAM-FLEX)
• UC Presentation Transmitter (UC-PR)
• PoE Injector
• Cables

Touch Screen Display:

• Size: 10.1 inches (257 mm)
• Type: Capacitive

Audio:

• Speaker Output: Stereo, 20W per channel
• Frequency Response: 80 Hz to 20 kHz
• Integrated Microphone Frequency Response: 20 Hz to 8 kHz

Video:

• Camera Resolution: 1080p
• Field of View: 150° diagonal, 120° horizontal, 90° vertical
• Digital Zoom Capability

Networking:

• Ethernet: 10/100 Mbps
• PoE+: IEEE 802.3at compliant

Physical Dimensions:

• Smart Soundbar: Width: 43.6 inches (1107 mm) - Height: 4.6 inches (117 mm) - Depth: 3.9 inches (99 mm)
• Touchscreen: Width: 9.6 inches (244 mm) - Height: 5.9 inches (149 mm) - Depth: 2 inches (51 mm)

Power Requirements:

• 100-240V AC, 50/60 Hz
