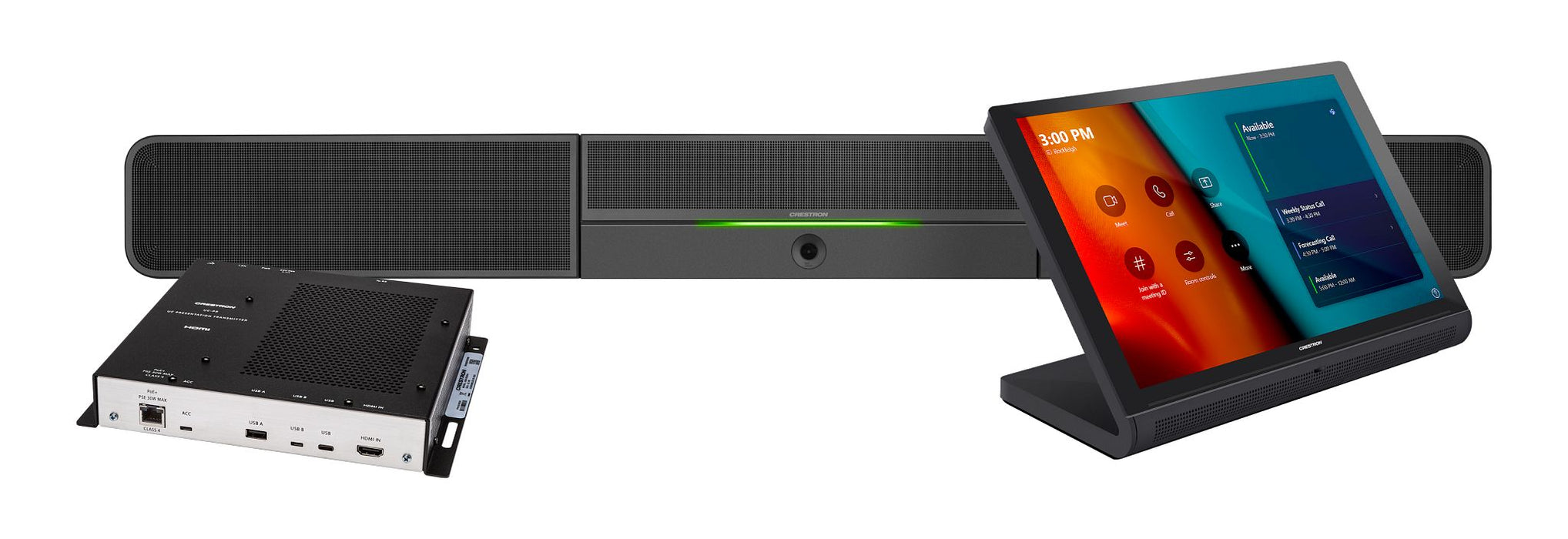

The Crestron UC-BX30-T-GV is a sophisticated conferencing solution designed for small meeting spaces, delivering a seamless Microsoft Teams Rooms experience. This system integrates a high-definition video soundbar, a 10.1-inch tabletop touch screen, and a powerful UC engine to facilitate efficient and secure collaboration. Tailored for government applications, the UC-BX30-T-GV ensures compliance with stringent security standards while providing exceptional audio and video quality.

The Key Features of the Crestron UC-BX30-T-GV:

• Native Microsoft Teams Rooms Experience: Provides a consistent and intuitive interface for users, enhancing meeting efficiency.
• 10.1-Inch Touch Screen: The TS-1070-GV-B-S touch screen offers intuitive control over meetings and room functions.
• Integrated Video Soundbar: The UC-SB1-CAM-FLEX combines a high-quality speaker and camera to deliver clear audio and sharp video.
• Secure and Compliant: Designed to meet government security requirements, ensuring safe communications.
• Flexible Connectivity: Supports single or dual video displays and various connectivity options to accommodate different room configurations.

The Detailed Specifications for the Crestron UC-BX30-T-GV:

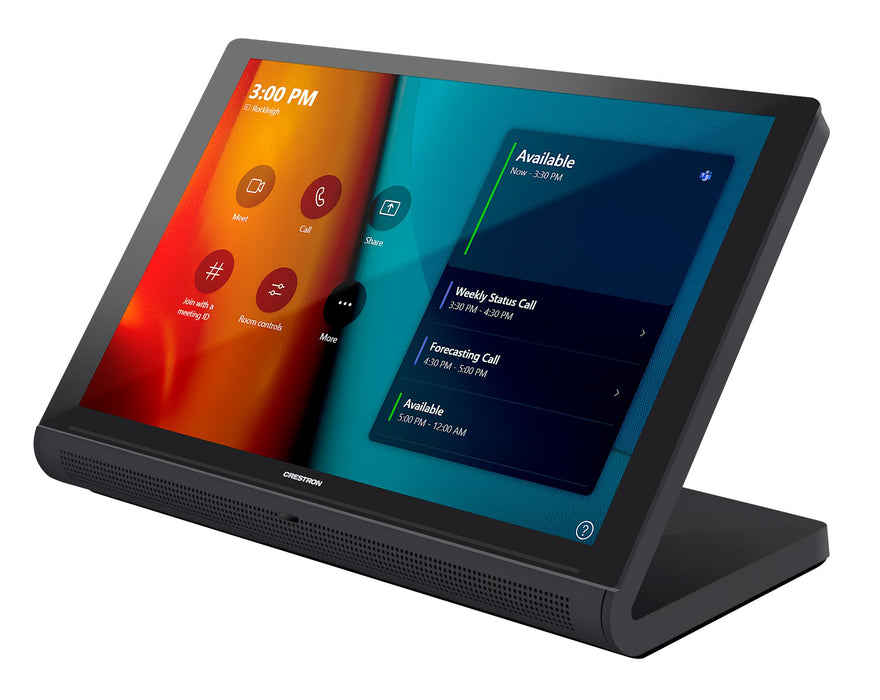

Touch Screen (TS-1070-GV-B-S):

• 10.1-inch (257 mm) capacitive touch display
• Resolution: 1920 x 1200
• Ethernet: 10/100 Mbps; PoE+
• Dimensions: 9.63 x 6.17 x 4.29 in. (244 x 157 x 109 mm)
• Weight: 2.1 lb (0.96 kg)

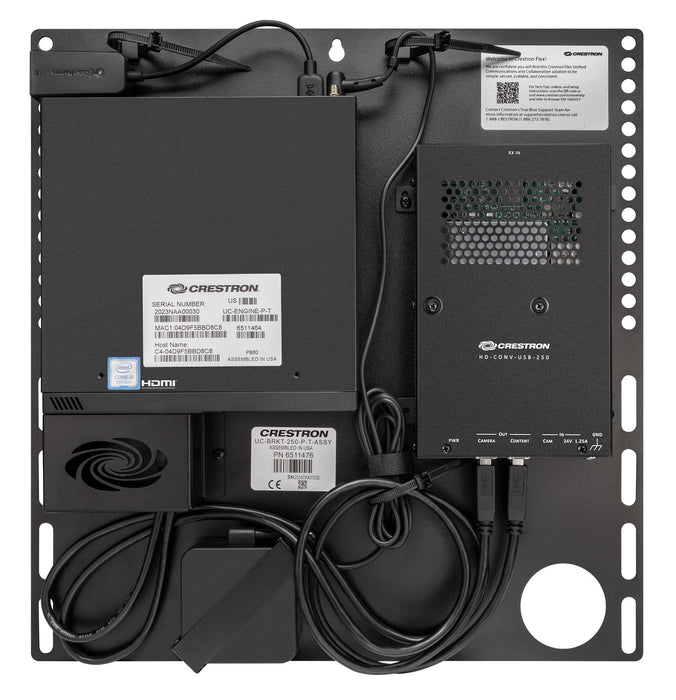

• UC Engine:

• Intel Core processor
• RAM: 8 GB
• Storage: 128 GB SSD
• OS: Windows 10 IoT Enterprise
• Networking: Gigabit Ethernet
• Wireless: Wi-Fi 5, Bluetooth 5.0

Video Soundbar (UC-SB1-CAM-FLEX):

• Camera: Full HD 1080p, 30 fps
• Field of View: 150° diagonal
• Microphone: 4-element beamforming array
• Speaker: Full-range, high-efficiency
• Connectivity: USB 3.0, HDMI out
• Mounting: Wall mount kit included

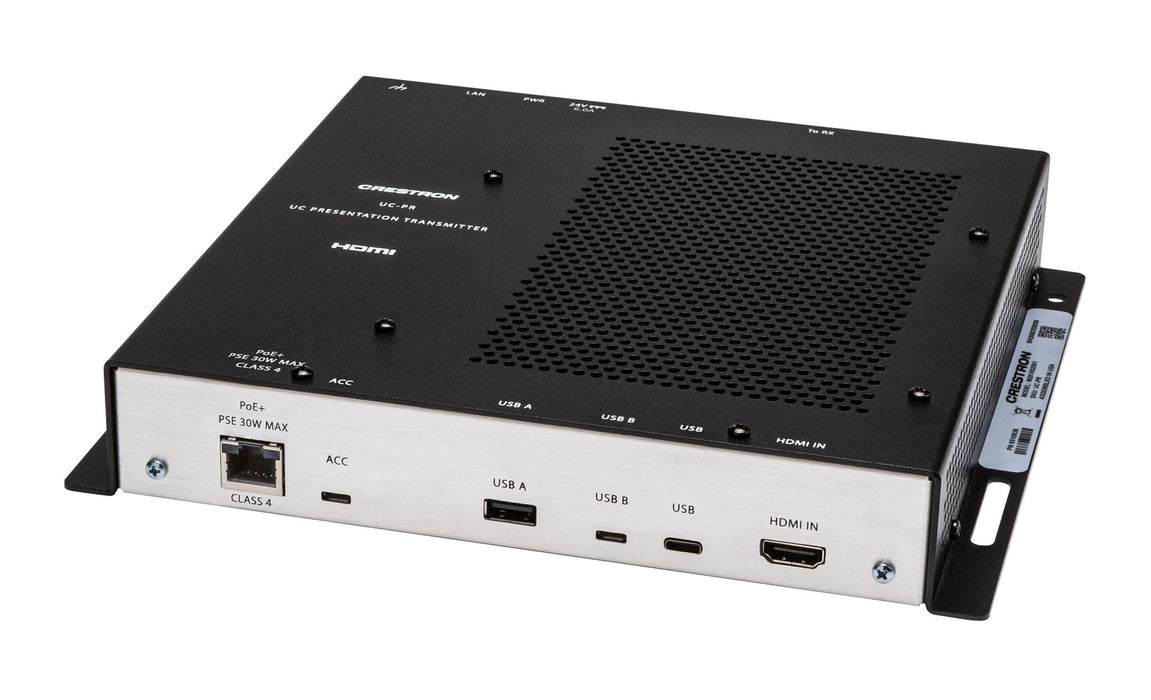

UC Presentation Transmitter (UC-PR):

• Inputs: HDMI, USB-C
• Outputs: HDMI, USB
• Control: RS-232, IR
• Power: PoE+

General:

• Power Supply: 100-240V AC, 50/60 Hz
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (non-condensing)
• Compliance: TAA, FCC Class A, UL 60950
