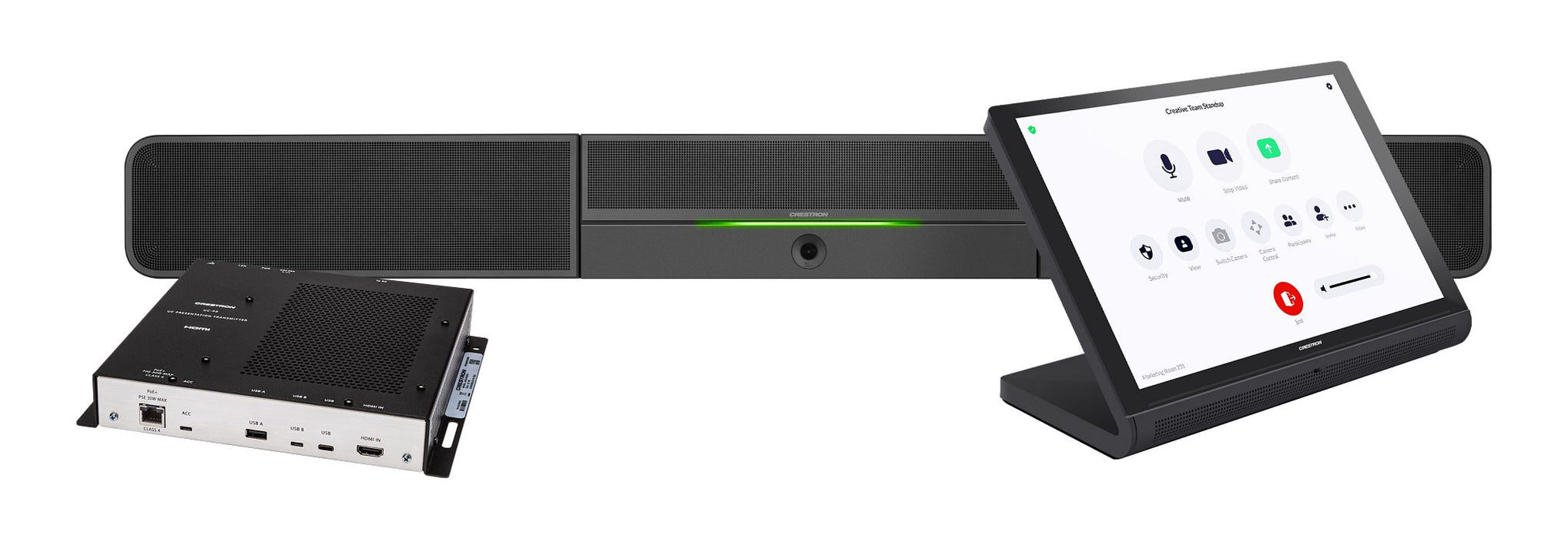

The Crestron UC-BX30-Z Flex Advanced Small Room Conference System is a comprehensive solution designed to optimize video conferencing in small meeting spaces. It seamlessly integrates with Zoom Rooms® software, facilitating effortless collaboration and content sharing. The system supports up to three video displays (not included) and includes a 10.1-inch tabletop touch screen, a smart soundbar with an integrated camera, a UC bracket assembly, a UC presentation transmitter, a PoE injector, and all necessary cables for a streamlined setup.

The Key Features of the Crestron UC-BX30-Z:

• Native Zoom Rooms® Experience: Preloaded with Zoom Rooms® software, enabling high-quality audio and video connectivity for efficient collaboration.
• Intuitive User Interface: The 10.1-inch capacitive touch screen (TS‑1070) offers an intuitive interface for controlling meetings and can optionally manage room lighting, shades, and thermostats.
• High-Quality Audio and Video: The smart soundbar (UC-SB1-CAM-FLEX) delivers clear audio, while the integrated camera ensures sharp video capture, enhancing the overall conferencing experience.
• Simplified Installation: The UC Bracket Assembly comes preassembled with essential components, simplifying the installation process and reducing setup time.
• BYOD Support: The system allows users to connect their own devices, supporting various UC platforms beyond Zoom Rooms®.

The Detailed Specifications for the Crestron UC-BX30-ZB:

Included Components:

• TS-1070-B-S: 10.1-inch (257 mm) tabletop touch screen, black.
• UC-BRKT-250-P-Z-ASSY or UC-BRKT-260-P-Z-ASSY: UC Bracket Assembly comprising: 1) UC Engine: Mini PC with Zoom Rooms® video, 2) HDMI® over CAT5 to USB 3.0 converter for content ingest 3)Mounting hardware.
• UC-PR: UC Presentation Transmitter.
• UC-SB1-CAM-FLEX: Smart Soundbar and Conferencing Camera.

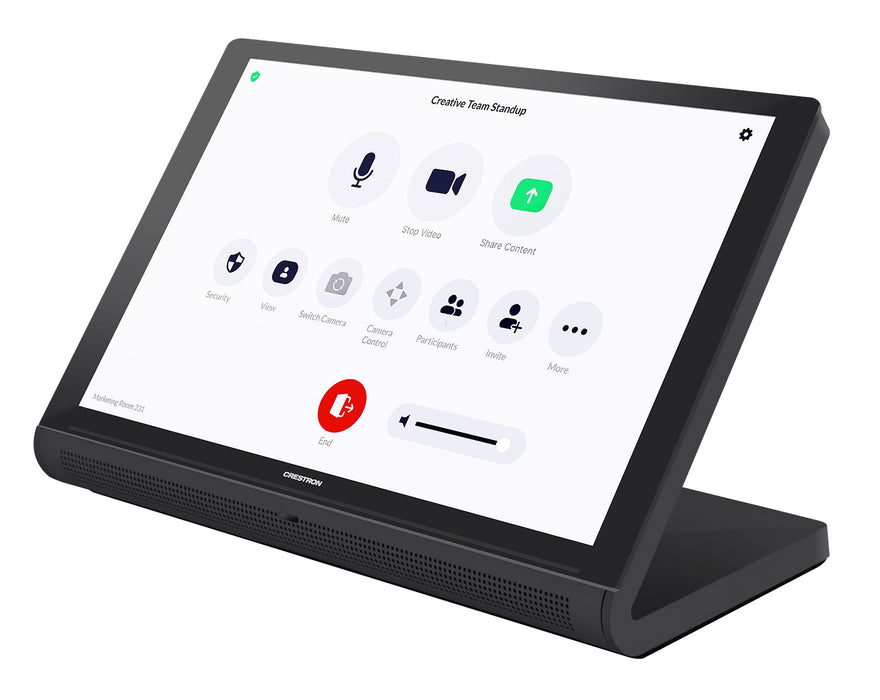

Touch Screen (TS-1070-B-S):

• Display: 10.1-inch (257 mm) diagonal capacitive touch screen.
• Resolution: 1280 x 800 pixels.
• Dimensions: 9.6 in. (243 mm) width x 6.9 in. (176 mm) height x 3.6 in. (92 mm) depth.
• Weight: 2.1 lb (0.95 kg).

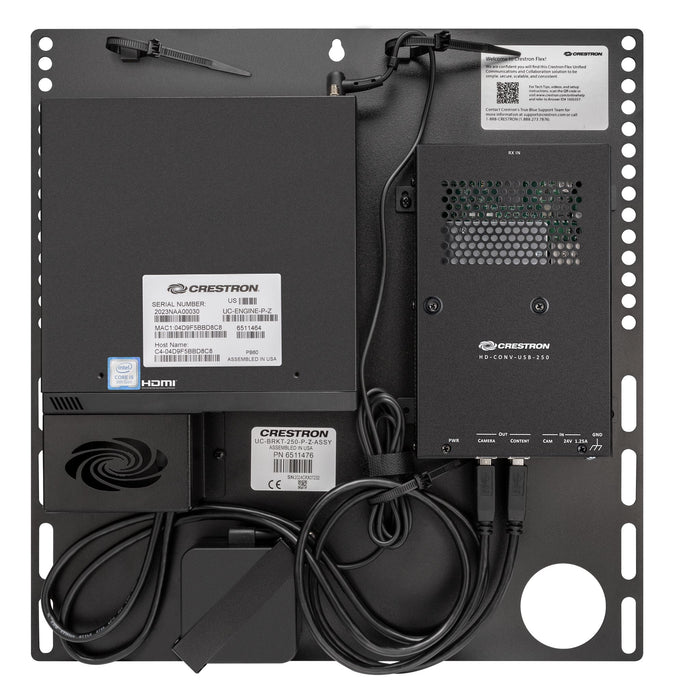

UC Bracket Assembly:

• UC Engine: Mini PC with Zoom Rooms® video.
• Connectivity: HDMI®, USB, and Ethernet ports.
• Mounting: Surface mount for under-table installation; attaches to a single rack rail.
• Dimensions: Height: 1.58 in. (40 mm); Width: 9.25 in. (235 mm); Depth: 8.20 in. (208 mm).

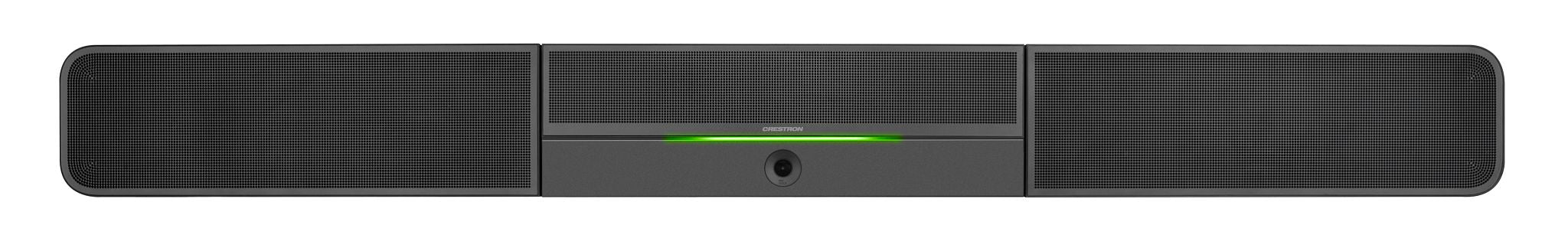

Smart Soundbar and Conferencing Camera (UC-SB1-CAM-FLEX):

• Audio Features: High-powered stereo speakers, adaptive beamforming microphone array.
• Camera Features: 1080p HD video, ultra-wide 150° diagonal field of view.
• Mounting: Wall mount bracket included.
• Dimensions: Width: 43.9 in. (1115 mm); Height: 4.7 in. (120 mm); Depth: 3.5 in. (89 mm).

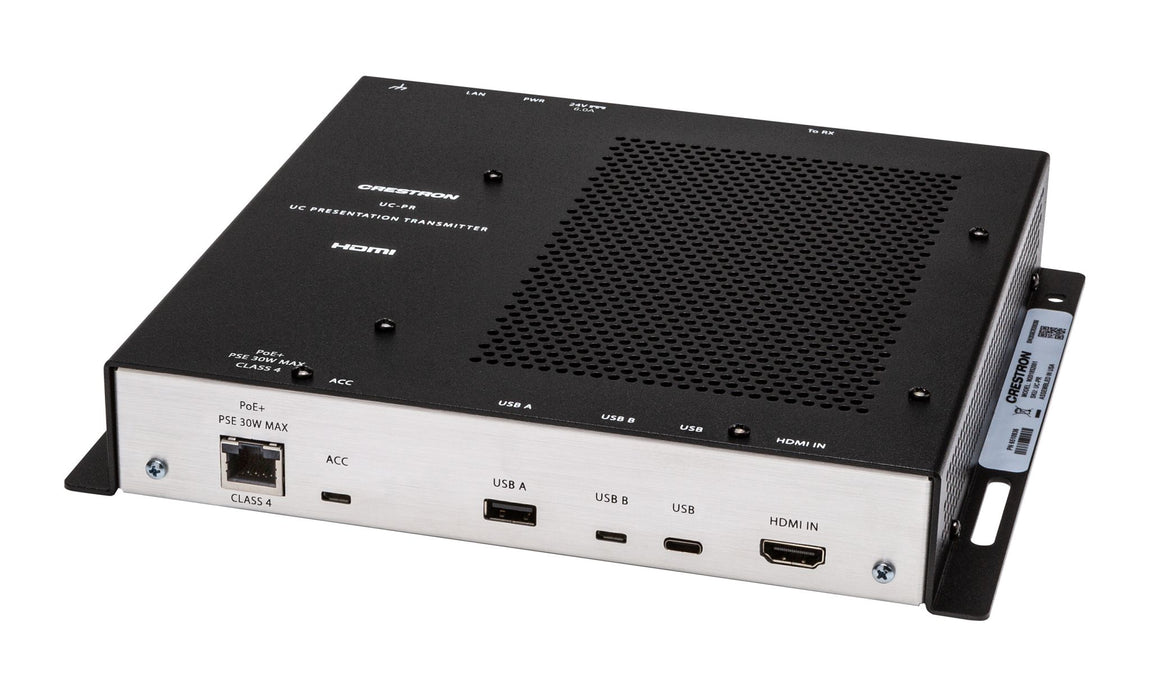

UC Presentation Transmitter (UC-PR):

• Connectivity: USB-C® port supporting up to 60 W charging, HDMI® input, USB 3.0 port.
• Dimensions: Width: 4.1 in. (104 mm); Height: 1.2 in. (30 mm); Depth: 4.1 in. (104 mm).

Power Supply:

• Input: 100-240V AC, 50/60 Hz.
• Output: 24V DC, 6A.

Environmental:

• Operating Temperature: 32° to 104°F (0° to 40°C).
• Storage Temperature: -4° to 140°F (-20° to 60°C).
• Humidity: 10% to 90% RH (non-condensing).
