The Crestron Flex UC-MX70-T is a premium Microsoft Teams® Rooms system designed to elevate video conferencing in medium to large meeting spaces. Featuring a sleek touch-screen tabletop console, a high-performance 4K camera, and enterprise-grade audio components, the UC-MX70-T ensures seamless collaboration with crystal-clear communication. The system integrates effortlessly with Microsoft Teams, offering a consistent and intuitive meeting experience with one-touch join functionality. Engineered for reliability and ease of deployment, the UC-MX70-T enhances productivity with advanced audio and video technologies, making it an essential solution for modern conference rooms.

The Key Features of the Crestron Flex UC-MX70-T:

• Native Microsoft Teams® Rooms Experience – Fully optimized for Teams with one-touch join and seamless integration.
• High-Definition 4K Camera – Ensures ultra-clear video quality with auto-framing and intelligent zoom.
• Touchscreen Control Console – Intuitive tabletop device for managing meetings and calls effortlessly.
• Superior Audio Performance – Includes a high-fidelity speakerphone and beamforming microphone array for crystal-clear conversations.
• Enterprise-Grade Connectivity – Features HDMI, USB, and network ports for seamless integration with AV and IT infrastructure.
• Flexible Deployment Options – Designed for medium to large conference rooms with easy installation and centralized management.
• Robust Security & Management – Includes enterprise-grade security protocols and remote device monitoring capabilities.

The Detailed Specifications for the Crestron Flex UC-MX70-T:

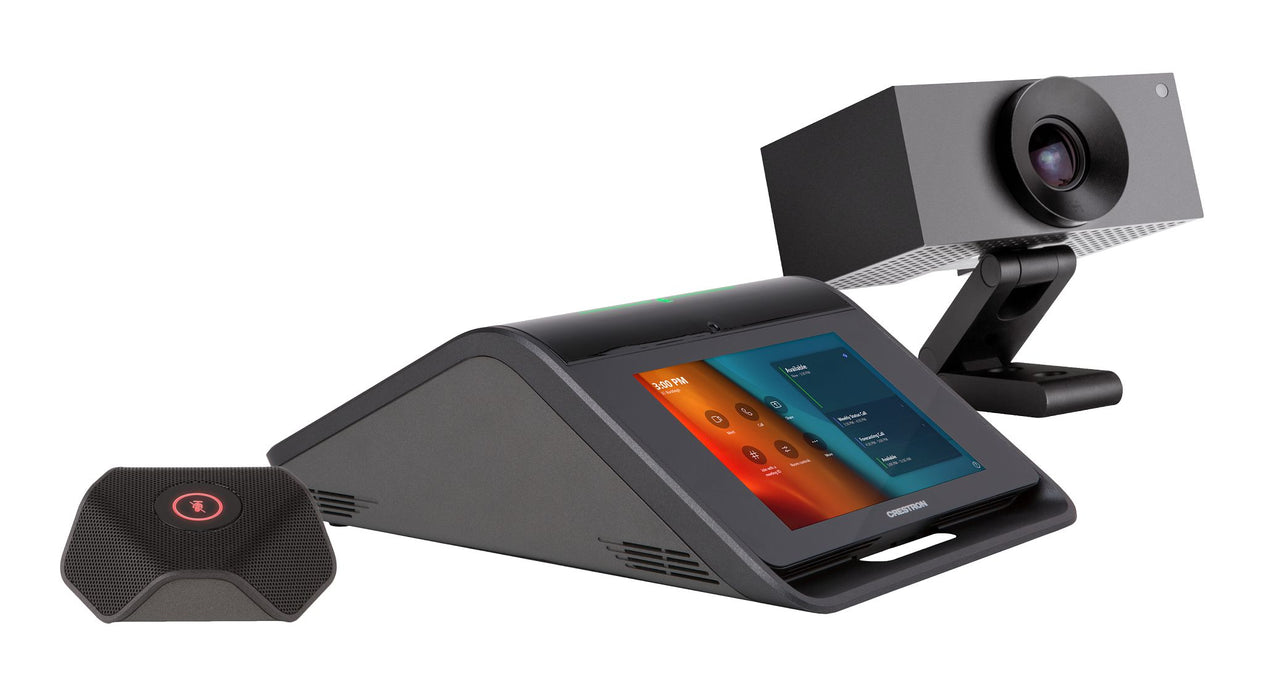

System Components

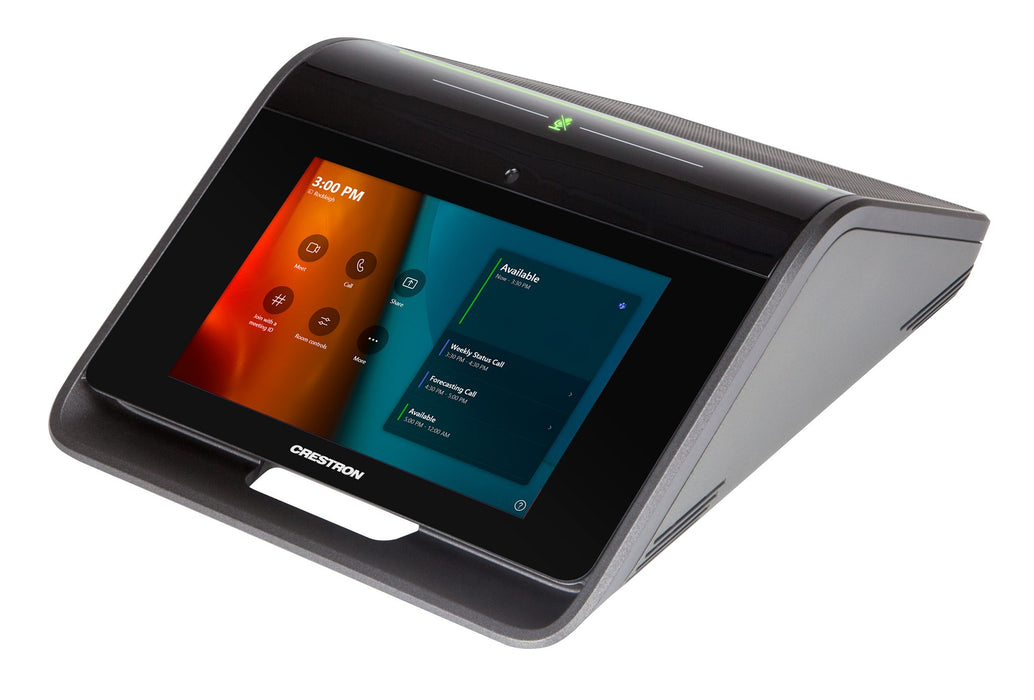

• Touchscreen Console: Crestron TS-1070 tabletop touch screen
• Camera: Crestron UC-CAM-L1, 4K resolution with auto-framing

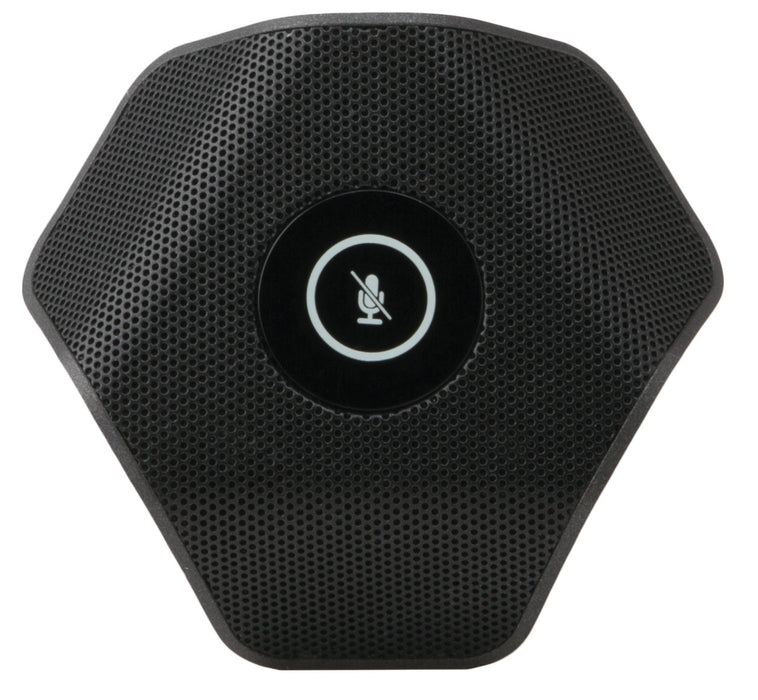

• Speakerphone: Crestron UC-SB1-CAM with beamforming microphone array and premium audio

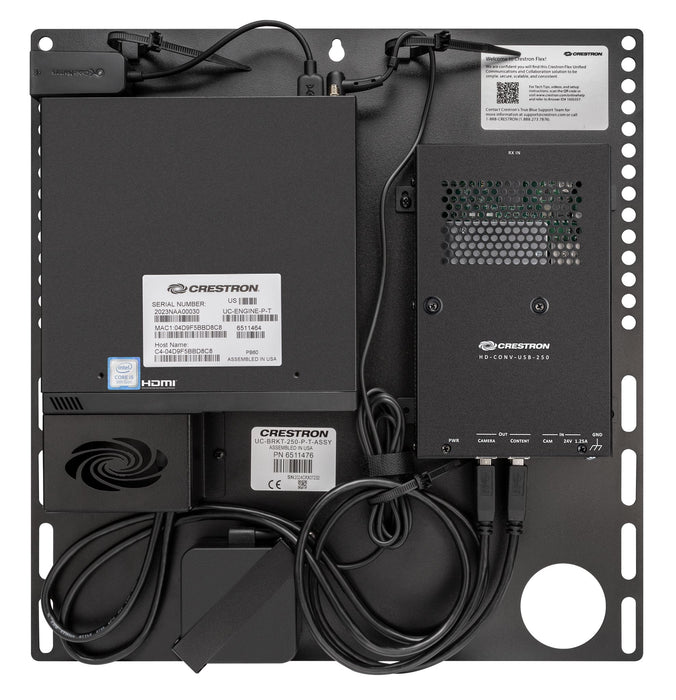

• Compute Engine: Microsoft Teams® certified Crestron UC Engine

Video & Display

• Supported Video Resolutions: Up to 4K UHD
• Camera Field of View: 150° wide-angle lens with auto-framing
• Dual Display Support: Compatible with dual HDMI displays for extended conferencing experience

Audio Features

• Microphone Pickup Range: Up to 15 feet
• Speaker Output: High-performance full-range speaker
• Noise Reduction & Echo Cancellation: Integrated DSP for optimal sound quality

Connectivity & Ports

• USB Ports: USB 3.0 & USB-C for peripherals
• HDMI Inputs/Outputs: Dual HDMI for display connections
• Ethernet: Gigabit Ethernet connectivity
• Bluetooth & Wi-Fi: Optional wireless connectivity (dependent on configuration)

Power & Environmental Requirements

• Power Supply: 100-240V AC, 50/60Hz
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 10% to 90% RH (non-condensing)

Security & Management

• Device Management: Crestron XiO Cloud® remote management compatible
• Security Features: AES-256 encryption, secure boot, and network security protocols
