The Crestron Flex UC-MMX30-T is an advanced tabletop video conferencing system designed to deliver a seamless and efficient collaboration experience within small meeting rooms. Optimized for Microsoft Teams Rooms, this all-in-one solution integrates high-quality audio, video, and a user-friendly interface to facilitate effective communication and content sharing. Its compact design ensures easy installation and operation, making it an ideal choice for modern workplaces seeking to enhance their unified communications infrastructure.

Here are the key features of the Crestron Flex UC-MMX30-T:

• Native Microsoft Teams Rooms Integration: Provides a consistent and intuitive user interface with one-touch meeting joins, ensuring a seamless collaboration experience.
• Bring Your Own Device (BYOD) Support: Allows users to connect their laptops to utilize their preferred UC conference platforms, offering flexibility for various meeting requirements.
• High-Definition Video Conferencing: Includes a collaboration camera with an ultra wide-angle 150° diagonal field of view, capturing the entire conference room in Full HD 1080p resolution.
• Premium Audio Quality: Features a large 7-inch touch screen with impressive audio capabilities, ensuring clear and effective communication during meetings.

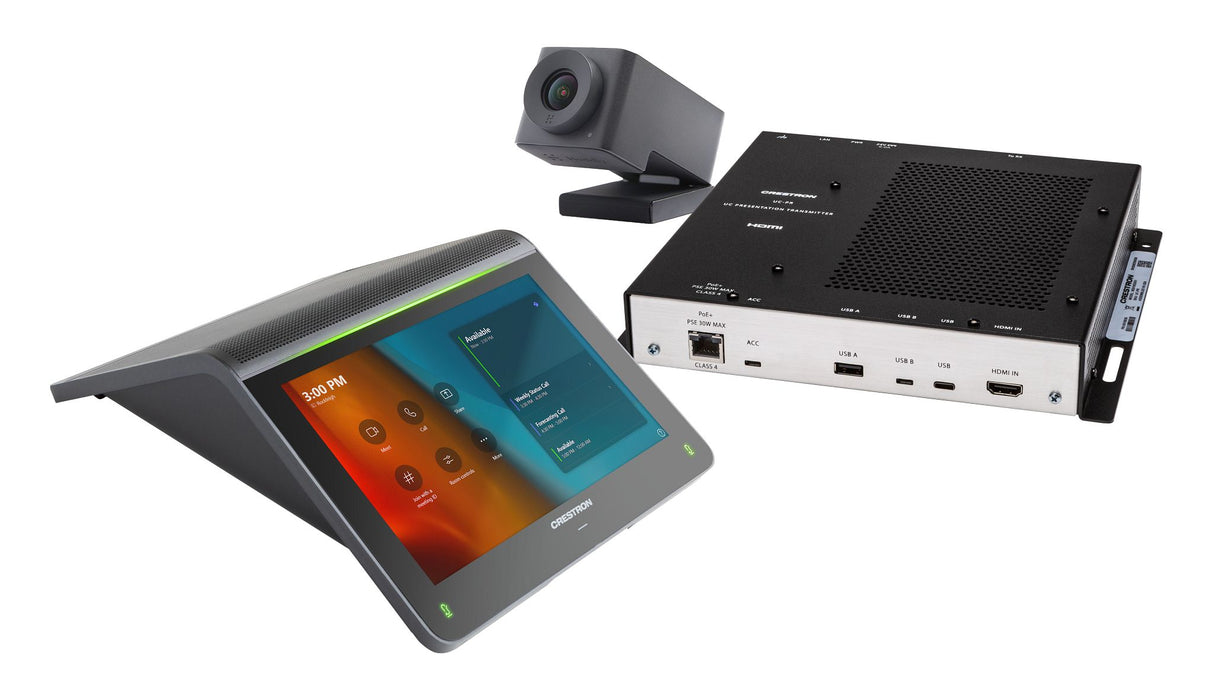

• Easy Installation and Management: Comes as a complete kit with a tabletop conference device, collaboration camera, UC bracket assembly, UC presentation transmitter, PoE injector, and necessary cables, simplifying the setup process.

Here are the detailed specifications for the Crestron Flex UC-MMX30-TB:

Tabletop Conferencing Device (UC-2-T-V):

• Display: 7-inch capacitive touch screen
• Resolution: 1280 x 800 pixels
• Microphones: Four omnidirectional microphones with a 20 ft (6 m) range
• Speakers: Full-range speaker with 7W output
• Connectivity: 1x RJ-45 10/100 Mbps Ethernet port, 1x USB 2.0 Type-A port

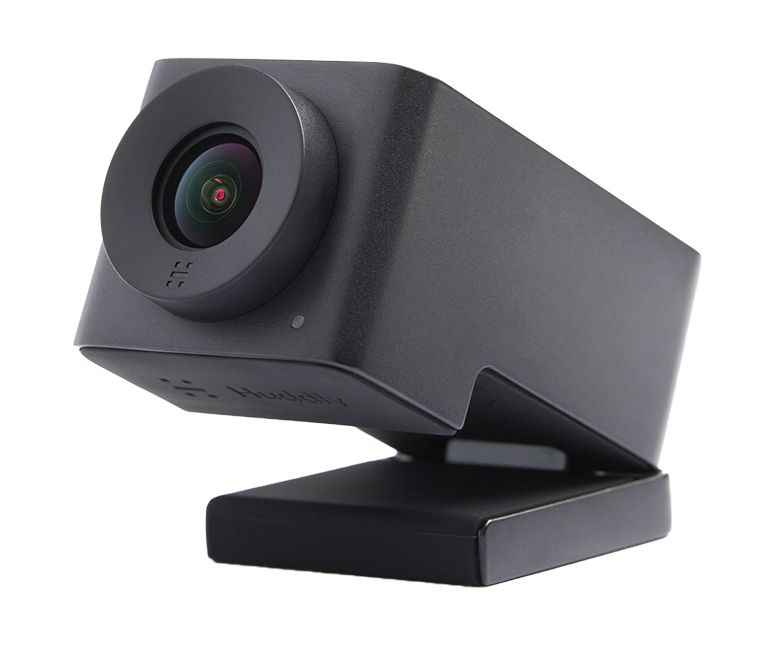

Collaboration Camera (CCS-CAM-USB-F-400):

• Resolution: Full HD 1080p
• Field of View: 150° diagonal, 120° horizontal, 90° vertical
• Sensor: 12 MP CMOS sensor
• Connectivity: USB 2.0

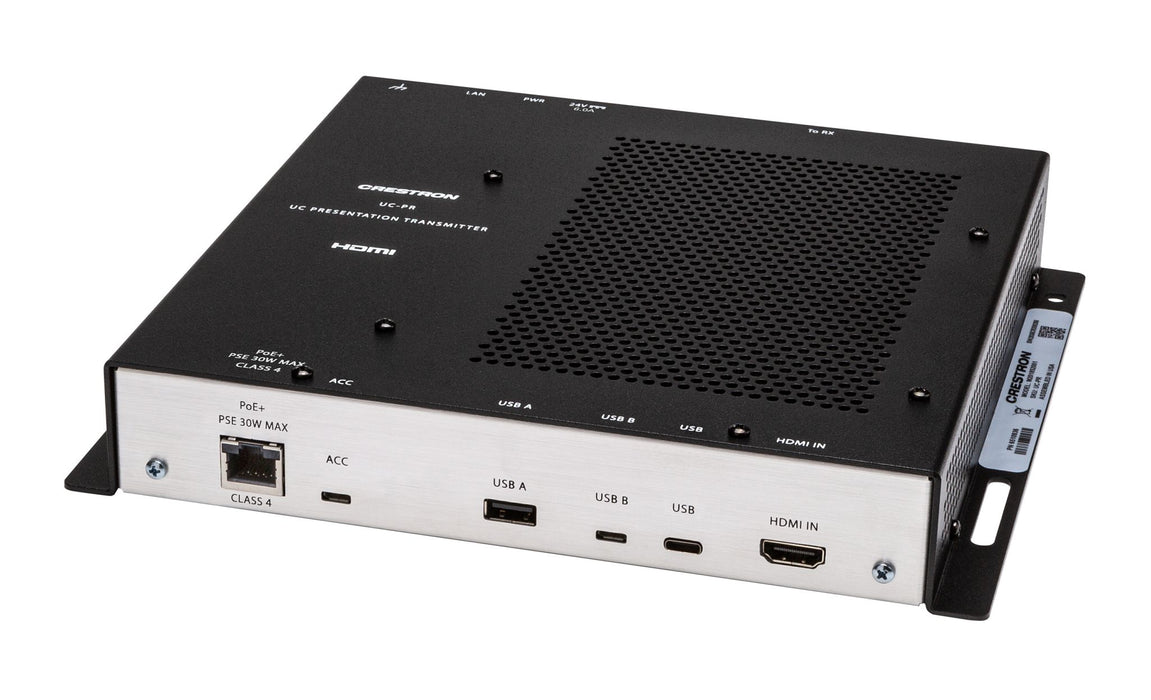

UC Presentation Transmitter (UC-PR):

• Video Input Signal Types: HDMI, DisplayPort 1.2 via USB Type-C port
• Video Output Signal Types: HDMI over CAT5
• Resolution: Supports up to 1080p
• Audio Input Signal Types: HDMI, DisplayPort 1.2 via USB Type-C port
• Audio Output Signal Types: USB

UC Bracket Assembly (UC-BRKT-260-P-T-ASSY):

• Dimensions: Width: 10.90 in. (277 mm), Height: 1.87 in. (48 mm), Depth: 8.00 in. (204 mm)
• Weight: 8.0 lb (3.7 kg)

Power Requirements:

• PoE Injector: IEEE 802.3at Type 2 compliant
• Power Consumption: 30W typical

Environmental:

• Operating Temperature: 32° to 95°F (0° to 35°C)
• Storage Temperature: -4° to 140°F (-20° to 60°C)
• Humidity: 5% to 90% RH (non-condensing)
